Enzyme Activity Assays for Biocatalyst Screening

A practical guide to designing screening assays that identify real enzyme hits, reject artifacts, and generate data suitable for route development.

Biocatalyst screening depends on the quality of the activity assay. A weak assay can hide useful enzymes, promote false positives, or exaggerate conversion that does not correspond to the desired product. A strong assay defines the target reaction, captures the correct signal, uses suitable controls, and produces data that can be compared across enzyme candidates, reaction conditions, and follow-up scales.

Assay design should be matched to the decision being made. Early screening may use a fast microplate readout to rank hundreds of candidates. Hit confirmation usually requires product-specific analysis by HPLC, UPLC, GC, LC-MS, GC-MS, NMR, or chiral chromatography. Process-oriented screening must then move beyond signal detection and evaluate substrate loading, selectivity, cofactor or donor requirements, side products, mass balance, and reproducibility.

Request Project Support Explore Biocatalysis Services

An enzyme activity assay for screening should answer a specific development question: which candidates are active, which are selective, which tolerate the real substrate and conditions, and which deserve confirmation under product-specific analysis.

Define the Screening Question Before Choosing an Assay

The most important assay decision is not the instrument. It is the purpose of the screen. A broad discovery screen may need speed and tolerance for crude enzyme preparations. A route feasibility screen may need product identity and stereochemical confirmation. A process optimization screen may need quantitative conversion, initial rate, mass balance, and impurity tracking. If the assay objective is not defined, the screen may produce attractive numbers that do not support a route decision.

For biocatalyst screening, an assay should distinguish true enzymatic transformation from substrate instability, background chemical reaction, signal interference, cofactor cycling without product formation, and matrix effects from lysate, cells, cosolvent, or formulation. The target molecule also matters. A chromogenic model substrate can be useful for enzyme-family profiling, but it may not predict activity on a pharmaceutical intermediate, natural product analog, polymeric substrate, lipid substrate, or poorly soluble synthetic compound.

Screening Objective	Most Useful Assay Output	Main Risk if the Assay Is Poorly Matched
Find active candidates from a large enzyme panel	Reliable hit/no-hit classification with suitable positive and negative controls.	Useful enzymes are missed because the substrate, pH, cofactor, or readout is incompatible.
Compare enzyme families for route feasibility	Product-specific conversion, selectivity, and side-product profile under comparable conditions.	A surrogate signal is mistaken for formation of the intended product.
Rank variants or homologs	Initial rate, normalized activity, expression-adjusted performance, and stability under screening conditions.	Apparent improvement reflects expression level, assay interference, or signal saturation rather than better catalysis.
Optimize reaction conditions	Quantitative conversion, time course, substrate recovery, enzyme stability, and mass balance.	Endpoint data hides early deactivation, product inhibition, or equilibrium limitation.
Support scale-up decision	Reproducible product formation at relevant substrate loading with impurity and workup information.	Microscale hits fail when substrate concentration, mixing, oxygen, cofactor, or workup changes.
Develop a routine QC assay	Defined unit, linear range, precision, acceptance criteria, and lot-to-lot comparability.	The assay is useful for discovery but not robust enough for release testing or supply support.

Selecting the Right Activity Assay Method

No single assay method is best for all biocatalyst screens. Colorimetric and fluorescent assays are fast, sensitive, and microplate-friendly, but they are often indirect. Chromatographic assays are slower but can confirm the intended product and side products. LC-MS and GC-MS are powerful for identity and trace-level detection but require careful calibration and control of ion suppression or derivatization artifacts. Coupled assays can make invisible reactions measurable, but the coupling enzyme must not become the hidden bottleneck.

Method selection should consider substrate structure, product detectability, expected reaction rate, sample matrix, cofactor chemistry, throughput, cost per data point, and whether stereochemistry must be measured. For early screening, a two-tier approach is often strongest: use a high-throughput readout to identify candidates, then confirm selected hits by a direct product assay.

Assay Method	Best Use in Biocatalyst Screening	Technical Watchpoint
Colorimetric assay	Rapid screening when product formation, coproduct formation, pH shift, or coupled readout gives visible absorbance.	Colored substrates, enzyme lysate, reducing agents, turbidity, and coupled-enzyme limitations can distort signal.
Fluorescent assay	High-sensitivity screening for low activity, small sample volume, or enzyme-family profiling.	Inner-filter effects, quenching, autofluorescence, photobleaching, and non-native substrates require controls.
Microplate absorbance at 340 nm	Monitoring NADH or NADPH consumption/formation in oxidoreductase screens.	Cofactor change does not always prove desired product formation; uncoupled turnover and substrate absorbance must be checked.
HPLC, UPLC, or GC	Confirming substrate depletion, product formation, conversion, and impurity profile for route-relevant substrates.	Method must separate substrate, product, isomers, donors, cofactors, internal standards, and side products.
LC-MS or GC-MS	Identifying unknown products, confirming molecular weight, and detecting low-level conversion.	Ion suppression, matrix effects, derivatization bias, and qualitative-only interpretation can mislead ranking.
Chiral HPLC, chiral GC, or SFC	Measuring ee or de for asymmetric reductions, aminations, resolutions, and stereoselective transformations.	High conversion is not useful if the wrong enantiomer, racemization, or unresolved stereoisomer is hidden.

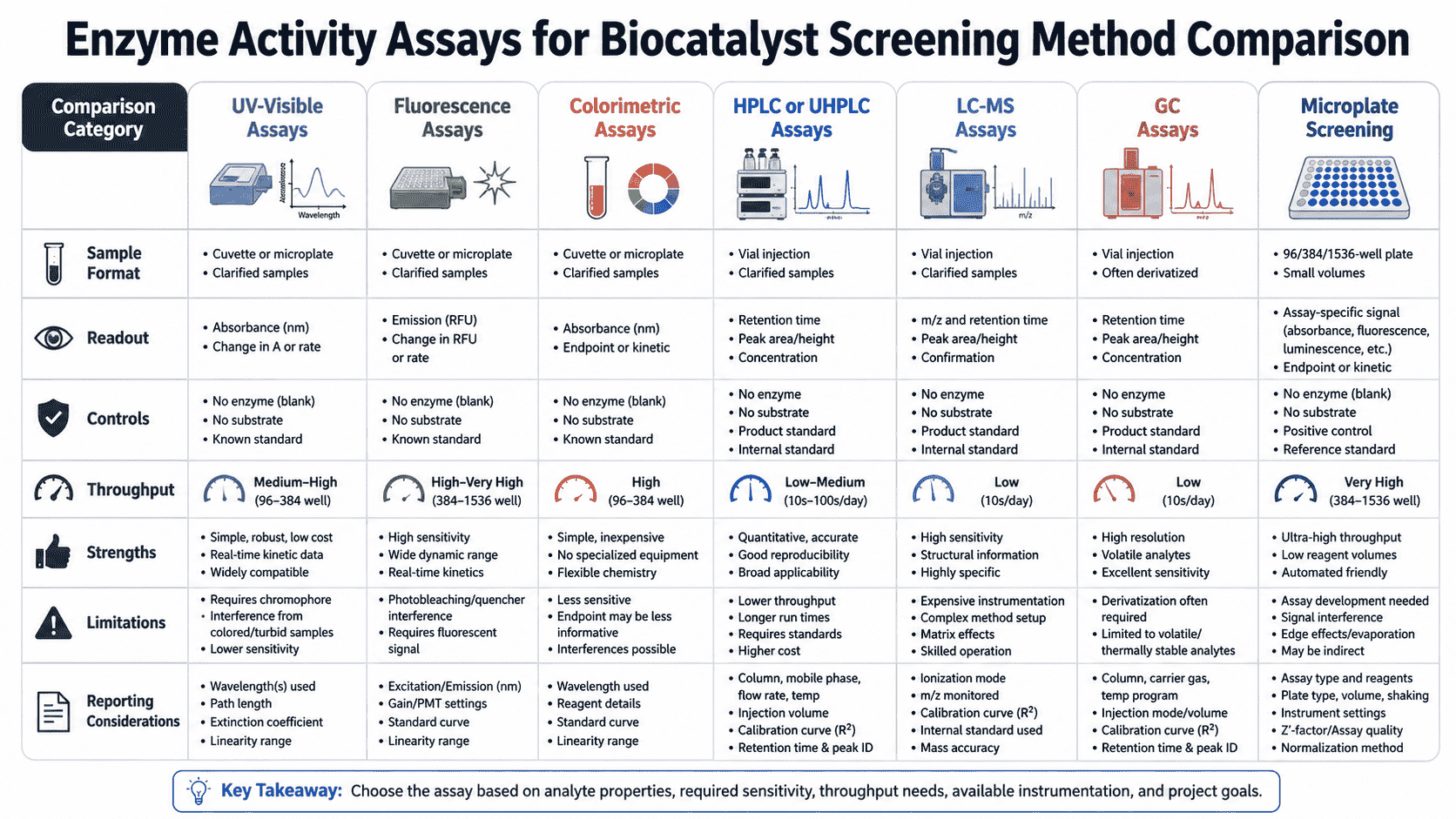

Method comparison for enzyme activity assays in biocatalyst screening including colorimetric, fluorescent, microplate, chromatographic, mass spectrometric, and chiral readouts.

Microplate Screening Design

Microplate assays are useful for screening many enzymes, variants, expression conditions, or reaction variables. They reduce reagent consumption and enable statistical comparison across plates. However, microplate data are sensitive to evaporation, edge effects, path length, mixing, precipitation, bubbles, oxygen transfer, fluorescence interference, and timing differences. A microplate assay should be validated for the reaction rather than assumed to be reliable because the plate reader produces a clean signal.

A good microplate screen defines plate layout, replicate strategy, positive controls, negative controls, reaction start method, quench method, incubation time, temperature, shaking, read interval, and acceptance criteria. For kinetic assays, the readout should stay in the initial-rate region. For endpoint assays, conversion should remain in a range where active and inactive candidates can be distinguished without saturating the signal. For crude lysates or whole-cell screens, protein content, cell density, background activity, and matrix color should be normalized or controlled.

Microplate Variable	Why It Matters	Recommended Control
Plate layout	Position effects can create apparent hit patterns unrelated to enzyme performance.	Distribute controls across the plate, avoid relying only on edge wells, and randomize key samples where possible.
Reaction timing	Sequential pipetting can create different reaction times for different wells.	Use consistent start and stop procedures, multichannel addition, or kinetic reads with timing correction.
Signal range	Saturated absorbance or fluorescence prevents meaningful ranking of active candidates.	Establish linear response with standards, calibrators, and enzyme dilution series before screening.
Sample matrix	Lysate, cells, buffers, salts, tags, detergents, or stabilizers can interfere with optical readouts.	Include matrix-matched blanks, no-substrate controls, and heat-inactivated enzyme controls.
Substrate solubility	Precipitation, adsorption, or uneven cosolvent distribution can create false low activity.	Inspect wells, test cosolvent tolerance, include substrate-only controls, and confirm hits by LC or GC.
Assay quality statistics	Large screens need a quick way to judge whether the plate can support hit selection.	Track signal-to-background, coefficient of variation, positive/negative separation, and Z-prime where appropriate.

Confirmatory Product Analysis After Primary Screening

Primary screening is designed to find candidates quickly. Confirmatory analysis is designed to protect the project from false decisions. The confirmation method should measure the actual substrate and product whenever possible. This is especially important for oxidoreductases where NAD(P)H changes can occur without productive product formation, for transaminases where donor and coproduct equilibria can mislead indirect assays, and for hydrolases where chromogenic model substrates may not predict activity on the target ester, amide, lipid, or polymer.

Confirmation should usually include a time course, a calibration curve or response factor, substrate recovery, product identity evidence, and side-product assessment. If the target reaction is stereoselective, chiral analysis should be included before the hit is advanced. If the assay uses a coupled readout, the direct analysis should test whether the coupling enzyme, cofactor, donor, or indicator chemistry affected the result.

When Direct Confirmation Is Essential

The primary readout is based on a surrogate substrate rather than the target molecule.
The assay tracks cofactor consumption, pH change, dye formation, or coupled enzyme signal.
The route requires ee, de, regioselectivity, or chemoselectivity information.
The sample contains crude lysate, whole cells, colored compounds, insoluble material, or reactive additives.

Confirmation Data to Capture

Substrate disappearance, product formation, mass balance, and identity confirmation.
Time-course behavior to distinguish initial activity from slow background reaction.
Side products, donor-derived products, cofactor-related species, and matrix carryover.
Reproducibility across replicate reactions and independent enzyme preparations.

Controls, Calibration, and Assay Validation

Controls are not optional in biocatalyst screening. They define what the signal means. At minimum, most screens need no-enzyme controls, no-substrate controls, positive controls, matrix blanks, and reagent blanks. Depending on the chemistry, heat-inactivated enzyme controls, no-cofactor controls, no-regeneration controls, substrate stability controls, and product stability controls may also be required. Controls should be run under the same conditions as the screen, not only during preliminary method setup.

Calibration should reflect the result being reported. If the screen reports activity units, the assay must define substrate, product, time, temperature, pH, enzyme amount, and linear range. If the screen reports conversion, product and substrate response factors should be known or estimated carefully. If the screen ranks hits by fluorescence or absorbance, standards and matrix-matched controls should show that the signal remains linear over the range used for selection.

Control or Validation Element	Purpose	Problem It Helps Detect
No-enzyme control	Measures background chemical conversion or spontaneous signal generation.	False positives caused by substrate instability, oxidation, hydrolysis, or indicator chemistry.
Heat-inactivated enzyme control	Tests whether the enzyme preparation matrix affects the readout independently of catalytic activity.	Signal from lysate components, cofactors, pigments, residual host enzymes, or formulation excipients.
Positive control enzyme	Confirms that substrate, reagents, cofactor, instrument, and incubation conditions support activity.	False negatives from missing cofactor, wrong pH, inactive substrate, or failed reagent preparation.
Standard curve or calibration set	Relates signal to product amount, substrate amount, or activity unit.	Signal saturation, nonlinear response, matrix suppression, or inaccurate conversion calculation.
Linearity check	Defines the time and enzyme amount range where rate is proportional to enzyme activity.	Underestimated activity from substrate depletion, product inhibition, enzyme instability, or readout saturation.
Orthogonal confirmation	Checks key hits with a method based on a different measurement principle.	Assay-specific artifacts that would otherwise be promoted as real enzyme hits.

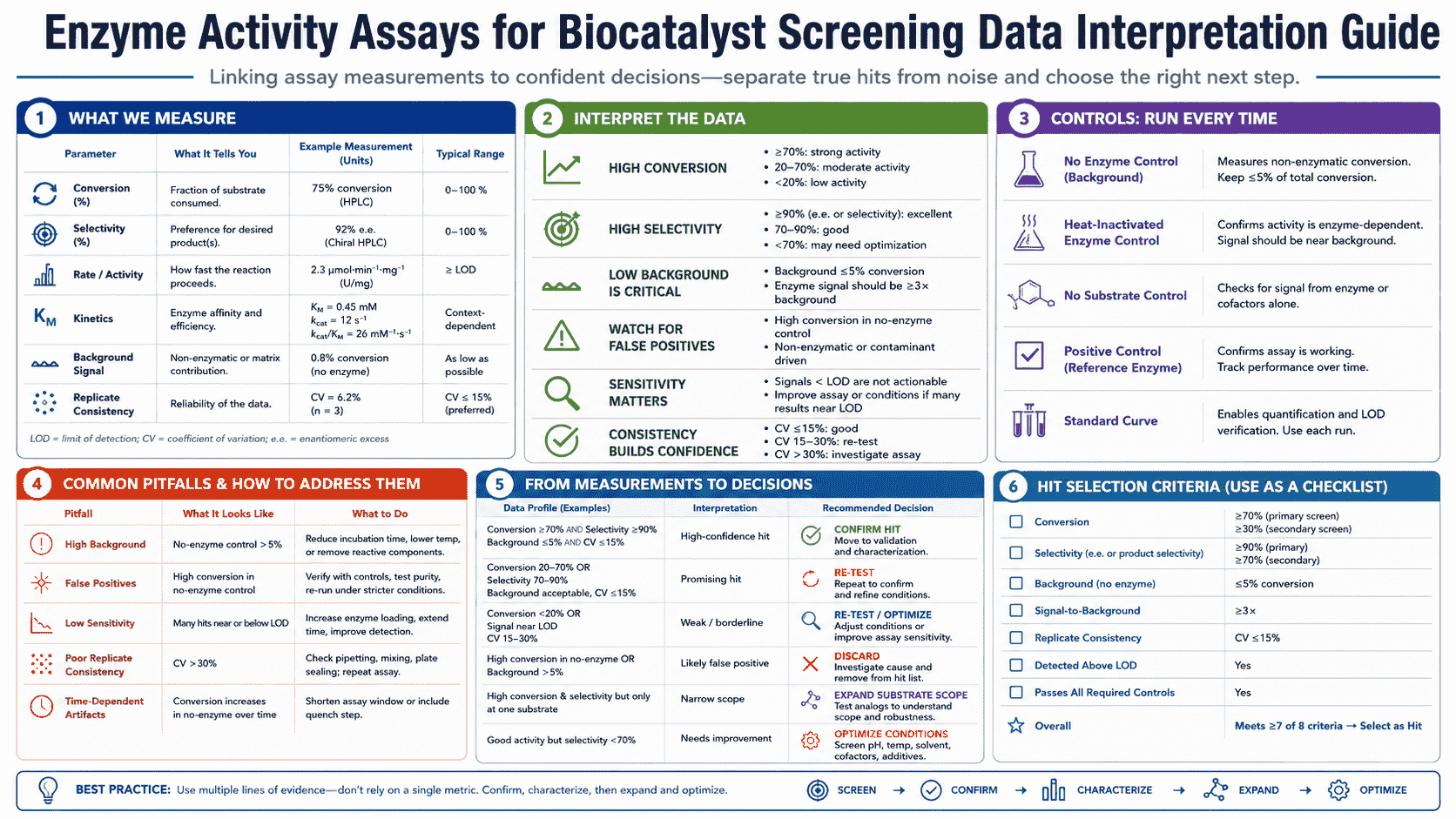

Data interpretation guide for enzyme activity assays in biocatalyst screening showing controls, calibration, hit triage, false positives, and confirmation workflow.

False Positives and False Negatives in Biocatalyst Screening

False positives waste follow-up resources and can send route development in the wrong direction. False negatives are just as damaging because they eliminate useful enzymes too early. Both are common when screening assays are transferred from model systems to real substrates without re-validation.

False positives often arise from colored or fluorescent compounds, spontaneous substrate hydrolysis, uncoupled cofactor consumption, endogenous activity in crude lysate, product-like impurities in substrate stocks, or coupled assay artifacts. False negatives often arise from poor substrate solubility, missing cofactors, wrong pH, product inhibition, low expression, enzyme instability, incompatible cosolvent, or assay quenching. The goal is not to remove every possible artifact at the first screen, but to design a workflow that catches them before route decisions are made.

Observed Screening Result	Possible Explanation	Follow-Up Test
Strong optical signal but no product by LC	Dye interference, uncoupled cofactor turnover, fluorescent impurity, or coupled assay side reaction.	Run direct product analysis, no-substrate control, no-coupling-enzyme control, and matrix-matched blank.
No signal for a candidate expected to be active	Missing cofactor, wrong substrate form, poor solubility, incorrect pH, or incompatible assay readout.	Test positive-control substrate, add required cofactors, adjust cosolvent, and confirm enzyme expression or loading.
High substrate loss but low product recovery	Adsorption, precipitation, degradation, extraction loss, or multiple side products.	Perform mass balance, product stability study, extraction recovery, and LC-MS impurity check.
Hit ranking changes between microplate and vial	Oxygen transfer, evaporation, mixing, path length, precipitation, or timing differences.	Repeat hits in scaled format with controlled mixing, time course, and direct product measurement.
High conversion but poor stereoselectivity	Wrong enzyme selectivity, nonselective background reaction, racemization, or unresolved chiral method.	Run chiral analysis, no-enzyme control, shorter time course, and opposite-selective enzyme screen.
Good activity in model substrate but none on target substrate	Model substrate does not represent steric, electronic, solubility, or binding requirements of the real substrate.	Screen target substrate directly or use a substrate panel that better maps the desired transformation.

Data Interpretation and Hit Triage

Screening data should be interpreted in tiers. The first tier asks whether a signal is above background and reproducible. The second tier asks whether the signal corresponds to the desired product. The third tier asks whether the hit has the selectivity, activity, stability, and compatibility needed for the intended project. This staged approach prevents early screens from becoming overloaded while still protecting the project from poor decisions.

Hit triage should consider activity relative to controls, product identity, selectivity, substrate loading, enzyme loading, reaction time, cofactor or donor demand, pH stability, solubility, and side products. A moderate-activity hit with excellent stereoselectivity and clean mass balance may be more valuable than a high-signal hit with unknown product identity. Likewise, a weak hit may be worth advancing if it has the desired selectivity and can support enzyme engineering.

Hit Triage Question	Data Needed	Decision Value
Is the hit real?	Replicates, controls, product-specific confirmation, and signal above background.	Separates true enzyme activity from assay artifacts and unstable substrates.
Is the desired product formed?	Authentic standard, LC-MS, GC-MS, NMR, or orthogonal product confirmation.	Prevents advancing enzymes that generate indirect signal or wrong products.
Is selectivity acceptable?	ee, de, regioselectivity, chemoselectivity, and side-product profile.	Identifies hits suitable for chiral or high-purity route development.
Is the assay response quantitative?	Calibration curve, linear range, internal standard, and matrix effect check.	Determines whether hits can be ranked numerically or only classified qualitatively.
Can the hit survive follow-up conditions?	Time course, pH/temperature tolerance, cosolvent tolerance, substrate loading, and enzyme stability.	Shows whether the hit can move from screening to optimization.
What is the next development step?	Comparison of activity, selectivity, scalability risk, assay confidence, and route relevance.	Guides condition optimization, broader panel screening, candidate mining, recombinant production, or enzyme engineering.

Request Details for Enzyme Activity Assays for Biocatalyst Screening

A clear inquiry helps Creative Enzymes recommend the right assay format, screening scope, confirmation method, and data package for a biocatalyst project.

Target reaction, substrate and product structures, enzyme family of interest, and expected transformation type.
Screening purpose: hit discovery, enzyme-family comparison, variant ranking, condition optimization, or QC method development.
Available substrate, product standard, chiral standard, cofactors, donors, acceptors, coupling enzymes, and known interferences.
Preferred throughput, sample format, enzyme format, plate or vial scale, and expected number of candidates or conditions.

Current assay method, raw data, controls, calibration approach, observed artifacts, and failed screening attempts.
Required data outputs such as activity unit, initial rate, conversion, ee/de, product identity, side products, or mass balance.
Matrix constraints such as lysate, whole cells, immobilized enzyme, cosolvent, detergent, colored substrate, insoluble substrate, or sample impurities.
Timeline, reporting format, confidentiality requirements, follow-up scale, and decision expected from the screening campaign.
