Protease Activity Assay

Protease Product Selection

Protease Activity Assay

A technical guide to measuring protease activity for product comparison, QC release, stability testing, detergent formulation, protein hydrolysis, custom enzyme production, and troubleshooting.

Protease activity assays measure peptide-bond hydrolysis under defined conditions. A useful method does more than generate a potency number: it defines substrate, pH, temperature, reaction time, sample preparation, detection chemistry, blank correction, calculation, linear range, and reporting unit so that protease products and lots can be compared responsibly.

This page explains how to choose protease assay formats, design controls, define an activity unit, handle complex sample matrices, interpret inconsistent data, and prepare useful information for Creative Enzymes assay support. It is written for customers comparing alkaline protease, Bacillus protease, subtilisin, detergent protease, proteases for protein hydrolysis, and other protease products.

Request Protease Assay Support View Assay Development Service

Protease activity is not an absolute number independent of method. A casein unit, azocasein unit, peptide-pNA unit, fluorescence unit, or degree-of-hydrolysis result can only be interpreted when the assay conditions and calculation are known.

Protease Activity Assay Overview

Proteases hydrolyze peptide bonds, but they differ in catalytic class, substrate preference, pH range, temperature tolerance, inhibitor sensitivity, and stability. A broad alkaline protease may rank highly on soluble casein but behave differently on collagen, keratin, plant protein, dried detergent stains, or a formulated product. A subtilisin-like enzyme may perform well in a peptide assay but require detergent matrix testing before it can be selected for a laundry formula. This is why assay purpose must be defined before method selection.

For early product screening, the assay may only need to rank candidates under standardized conditions. For QC release, the method must be repeatable enough to support lot acceptance. For stability testing, the method must distinguish true activity loss from assay interference caused by formulation components. For protein hydrolysis, activity may need to be interpreted with degree of hydrolysis, peptide size distribution, soluble nitrogen, viscosity, taste, or other endpoints.

A professional protease assay should make the method transparent. The report should state the substrate, buffer, pH, temperature, incubation time, sample dilution, stopping reagent, detection wavelength or instrument settings, calibration basis, blank correction, calculation, replicate number, and limitations. Without these details, activity values from different suppliers or lots can be misleading.

Practical principle Use a routine protease assay for potency and lot comparison, then add an application-specific test when the real substrate is insoluble, formulated, cooked, dried, fibrous, cross-linked, or chemically complex.

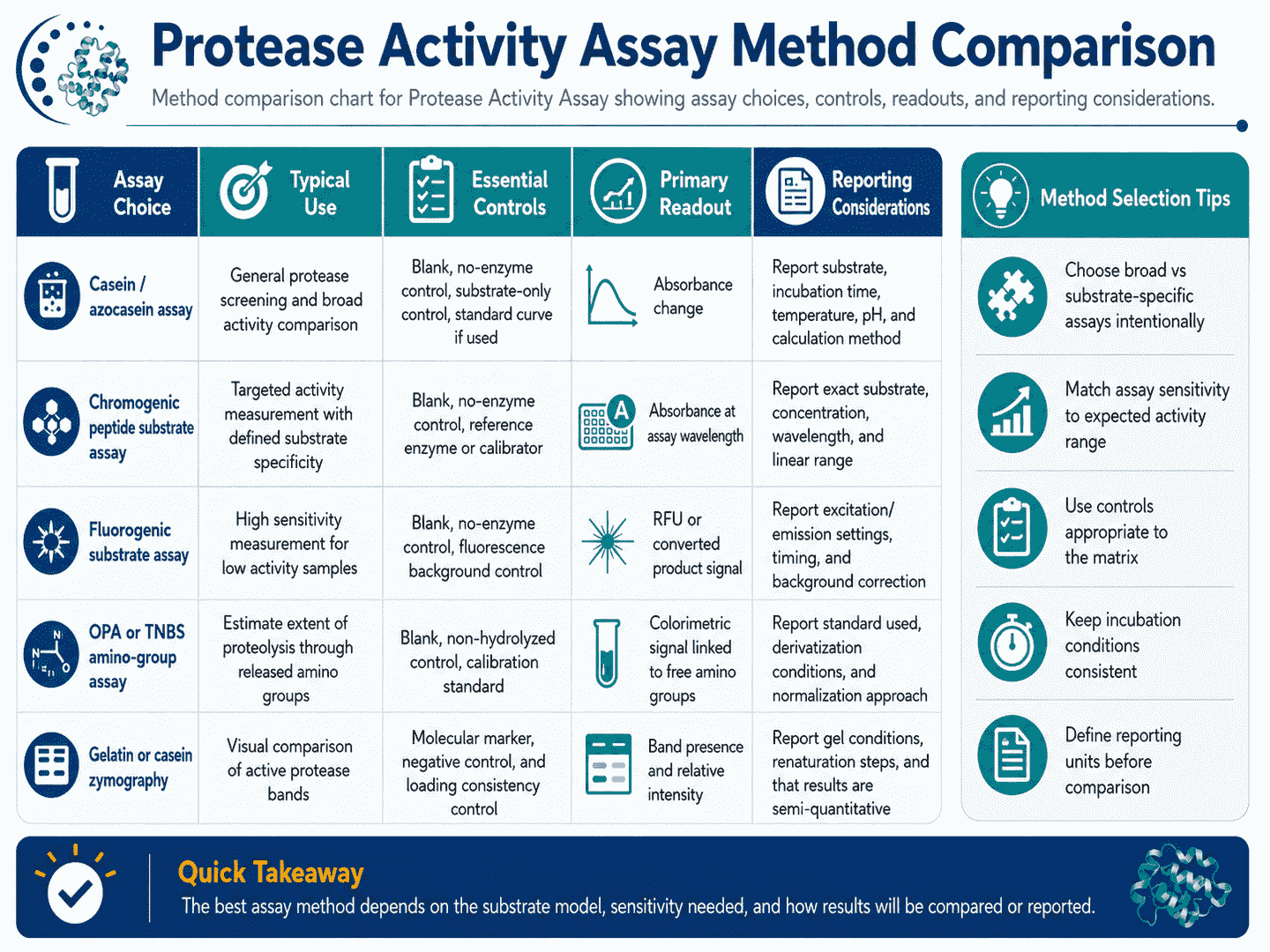

Method comparison chart for Protease Activity Assay showing assay choices, controls, readouts, and reporting considerations

Protease Activity Assay Formats

No single protease assay is best for every use. The right method depends on enzyme class, expected activity range, substrate relevance, sample matrix, required throughput, available equipment, and whether the result will support screening, release, stability, or application development.

Assay format Best use Important limitation
Casein digestion assay General protease potency testing using a protein substrate and soluble peptide or tyrosine-equivalent signal. Good for broad comparison, but soluble casein may not predict collagen, keratin, fabric stain, or process-substrate performance.
Azocasein or dyed protein assay Convenient colorimetric screening where digestion releases dye-labeled fragments. Dye labeling changes substrate behavior; colored or turbid samples can interfere with absorbance.
Synthetic peptide assay Kinetic or endpoint assay for proteases with known sequence preference, often using pNA or fluorogenic peptides. Small peptides may not represent folded, insoluble, or industrial protein substrates.
OPA, TNBS, or amino group assay Monitoring protein hydrolysis progress, free amino nitrogen, or degree of hydrolysis. Tracks amino group formation rather than protease activity alone; calibration and substrate composition matter.
pH-stat or titrimetric method Real-time hydrolysis monitoring when peptide-bond cleavage creates measurable acid-base change. Requires controlled pH and careful interpretation in buffered or complex matrices.
Application-specific assay Stain removal, protein-film cleaning, peptide profile, viscosity reduction, collagen modification, or customer-substrate testing. More predictive, but may need more sample, longer test time, and tighter process control.

Substrate Choice Determines What the Assay Measures

Protease activity is strongly substrate-dependent. A model protein substrate is useful for routine testing because it is reproducible and easier to standardize. A real application substrate is more predictive but often more variable. Many projects benefit from using both: a routine activity method for potency control and a secondary application test for practical relevance.

Soluble Protein Substrates

Casein, hemoglobin, gelatin, and similar substrates are useful for general activity comparison. They are easier to standardize but may not represent compact or insoluble proteins.

Dyed Protein Substrates

Azocasein or dye-labeled proteins can improve convenience and throughput. They are useful for screening but require controls for color and turbidity.

Synthetic Peptides

Peptide substrates can be sensitive and specific when cleavage preference is known. They are less reliable for broad industrial performance prediction.

Real Protein Materials

Collagen, keratin, plant protein, dairy protein, meat or fish substrate, and customer material can reveal application fit but need careful sample handling.

Detergent Stains

Protein stain panels connect enzyme activity to visible cleaning performance. They should be paired with formula and wash-condition controls.

Hydrolysis Samples

Protein hydrolysis projects may require DH, peptide profile, soluble nitrogen, viscosity, or sensory endpoints rather than a single activity number.

Recommended Assay Development Workflow

A protease assay should be developed in stages. The goal is to move from a measurable signal to a controlled method that can support the intended decision. Screening assays can be lighter than release methods, but both require enough controls to avoid false rankings.

  1. Define the decision

    Clarify whether the assay will compare products, release a lot, monitor stability, evaluate a formulation, follow protein hydrolysis, or troubleshoot a failed application test.

  2. Select substrate and readout

    Choose a substrate and detection chemistry that match the protease type, activity range, sample matrix, and data use.

  3. Build blank and control set

    Include substrate blank, enzyme blank, heat-inactivated sample, positive control, reference lot, and matrix controls as appropriate.

  4. Map linear range

    Test enzyme dilution, reaction time, substrate concentration, and detector response to identify conditions where signal is proportional to activity.

  5. Check precision and robustness

    Evaluate replicate variability and the effect of timing, temperature, pH, reagent age, sample preparation, and stopping step.

  6. Document reporting rules

    Define the unit, formula, dilution factors, sample basis, calibration, acceptance range, and limitations for future comparison.

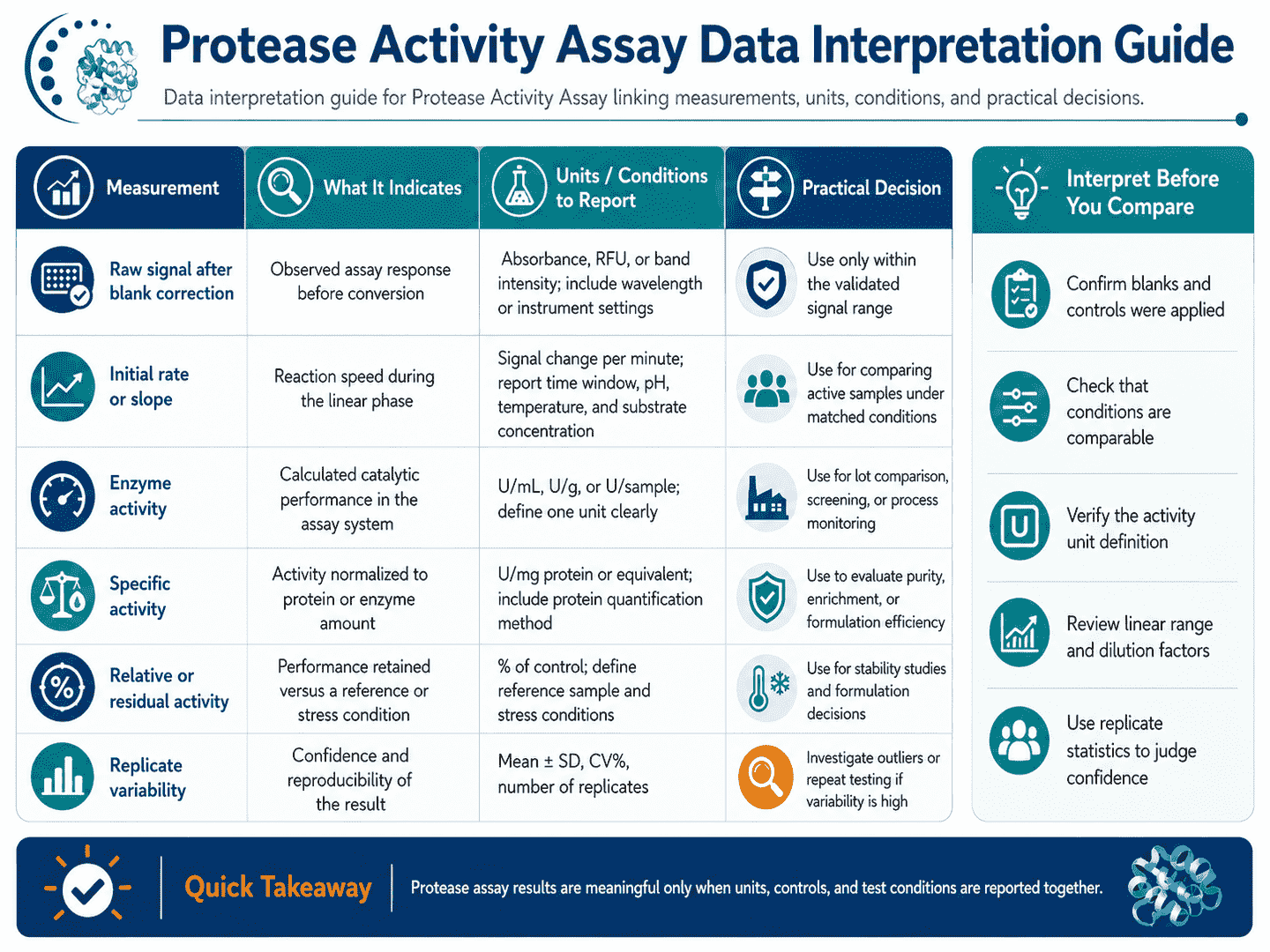

Data interpretation guide for Protease Activity Assay linking measurements, units, conditions, and practical decisions

Controls and Blanks for Protease Assays

Controls are essential because protease samples and substrates often create background signal. Crude enzyme preparations may contain colored compounds, salts, stabilizers, peptides, proteins, preservatives, or carrier materials. Protein substrates may self-degrade, precipitate, or react with color-development reagents. Formulated samples may contain surfactants, builders, oxidants, chelators, pigments, fats, peptides, or insoluble particles.

Core controls

  • Substrate blank to measure reagent and substrate background.
  • Enzyme blank to capture sample color, turbidity, peptides, or formulation signal.
  • Heat-inactivated enzyme control to identify non-catalytic matrix reactions.
  • Positive control protease to confirm substrate and reagent performance.
  • Reference lot for day-to-day method drift and lot comparison.

Special controls

  • Matrix-matched blank for detergent, hydrolysate, broth, or colored samples.
  • Inhibitor or class control when protease type needs confirmation.
  • Spike recovery test to detect inhibition or signal suppression.
  • Dilution linearity check for concentrated or complex samples.
  • Application control when routine activity does not predict performance.

Linearity, Range, and Activity Unit Definition

An activity assay should be run in a region where signal is proportional to enzyme amount and reaction time. If enzyme concentration is too high, substrate may become limiting, the detector may saturate, or insoluble fragments may affect recovery. If enzyme concentration is too low, the result may be too close to background. Linearity testing prevents both errors.

Linearity checks

  • Time course across short, medium, and long incubation periods.
  • Serial enzyme dilutions covering the expected activity range.
  • Substrate concentration check to avoid substrate limitation.
  • Detection range check for absorbance, fluorescence, titration, or calibration curve.
  • Stop reaction and sample timing consistency check.

Unit definition should state

  • Substrate identity and concentration.
  • Buffer, pH, temperature, and incubation time.
  • Measured product or signal and calibration basis.
  • Calculation formula and blank correction.
  • Reporting basis such as U/g, U/mL, U/mg protein, or retained activity percentage.

Sample Matrix Effects

Protease samples may be liquids, powders, granules, immobilized preparations, crude fermentation broths, purified enzymes, detergent concentrates, or protein hydrolysis process samples. Each form creates different preparation needs. The method should define how the sample is weighed, diluted, extracted, clarified, normalized, and reported.

Sample type Assay challenge Recommended handling
Liquid protease concentrate High activity, viscosity, preservative, salts, color, or stabilizers can affect pipetting and readout. Prepare serial dilutions in defined buffer and include enzyme blanks at matched dilution.
Protease powder Carrier, moisture, incomplete dissolution, and nonuniform sampling can change reported activity. Define sample weight, dissolution time, mixing, clarification, and dry-weight basis if needed.
Detergent enzyme granule Coating and particle size affect release during extraction or wash simulation. Use controlled extraction or application testing that reflects the detergent format.
Crude fermentation sample Host proteins, pigments, salts, cell debris, and side activities may contribute background. Clarify samples, run matrix blanks, and consider side-activity or purity checks.
Protein hydrolysis sample Peptides and hydrolysis products can interfere with activity detection. Use time-zero controls, heat-inactivated controls, or residual protease assays designed for hydrolysate matrices.
Immobilized protease Mass transfer, carrier background, particle settling, and recovery can affect apparent activity. Define mixing, wet or dry mass, packed volume, wash steps, and cycle-based reporting.

Data Interpretation and Common Failure Modes

Protease assay data should be interpreted with the method in mind. A weak signal can reflect low activity, but it can also reflect wrong pH, unsuitable substrate, inhibitor presence, over-dilution, missing stabilizing ion, incomplete extraction, or detector mismatch. A high signal may reflect true activity, but it can also come from background peptides, sample color, turbidity, nonspecific chemistry, or matrix reaction with the detection reagent.

No Measurable Activity

Check positive control, dilution, substrate quality, pH, temperature, inhibitor presence, stabilizing ions, and sample storage history.

High Blank Signal

Add matched blanks and consider sample cleanup, alternate wavelength, alternate substrate, or orthogonal detection format.

Poor Replicate Precision

Standardize timing, mixing, temperature, reagent equilibration, pipetting, granule extraction, and sample homogenization.

Nonlinear Dilution Response

Look for detector saturation, substrate limitation, inhibitor dilution, matrix interference, enzyme aggregation, or incomplete extraction.

Unexpected Ranking

Compare substrate relevance, assay pH, temperature, endpoint time, and whether candidate proteases prefer different cleavage sites.

Activity Does Not Predict Use

Add stain removal, degree of hydrolysis, peptide profile, residue cleaning, or real-substrate testing to connect assay data to performance.

Using Protease Assays for QC, Stability, and Product Selection

For QC release, the assay must distinguish acceptable lot variation from method noise. The method should define reference material, replicate number, acceptance range, sample preparation, calculation, and reporting basis. For stability studies, the assay should measure retained activity after storage, heat, pH exposure, surfactants, oxidants, chelators, freeze-thaw, or formulation aging. For product selection, the assay should rank candidates under conditions relevant to the customer's application.

Product Comparison

Compare protease candidates with the same substrate, pH, temperature, time, dilution strategy, and sample basis before ranking activity.

Lot Release

Use a documented method, reference lot, release range, replicate rule, and calculation template for recurring batches.

Stability Testing

Measure retained activity after realistic storage or formulation exposure and pair the result with appearance or application checks.

Formulation Compatibility

Test activity after exposure to detergents, salts, preservatives, oxidants, chelators, carriers, or companion enzymes.

Custom Production

Use the assay to monitor expression, fermentation, purification, formulation, final release, and lot-to-lot consistency.

Application Confirmation

Add real-substrate testing when model assays are not sufficient for the customer's final decision.

Information to Prepare Before Requesting Protease Assay Support

A clear request helps determine whether an existing assay can be used, a published method should be adapted, or a custom method is needed. The most useful information describes the protease sample, substrate or application, desired reporting unit, and decision that will be made from the data.

Sample and method details

  • Protease name, source, product form, storage condition, and expected activity range.
  • Sample matrix, such as purified enzyme, crude broth, liquid concentrate, powder, granule, detergent formula, or hydrolysate.
  • Existing assay method, activity unit, reference lot, benchmark product, or previous test data.
  • Known interfering components such as surfactants, oxidants, chelators, salts, colorants, fats, peptides, or preservatives.
  • Number of samples, sample quantity, replicate expectation, timeline, and documentation needs.

Application and reporting details

  • Assay purpose: product screening, QC release, stability study, formulation compatibility, hydrolysis monitoring, or troubleshooting.
  • Target substrate or application, including pH, temperature, contact time, additives, and performance goal.
  • Preferred reporting basis such as U/g, U/mL, U/mg protein, retained activity percentage, DH, or application endpoint.
  • Whether the assay needs to support catalog product selection, custom production, bulk supply, or method transfer.
  • Any acceptance criteria, internal quality requirements, or customer-specific method constraints.

Protease Activity Assay FAQs

  • Q: Can protease activity values from different suppliers be compared directly?

    A: Only when the assay method and unit definition are equivalent. Substrate, pH, temperature, incubation time, stopping reagent, detection chemistry, calibration, and calculation can all change the reported activity.

  • Q: Which substrate is best for a general protease activity assay?

    A: Casein and azocasein are common general substrates, but the best choice depends on the project. Detergent, hydrolysis, collagen, keratin, and specialty applications may require a second application-relevant substrate.

  • Q: Why is the linear range important?

    A: Activity calculations assume that signal changes proportionally with enzyme amount and time. Outside the linear range, substrate depletion, product interference, detector saturation, or background noise can produce misleading values.

  • Q: How should protease stability in a detergent or formulation be tested?

    A: Measure retained activity after exposure to the complete or near-complete formulation, then confirm performance with a relevant application test if possible. Matched blanks are important because surfactants, oxidants, colorants, and turbidity can interfere with assay readout.

  • Q: Can a protease assay measure degree of hydrolysis?

    A: Some methods, such as OPA, TNBS, pH-stat, and soluble nitrogen assays, can monitor hydrolysis progress. They do not replace a protease activity assay unless the method and endpoint are defined for that purpose.

  • Q: What should be included in a protease activity assay report?

    A: A useful report should include sample identity, substrate, buffer, pH, temperature, reaction time, dilution, controls, calibration, calculation, activity unit, replicate data, and limitations related to sample matrix or method specificity.
