Pulp and Paper Laccase

Oxidoreductase Enzyme Resources

Pulp and Paper Laccase

A technical guide to selecting laccase products for pulp bleaching support, lignin modification, fiber functionalization, pitch control, effluent color reduction, and custom enzyme supply for pulp and paper applications.

Laccase is a multicopper oxidase that oxidizes phenolic structures while reducing oxygen to water. In pulp and paper workflows, laccase is usually evaluated for lignin modification, bleaching sequence support, chromophore reduction, resin or pitch modification, fiber surface functionalization, and treatment of colored or phenolic effluents. For some targets, a laccase-mediator system is required to extend oxidation beyond easily accessible phenolic groups.

Choosing a pulp and paper laccase is not the same as choosing the enzyme with the highest ABTS activity. Performance depends on pulp type, residual lignin chemistry, kappa number, process pH, temperature, pulp consistency, oxygen transfer, mediator selection, process liquor composition, metal ions, surfactants, carryover chemicals, retention time, and the final performance metric. A useful screening design should evaluate both enzyme activity and pulp-specific outcomes such as brightness, kappa reduction, viscosity retention, strength properties, color, extractives, COD, and downstream compatibility.

Request Pulp Laccase Support View Laccase Products

Pulp and paper laccase projects should be evaluated by pulp performance, not by enzyme activity alone. The same laccase may show strong activity on ABTS but weak impact on kraft pulp brightness, or it may modify effluent color without improving fiber properties. The best method is to screen under realistic process conditions and measure the endpoint that matters for the mill or development program.

Pulp and Paper Laccase Product Overview

Laccases have been investigated in pulp and paper because they can oxidize lignin-related phenolic groups and generate radicals that support lignin modification, chromophore transformation, or grafting chemistry. When the target substrate is difficult to oxidize directly, a laccase-mediator system can expand the reaction scope. However, mediator choice changes cost, safety, residue profile, downstream treatment, and paper-property risk.

In chemical pulp bleaching, laccase may be evaluated as a pre-treatment or supporting step to reduce downstream bleaching chemical demand or modify residual lignin before peroxide, oxygen, chlorine dioxide, or other stages. In mechanical or high-yield pulp, the goal may be color management, brightness stability, or pitch and extractives modification rather than delignification. In recycled fiber or effluent treatment, the target may be color bodies, phenolic contaminants, odor-related compounds, or process-water quality.

Creative Enzymes can support laccase product selection, pulp-specific activity testing, laccase-mediator screening, matrix compatibility testing, activity assay development, custom formulation, liquid or powder product discussion, activity-defined lots, and custom or bulk enzyme supply. Projects may range from bench-scale pulp screening to pilot process design and recurring procurement planning.

Selection principle

Start with the pulp stream and process endpoint. A laccase for effluent color reduction, kraft pulp biobleaching support, pitch control, and fiber grafting may require different enzyme properties, mediator choices, and QC tests.

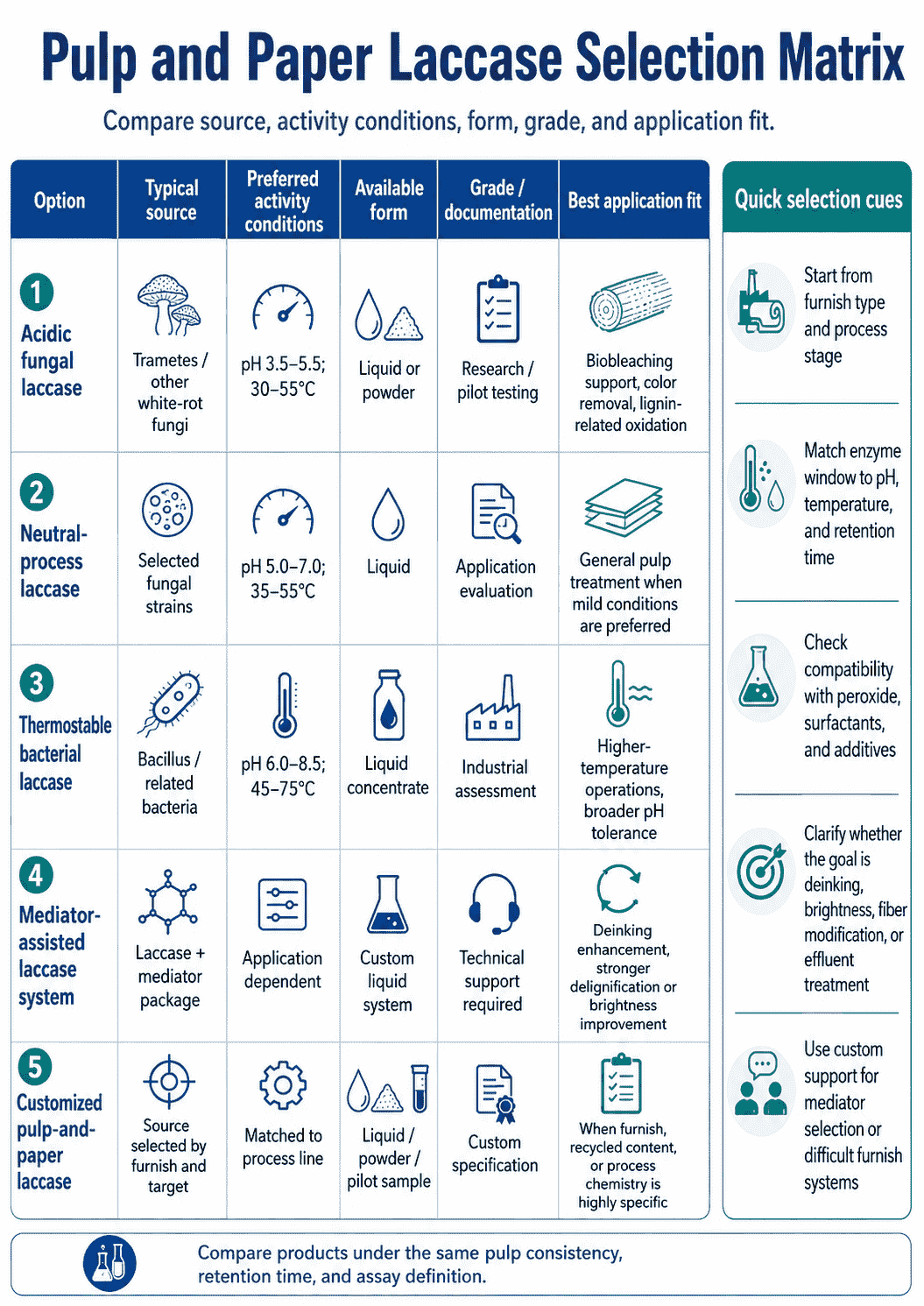

Selection matrix for Pulp and Paper Laccase comparing source, activity conditions, form, grade, and application fit

Common Pulp and Paper Applications

Biobleaching Support

Laccase can be evaluated as a pre-treatment to modify residual lignin and support downstream bleaching. Success is measured through kappa number, brightness, chemical savings, viscosity retention, and pulp strength.

Lignin Modification

Laccase may change phenolic hydroxyl content, chromophores, molecular weight, or reactivity of residual lignin. Product analysis should distinguish oxidation, coupling, and solubilization.

Fiber Functionalization

Laccase-mediated radical chemistry can support grafting, surface activation, wet-strength concepts, or biopolymer coupling when paper-property targets are clearly defined.

Pitch and Extractives Control

Laccase may modify phenolic extractives and resin-related components, but performance depends on wood species, extractive composition, surfactants, and process water chemistry.

Effluent Color Reduction

Laccase can transform colored phenolic compounds in mill effluents. Color loss should be paired with COD, toxicity, sludge, and downstream treatment compatibility checks.

Research and Assay Development

Defined laccase products support comparison of pulp substrates, mediators, process windows, and analytical endpoints before pilot or mill-scale evaluation.

Pulp Type and Matrix Compatibility

Laccase performance can shift dramatically with pulp type and process chemistry. Screening should use a pulp stream that represents the intended application rather than relying only on model substrates.

Pulp or matrix Technical consideration Evaluation focus
Kraft pulp Residual lignin structure, kappa number, prior oxygen delignification, and bleaching sequence strongly affect laccase response. Measure kappa, brightness, viscosity, strength, and downstream bleaching chemical demand.
Mechanical or high-yield pulp High lignin content can support oxidation but may also increase risk of color reversion or radical coupling. Track brightness, yellowing, chromophore change, fiber properties, and extractive behavior.
Recycled fiber Ink residues, fillers, sizing agents, adhesives, surfactants, and process water can inhibit enzyme or distort endpoints. Include matrix controls and evaluate drainage, stickies, color, odor, and paper-property impacts.
Non-wood pulp Silica, extractives, hemicellulose profile, and lignin chemistry may differ from wood pulp. Test application-specific pH, consistency, mediator tolerance, and final sheet properties.
Pulp mill effluent Contains salts, metals, residual oxidants, surfactants, dissolved organics, color bodies, and variable pH. Use color, COD, toxicity, residual enzyme, and downstream treatment compatibility metrics.
Model lignin or dye system Useful for rapid comparison, but may not reproduce fiber accessibility or process water chemistry. Use for screening, then confirm hits with real pulp, process liquor, or effluent.

Laccase-Mediator Systems in Pulp Applications

A laccase-mediator system, or LMS, can extend oxidation to substrates that are difficult for laccase alone. In pulp and paper use, the mediator decision must balance performance with cost, safety, compatibility, and downstream impact.

When LMS May Help

  • Residual lignin is poorly modified by direct laccase treatment.
  • The target is kappa reduction, improved bleachability, or deeper chromophore transformation.
  • The process can accommodate mediator cost, residue control, and downstream removal or neutralization.
  • Bench data show pulp-specific benefit without unacceptable viscosity or strength loss.

When LMS Needs Caution

  • Mediator residues are incompatible with paper grade, effluent requirements, worker safety, or customer specifications.
  • The mediator causes excess fiber damage, brightness instability, odor, color formation, or downstream chemical demand.
  • The benefit appears only in model assays and not in real pulp under realistic consistency and retention time.
  • The mill requires a simple additive package without new residue or wastewater burden.

Process Conditions That Control Laccase Performance

Process factor Why it matters Control recommendation
pH Laccase activity and substrate oxidation are pH-dependent, while pulp process streams may be neutral or alkaline. Screen within the practical mill pH range and avoid assuming acidic ABTS assay behavior predicts pulp performance.
Temperature Higher temperature can improve reaction rate but reduce enzyme half-life or change pulp chemistry. Evaluate both initial performance and residual activity after the planned retention time.
Pulp consistency High consistency affects mixing, oxygen transfer, enzyme distribution, and sampling reproducibility. Screen at realistic consistency or build a scale-up bridge from dilute bench testing to pilot conditions.
Oxygen availability Laccase uses oxygen as terminal electron acceptor, and poor oxygen transfer can limit oxidation. Define vessel headspace, agitation, aeration, pulp consistency, and dissolved oxygen assumptions.
Carryover chemicals Residual peroxide, chlorine dioxide byproducts, sulfite, chelants, surfactants, metals, or defoamers may inhibit enzyme or alter chemistry. Use process-water and pulp-matrix controls during screening.
Retention time Enzymatic benefit must occur within a practical process window before downstream stages. Build time-course data for both activity and pulp metrics rather than using one endpoint time only.

How to Select a Pulp and Paper Laccase Product

Technical fit

  • Define pulp type, kappa number, brightness, lignin content, extractives profile, process stage, and downstream sequence.
  • Specify pH, temperature, consistency, retention time, oxygen conditions, process liquor, and carryover chemicals.
  • Decide whether direct laccase oxidation is enough or whether mediator screening is justified.
  • Measure pulp outcomes such as kappa reduction, brightness, viscosity, strength, color, extractives, COD, or effluent toxicity.
  • Include enzyme-only, mediator-only, matrix, and untreated pulp controls when interpreting results.

Product fit

  • Choose liquid, powder, lyophilized, stabilized, recombinant, high-redox, alkaline-tolerant, thermostable, or custom-formulated laccase according to the process window.
  • Review activity unit definition, assay substrate, pH profile, temperature stability, storage conditions, and lot release method.
  • Define documentation needs such as COA, SDS, source statement, microbial limits, allergen statement, and custom quality requirements.
  • Plan packaging, dosing, storage, shelf life, annual forecast, and lot consistency if the project may move to pilot or production.

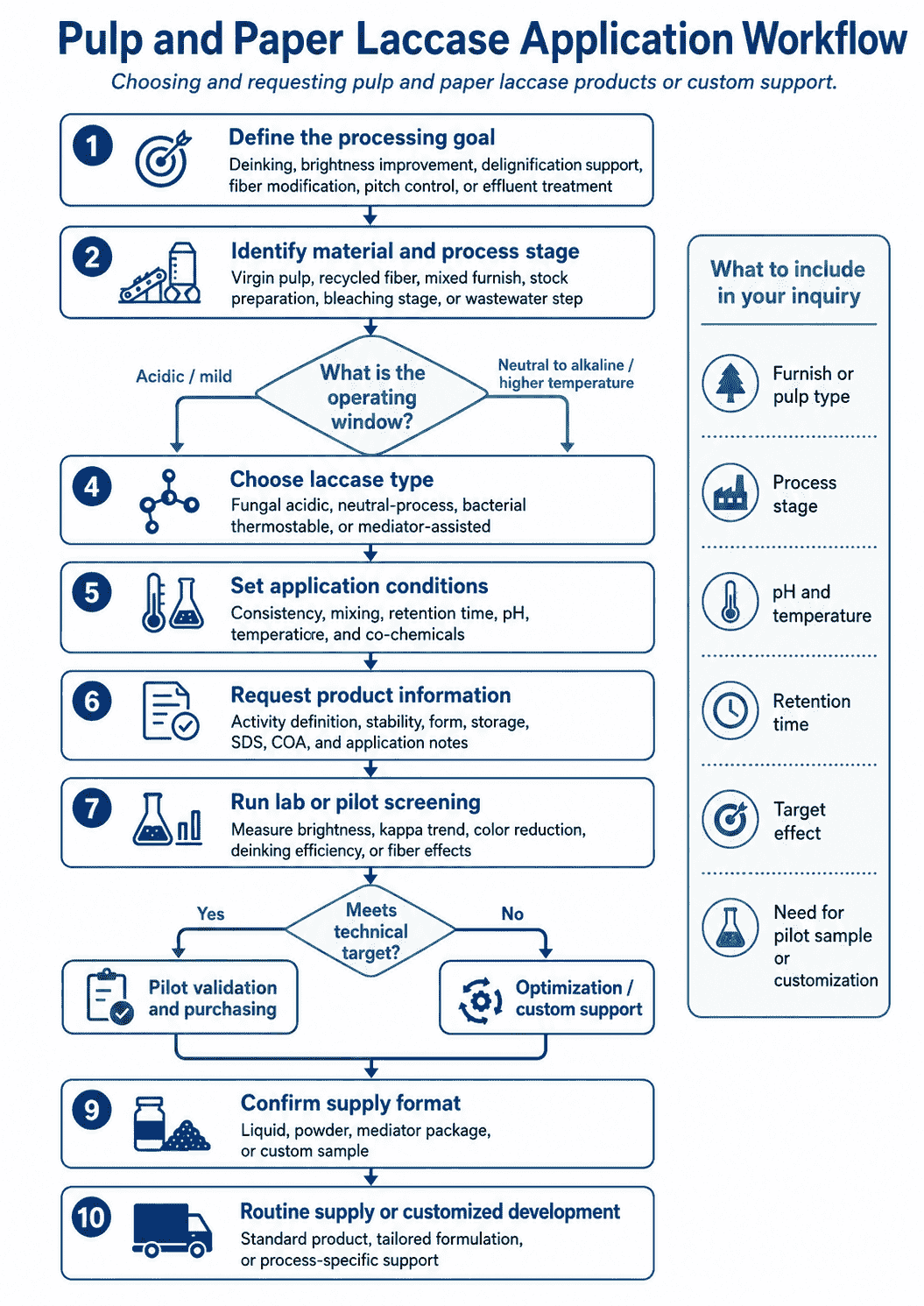

Application workflow for choosing and requesting Pulp and Paper Laccase products or custom support

Assays and Pulp Performance Metrics

Laccase activity assays are useful for enzyme quality control, but pulp projects need pulp-specific performance metrics. A practical evaluation pairs enzyme activity with paper, pulp, or effluent measurements.

Metric Best use Interpretation note
ABTS or phenolic activity assay Confirming laccase activity and comparing enzyme lots under defined conditions. Useful for QC, but not a standalone predictor of pulp bleaching or fiber performance.
Kappa number Monitoring residual lignin modification or delignification support in chemical pulp workflows. Interpret together with viscosity and strength because aggressive oxidation may damage carbohydrates.
Brightness and color Evaluating bleaching support, chromophore reduction, color reversion, or effluent treatment. Brightness gain should be checked after downstream stages and aging when color stability matters.
Pulp viscosity and DP Assessing cellulose preservation during oxidative treatment. Important for avoiding apparent bleaching benefit at the cost of fiber degradation.
Paper strength properties Checking tensile, tear, burst, wet strength, bonding, or drainage effects after enzyme treatment. Application value depends on final sheet performance, not only chemical indicators.
Effluent COD, color, and toxicity Evaluating process-water or wastewater treatment compatibility. Color removal should not be assumed to mean lower COD or reduced toxicity without measurement.

Recommended Pulp Laccase Evaluation Workflow

  1. Define the pulp stream

    Record pulp type, process stage, kappa number, brightness, consistency, process liquor, carryover chemicals, and target downstream sequence.

  2. Set the performance endpoint

    Clarify whether the goal is chemical savings, brightness gain, kappa reduction, pitch control, color removal, fiber modification, or effluent treatment.

  3. Shortlist laccase options

    Compare laccases by pH range, temperature stability, redox profile, product form, activity definition, formulation, and supply route.

  4. Evaluate direct and mediator-assisted conditions

    Screen no-mediator and selected mediator systems with proper untreated, enzyme-only, mediator-only, and matrix controls.

  5. Measure pulp-specific results

    Track kappa, brightness, viscosity, strength, extractives, COD, color, toxicity, or other endpoints that define success.

  6. Translate to product supply

    Define enzyme form, activity unit, package size, dosing basis, documentation, storage, stability, and pilot or bulk supply needs.

Quality Checks and Professional Cautions

ABTS Activity Is Not Enough

A high ABTS unit value does not guarantee kappa reduction, brightness gain, or effluent color removal. Use pulp-specific tests before product selection.

Mediators Can Add Risk

HBT, TEMPO, violuric acid, ABTS-type mediators, and natural mediators can differ in cost, safety, residue, color, and wastewater impact.

Fiber Damage Must Be Checked

Oxidation that improves color may reduce viscosity or strength if conditions are too aggressive or if mediator chemistry is poorly controlled.

Process Carryover Matters

Residual peroxide, chlorine dioxide chemistry, sulfite, chelants, metals, surfactants, and defoamers can change enzyme performance.

Oxygen Transfer Can Limit Scale-Up

Bench reactions with strong mixing may not translate directly to high-consistency pulp systems unless oxygen transfer and mixing are considered.

Lot Consistency Needs a QC Plan

Production use should define activity assay, pulp performance check, storage stability, acceptance criteria, and documentation before recurring supply.

Product Form, Custom Formulation, and Bulk Supply

Creative Enzymes can help align laccase product form and supply planning with bench testing, pilot trials, or recurring pulp and paper applications.

Catalog Product Supply

Evaluation quantities for pulp treatment screening, mediator comparison, effluent color testing, or assay development.

Activity-Defined Lot

Lots released against a defined laccase activity method, with optional pulp-specific performance checks when required.

Custom Formulation

Review of liquid or powder format, carrier, stabilizer, preservative, concentration, storage, shipping, and dosing compatibility.

Mediator Screening Support

Technical discussion of mediator choice, dosage, residue constraints, and direct versus mediator-assisted treatment design.

Custom Production

Recombinant or custom enzyme production discussion when a defined source, pH range, stability profile, or long-term supply path is needed.

Bulk and Recurring Supply

Planning for pilot quantity, production quantity, package size, annual forecast, lot reservation, documentation, and procurement schedule.

Information Needed for a Pulp and Paper Laccase Inquiry

A detailed inquiry helps determine whether catalog laccase screening, mediator evaluation, custom formulation, assay development, or custom production is the right next step.

Pulp and process details

  • Pulp type, wood or fiber source, process stage, kappa number, brightness, consistency, process liquor, and downstream bleaching sequence.
  • Target endpoint such as kappa reduction, brightness gain, chemical savings, pitch control, fiber functionalization, effluent color reduction, or COD impact.
  • Reaction pH, temperature, retention time, oxygen exposure, agitation, pulp consistency, and process-water composition.
  • Carryover chemicals, metals, chelators, residual oxidants, surfactants, defoamers, fillers, dyes, or other additives.
  • Available analytical methods and benchmarks, including ABTS activity, kappa, brightness, viscosity, strength, COD, color, or toxicity testing.

Product and supply details

  • Preferred laccase source, product form, pH/temperature range, mediator restrictions, formulation needs, and acceptable side activities.
  • Evaluation quantity, pilot trial quantity, annual forecast, dosing basis, packaging, storage, shipping, and shelf-life expectations.
  • Required documents such as COA, SDS, source statement, assay method summary, microbial limits, allergen statement, or custom quality forms.
  • Need for custom assay, mediator screening, pulp-specific testing, formulation, recombinant production, or recurring bulk supply.

Pulp and Paper Laccase FAQs

  • Q: Can laccase replace conventional pulp bleaching chemicals?

    A: Laccase is usually evaluated as a supporting or pretreatment technology rather than a universal replacement. Feasibility depends on pulp type, mediator strategy, kappa number, brightness target, downstream sequence, and paper-property requirements.

  • Q: Is a mediator always required for pulp laccase applications?

    A: No. Some applications may use direct laccase oxidation, especially for phenolic substrates or effluent treatment. Mediators may improve lignin modification but add cost, residue, safety, and wastewater considerations.

  • Q: Why is ABTS activity not enough for selecting pulp laccase?

    A: ABTS is a convenient assay substrate, but pulp is a complex fiber matrix. Kappa number, brightness, viscosity, strength, extractives, COD, and effluent color are more relevant to process decisions.

  • Q: What pulp conditions should be provided for evaluation?

    A: Provide pulp type, kappa number, brightness, consistency, pH, temperature, retention time, process liquor, carryover chemicals, mediator restrictions, and target downstream sequence.

  • Q: Can Creative Enzymes support bulk pulp laccase supply?

    A: Yes. Support can include product selection, pulp-specific screening, activity-defined lots, custom formulation, mediator evaluation, recombinant or custom production discussion, and recurring bulk supply planning.

  • Q: What metrics should be used in a pilot trial?

    A: Typical metrics include enzyme dose, mediator dose if used, kappa number, brightness, viscosity, tensile, tear, burst, drainage, extractives, COD, effluent color, and downstream chemical savings.

Discuss Pulp and Paper Laccase Selection with Creative Enzymes

Creative Enzymes can help review pulp stream, process conditions, mediator strategy, activity assay, pulp performance metrics, formulation needs, documentation requirements, and custom or bulk laccase supply options.
