Starch Processing Enzymes

Amylase and Starch Enzyme Resources

Starch Processing Enzymes

Starch processing enzymes are used as coordinated enzyme systems to convert native or gelatinized starch into dextrins, glucose syrup, maltose syrup, fermentation sugars, brewing wort, food texture ingredients, textile desizing streams, feed carbohydrates, and specialty starch products. A successful starch process rarely depends on one enzyme name alone. Alpha-amylase, glucoamylase, beta-amylase, pullulanase, isoamylase, maltogenic amylase, CGTase, and auxiliary enzymes each solve a different process problem. Selection should begin with the target process stage, starch source, dry solids, gelatinization behavior, pH, temperature, viscosity, branch content, desired sugar profile, downstream separation, product grade, and supply format.

Request Starch Processing Support View Starch Enzyme Guide

Starch Processing Enzyme Overview

Starch processing is a sequence problem. The first enzyme may reduce viscosity, the second may release a target sugar, and a third may remove branch limitations. Choosing the right combination depends on the product profile and the process window.

Native starch is not a uniform substrate. Corn, wheat, tapioca, potato, rice, and specialty starches differ in amylose content, amylopectin branching, gelatinization temperature, granule size, phosphate content, lipids, protein association, and modification history. Once heated and hydrated, starch gelatinizes and viscosity rises sharply. Liquefaction with alpha-amylase reduces molecular weight and creates soluble dextrins. Saccharification with glucoamylase, beta-amylase, or other exo-enzymes then converts those dextrins into glucose, maltose, or selected oligosaccharides. Pullulanase or isoamylase may be added to remove alpha-1,6 branches and improve yield or product profile.

This page focuses on how starch processing enzymes are combined in practical workflows. It complements individual product pages by explaining where each enzyme fits in the process, what data should be measured, and which technical details should be provided when requesting product selection or custom supply support.

Typical process levers

gelatinization and liquefaction temperature
alpha-amylase dose, thermostability, and calcium requirement
saccharification pH, temperature, dry solids, and time
debranching strategy for alpha-1,6 linkages
target profile: glucose, maltose, dextrins, cyclodextrins, fermentability, or texture

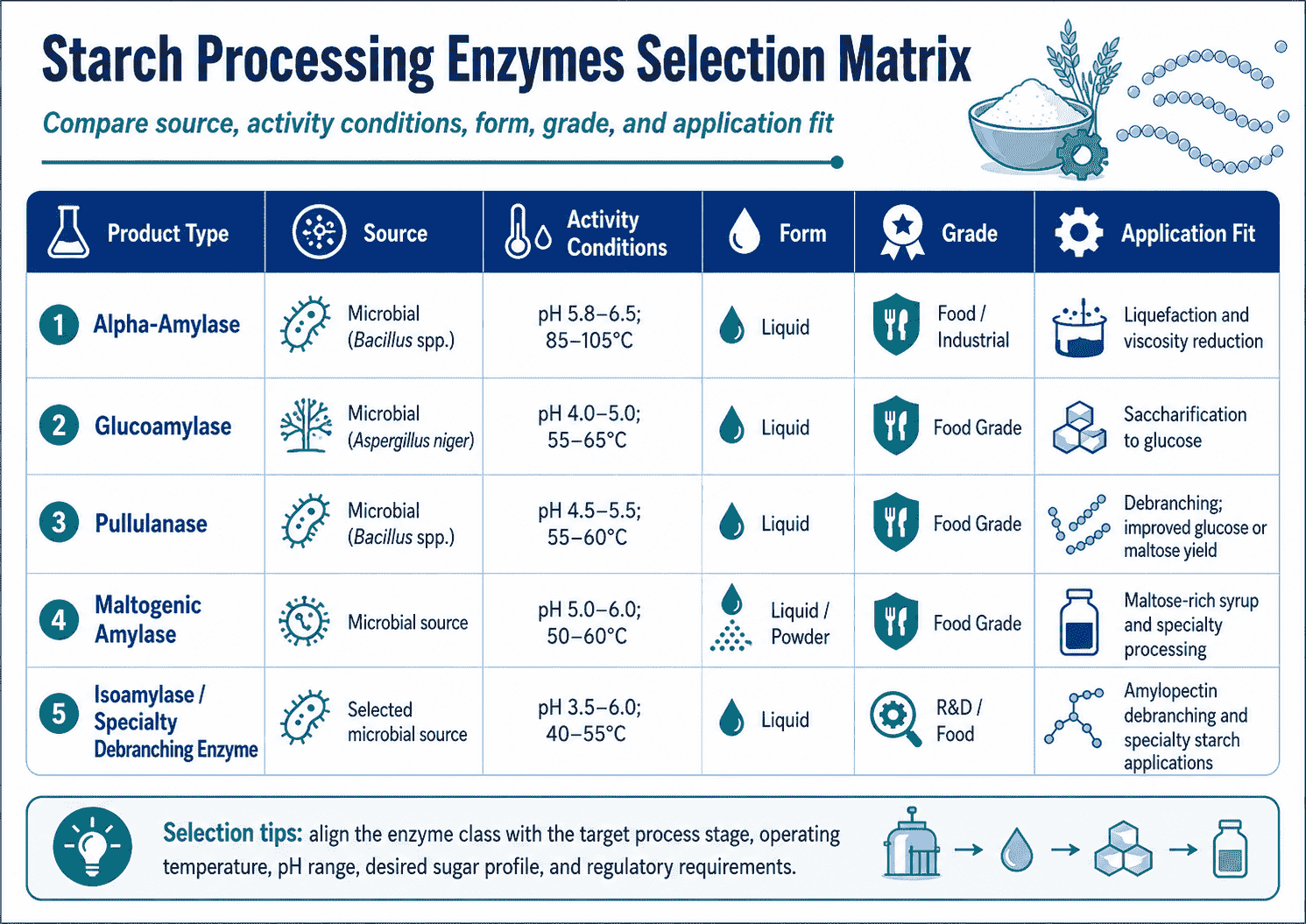

Selection matrix for Starch Processing Enzymes comparing source, activity conditions, form, grade, and application fit

From Starch Slurry to Target Product

Most starch processing projects can be mapped into a few stages. The sequence may be shortened, extended, or modified, but the logic is consistent: prepare the substrate, reduce viscosity if needed, generate the desired sugar or dextrin profile, then stabilize or purify the product. Enzyme choice should match the stage rather than forcing one product to do everything.

Process stage	Main objective	Typical enzyme focus
Slurry preparation and gelatinization	Hydrate starch, open granules, and create an accessible substrate.	Granular-starch-active enzymes may be considered for special low-temperature routes; most conventional processes use heat first.
Liquefaction	Reduce viscosity and convert gelatinized starch into soluble dextrins.	Thermostable alpha-amylase, with attention to pH, calcium, temperature, and dry-solids tolerance.
Saccharification	Convert dextrins into glucose, maltose, or fermentable sugar profile.	Glucoamylase for glucose, beta-amylase for maltose, and maltogenic enzymes for selected profiles.
Debranching	Remove alpha-1,6 branch limitations in amylopectin-derived dextrins.	Pullulanase or isoamylase, usually paired with glucoamylase or beta-amylase.
Specialty conversion	Generate cyclodextrins, resistant starch, linear dextrins, or functional oligosaccharides.	CGTase, pullulanase, isoamylase, maltogenic amylase, or custom enzyme blends.

Roles of Key Starch Processing Enzymes

Each starch enzyme class changes the substrate in a different way. A process that needs viscosity reduction may fail if it uses only a glucose-forming enzyme. A process that needs high glucose yield may be inefficient without debranching. A process that needs maltose should not be optimized only for total reducing sugar. The following role map can help identify which enzyme family should be evaluated first.

Alpha-amylase

Endo-cleaves alpha-1,4 bonds to reduce viscosity and create dextrins. It is the main liquefaction enzyme and a common tool in brewing, baking, desizing, and feed applications.

Glucoamylase

Exo-releases glucose from non-reducing ends. It is central to high-glucose syrup, dextrose production, distilling, ethanol, and fermentation sugar preparation.

Beta-amylase

Exo-releases maltose from non-reducing ends. It is useful for high-maltose syrup, brewing fermentability, malt extracts, and cereal conversion.

Pullulanase and isoamylase

Debranch alpha-1,6 linkages, improving access for glucoamylase or beta-amylase and enabling specialty linear-chain starch work.

Maltogenic amylase

Used in baking softness, anti-staling, and selected maltose or oligosaccharide profiles where controlled product distribution matters.

CGTase

Converts starch into cyclodextrins and related transfer products for inclusion complex, food, cosmetic, analytical, and specialty applications.

Substrate and Feedstock Considerations

Starch source and process history strongly influence enzyme performance. Corn starch may be predictable in syrup production, while wheat flour contains gluten proteins, lipids, damaged starch, endogenous enzymes, and pentosans. Tapioca starch may require different gelatinization handling than potato starch. High-amylose starch, waxy starch, physically modified starch, acid-thinned starch, and crosslinked starch can respond very differently to the same enzyme dose.

Substrate context	Processing issue	Recommended evaluation
Native starch granules	Limited enzyme access before gelatinization unless granular-starch-active enzymes are used.	Confirm gelatinization profile, particle size, raw-starch activity, and process temperature constraints.
Gelatinized high-solids slurry	Rapid viscosity rise can limit mixing, heating, and sampling.	Evaluate alpha-amylase dose, thermostability, dry-solids tolerance, and viscosity reduction rate.
Liquefied dextrin stream	Product profile depends on DE, branch content, and chain-length distribution.	Measure DE, glucose, maltose, maltotriose, DP4+ dextrins, and residual branch limitations.
Flour, mash, or food matrix	Proteins, lipids, salt, sugars, endogenous enzymes, and process additives affect performance.	Test under actual formulation or mash conditions rather than clean starch alone.
Modified or specialty starch	Chemical modification can alter accessibility and product functionality.	Use application-specific endpoints such as viscosity, texture, digestibility, or chain-length profile.

Application Areas for Starch Processing Enzymes

Starch enzyme systems are used in sweetener production, fermentation, brewing, distilling, baking, textile processing, feed, paper and adhesives, and specialty carbohydrate development. The same enzyme combination may not fit all applications. Glucose syrup production may prioritize maximum dextrose and low residual DP material. Brewing may require a balance of fermentability and body. Baking may need controlled starch modification without gummy crumb. Textile desizing needs starch removal under fabric-safe conditions. Feed enzymes must be active after pelleting and under digestive pH conditions.

Application	Common enzyme strategy	Performance endpoint
Glucose syrup and dextrose	Alpha-amylase liquefaction followed by glucoamylase, often with pullulanase.	High glucose yield, low residual dextrin, controlled reversion, and efficient saccharification time.
High-maltose syrup	Controlled alpha-amylase pretreatment, beta-amylase, and pullulanase where needed.	Maltose percentage, low glucose if desired, residual DP profile, and stable sweetness profile.
Fermentation and distilling	Liquefaction and saccharification enzymes matched to mash, pH, temperature, and fermentation organism.	Fermentable sugar, attenuation, residual sugar, viscosity, contamination control, and ethanol or product yield.
Baking and cereal foods	Fungal alpha-amylase, maltogenic amylase, or controlled blends.	Dough handling, yeast nutrition, loaf volume, crust color, crumb softness, and shelf-life.
Textile desizing	Alpha-amylase active under desizing bath conditions.	Starch removal, fabric quality, rinsing efficiency, and compatibility with surfactants and process water.

Process Conditions That Shape Enzyme Performance

Starch processing is condition-dependent. Enzymes selected by catalog activity may behave differently in high-viscosity slurry, high dry solids, acidic saccharification, mash with ethanol formation, or food formulations with salt and sugar. Temperature is especially important because liquefaction may occur near or above the stability range of some enzymes, while saccharification often occurs at lower temperatures. Calcium can stabilize some alpha-amylases but may not be allowed or needed in every process. pH shifts, shear, residence time, and downstream heat treatment can change both activity and residual enzyme risk.

Define pH and temperature for each stage rather than using one condition for the whole process.
Record dry solids, viscosity, gelatinization status, and mixing limitations before enzyme screening.
Check calcium, chelants, salts, preservatives, sugars, ethanol, organic acids, and process chemicals.
Use enzyme inactivation or stage separation when residual activity would alter the final product.

Run time-course sampling when the target is a controlled DE, sugar profile, or texture endpoint.
Evaluate debranching only after confirming that branch points are accessible in the substrate.
For fermentation, connect starch conversion with organism performance and residual sugar profile.
For food and baking, include sensory, texture, and shelf-life endpoints where relevant.

How to Select a Starch Processing Enzyme System

A practical selection process starts with the final product, then works backward to the enzyme sequence. If the product is glucose syrup, begin with target glucose percentage, dry solids, and residual dextrin limit. If the product is maltose syrup, define maltose purity and acceptable glucose. If the product is a fermentable mash, define fermentability, viscosity, and compatibility with fermentation. If the product is a baked good, define crumb, softness, color, and shelf-life. The enzyme system should then be built around those endpoints.

Selection factor	Why it matters	Recommended check
Target product profile	Glucose, maltose, dextrins, cyclodextrins, and resistant starch require different enzyme systems.	Define the product profile before comparing individual enzymes.
Stage compatibility	Liquefaction, saccharification, debranching, and finishing stages use different pH-temperature windows.	Map each enzyme to the stage where it will actually operate.
Partner enzyme effects	Alpha-amylase DE, pullulanase dose, and glucoamylase or beta-amylase level interact strongly.	Screen combinations rather than testing each enzyme only in isolation.
Product form and supply	Liquid, powder, food-grade, feed-grade, and technical-grade products differ in dosing and documentation.	Confirm form, activity unit, packaging, storage, quality documents, and bulk availability.

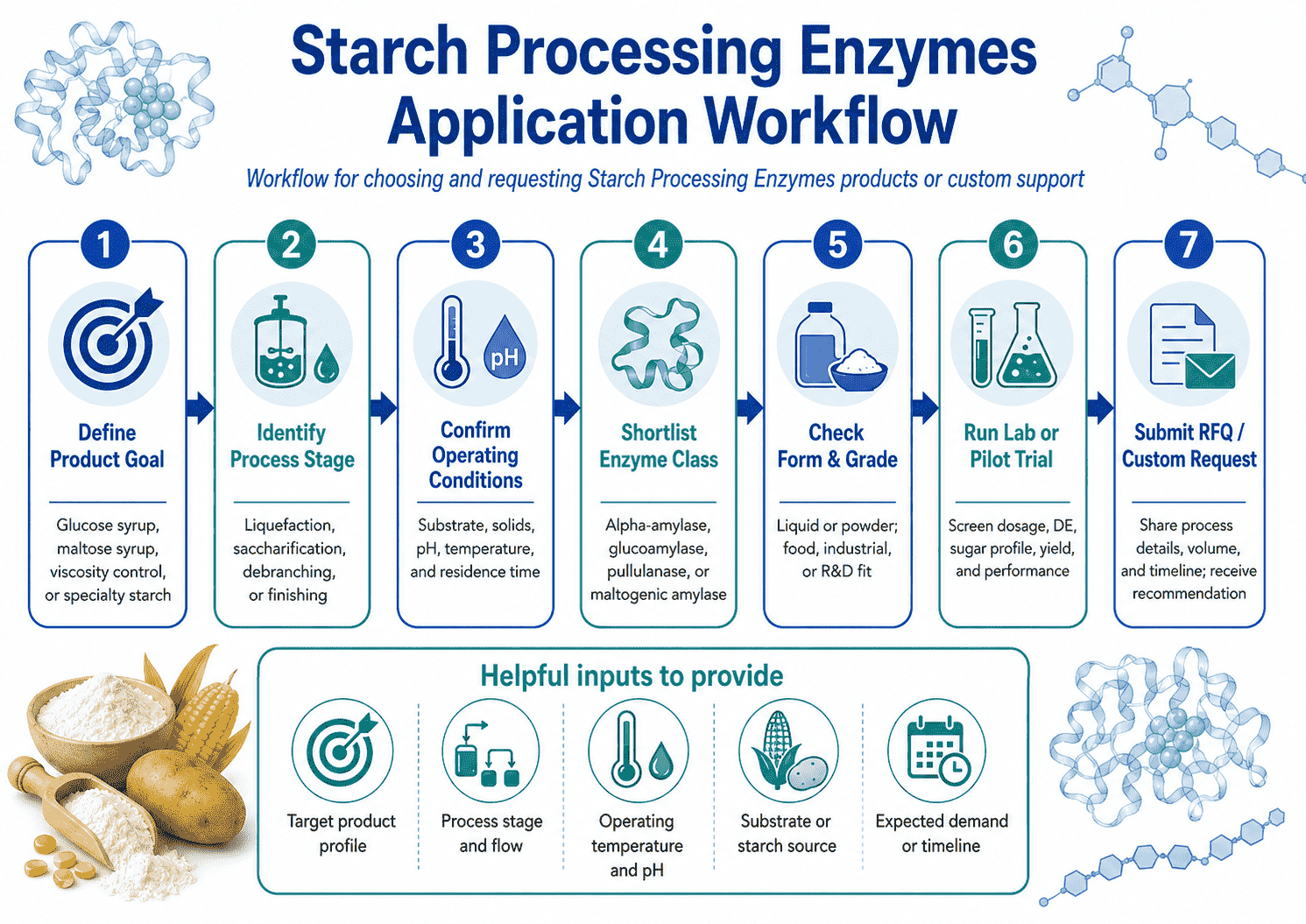

Application workflow for choosing and requesting Starch Processing Enzymes products or custom support

Recommended Starch Enzyme Evaluation Workflow

A staged workflow helps determine whether poor performance is caused by the wrong enzyme, wrong sequence, poor substrate preparation, or unsuitable analytics. Start by defining substrate and product target. Then map the enzyme sequence. Next, run small-scale condition screens with realistic pH, temperature, solids, and timing. Confirm product profile with suitable analytics. Finally, align the selected enzyme products with form, dosing, activity units, documentation, and supply scale.

Stage	Purpose	Output
Process definition	Clarify starch source, target product, dry solids, equipment, and processing constraints.	Process map and enzyme class shortlist.
Enzyme sequence design	Assign alpha-amylase, glucoamylase, beta-amylase, pullulanase, or specialty enzymes to stages.	Candidate enzyme sequence and condition matrix.
Condition screening	Evaluate enzyme dose, pH, temperature, time, dry solids, calcium, and partner enzyme ratios.	Shortlist of conditions with suitable conversion and handling.
Profile confirmation	Measure viscosity, DE, sugar profile, fermentability, texture, desizing, or specialty product metrics.	Evidence that the enzyme system meets the application target.
Supply planning	Define product form, grade, activity specification, storage, packaging, documentation, and quantity.	Recommended products, custom formulation route, assay support, or bulk supply plan.

Testing, Analytics, and Process Metrics

Starch processing enzyme evaluation should combine activity assays with application analytics. Reducing sugar assays and iodine-starch tests are useful for quick checks, but they cannot fully describe sugar profile. Viscosity and RVA-style measurements are important for liquefaction, baking, and texture applications. HPLC or ion chromatography can quantify glucose, maltose, maltotriose, and higher DP oligosaccharides. Pullulanase benefit is best shown by reduced branch-derived residual dextrins and improved glucose or maltose yield. Fermentation processes should include residual sugar and fermentation performance rather than only saccharification data.

Liquefaction metrics

Viscosity, DE, iodine color, dry solids, residual starch, and thermal stability show whether alpha-amylase is working in the slurry.

Saccharification metrics

Glucose, maltose, DP profile, residual dextrins, reversion products, and enzyme dose show whether the target sugar profile is reached.

Application metrics

Fermentability, attenuation, crumb softness, desizing efficiency, texture, filterability, and digestibility connect conversion to use value.

Supply metrics

Activity units, lot consistency, formulation stability, microbial specification, storage, and packaging support routine use.

Quality Checks and Professional Cautions

Starch processing failures are often caused by sequence mismatch rather than inactive enzyme. A glucoamylase may underperform because liquefaction DE is wrong. A beta-amylase may stall because pullulanase is missing. A strong alpha-amylase may over-hydrolyze a baking formulation. A pullulanase may show high pullulan activity but little benefit in a real syrup if branch points are inaccessible. Analytical methods can also mislead when total reducing sugar is treated as a complete product profile.

Do not compare enzyme products only by catalog activity units across different substrates and methods.
Distinguish viscosity reduction, glucose yield, maltose yield, and functional texture because they require different enzyme choices.
Test with real starch source, dry solids, pH, temperature, and process stage when possible.
Use sugar profile analytics when product composition matters; reducing sugar alone is not enough.
Confirm product grade, side activity, storage stability, microbial specification, and documentation before scale-up.

Product Form, Custom Blends, and Bulk Supply

Starch processing enzymes may be supplied as liquid concentrates, powders, granules, food-grade products, feed-grade products, technical enzymes, fermentation aids, or custom blends. Liquid products can be convenient for industrial metering. Powder and granular products may be preferred for dry blends, baking, feed, and storage. Custom blends may combine alpha-amylase with glucoamylase, pullulanase, beta-amylase, or other enzymes when the process benefits from a fixed ratio.

Creative Enzymes can help review individual enzyme products, design enzyme combinations, define application assays, compare product forms, and discuss custom formulation or bulk supply. For established processes, the focus may be matching activity units, stability, packaging, and documentation. For exploratory projects, a staged panel screen is usually better than ordering one enzyme by name.

Information Needed for a Starch Processing Enzyme Inquiry

A clear inquiry should describe the substrate, current process, target product, and analytical method. Even if the full process is confidential, basic ranges for pH, temperature, dry solids, and product target make product selection more accurate.

application goal, such as liquefaction, glucose syrup, maltose syrup, fermentation sugar, brewing, baking, desizing, feed, or specialty starch
starch source, substrate state, dry solids, gelatinization or liquefaction history, DE, viscosity, and current enzyme sequence
process pH, temperature, calcium, salts, reaction time, shear, heating or cooling profile, and downstream processing
target metrics, such as viscosity, DE, glucose, maltose, DP profile, fermentability, texture, filterability, desizing efficiency, or yield

preferred enzyme classes, current benchmark products, side activity restrictions, and grade requirements
desired product form, liquid or powder, quantity, packaging, storage, activity specification, and documentation needs
available analytical methods, previous trial data, failed conditions, process bottlenecks, and quality issues
timeline, target scale, interest in custom blends, assay support, or recurring bulk supply
