Biodiesel Lipase

Lipase and Esterase Enzyme Resources

Biodiesel Lipase

A technical guide to selecting lipase products for enzymatic biodiesel production, including FAME and FAEE synthesis, high-FFA feedstocks, immobilized catalyst reuse, alcohol feeding, glycerol management, and bulk enzyme supply.

Biodiesel lipase products catalyze esterification and transesterification reactions that convert triglycerides and free fatty acids into fatty acid alkyl esters. In methanol-based systems, the target products are fatty acid methyl esters, or FAME. In ethanol-based systems, the target products are fatty acid ethyl esters, or FAEE. Enzymatic biodiesel production can be attractive for lower-temperature processing, high free fatty acid feedstocks, reduced soap formation, and simplified treatment of challenging oils when the enzyme system is properly designed.

Lipase-based biodiesel is highly process-dependent. Catalyst choice depends on feedstock oil quality, free fatty acid level, water content, alcohol type, alcohol feed strategy, glycerol accumulation, solvent or solvent-free operation, immobilized catalyst stability, product separation, reuse target, and fuel-quality endpoints. A lipase that works well on refined vegetable oil may fail with waste cooking oil, acid oil, animal fat, microalgal oil, or high-FFA feedstock if water, impurities, and alcohol inhibition are not controlled.

Request Biodiesel Lipase Support View Immobilized Lipase

Biodiesel lipase selection should be evaluated by conversion, fuel-quality metrics, catalyst reuse, and cost-in-use under the actual feedstock and alcohol system. Model reactions with clean oil can help screen candidates, but they do not replace testing with real feedstock impurities, water, FFAs, methanol or ethanol exposure, and glycerol accumulation.

Biodiesel Lipase Product Overview

Lipases can catalyze both transesterification of triglycerides with alcohols and esterification of free fatty acids. This dual capability is important for feedstocks that are difficult for conventional alkaline catalysis because high FFA levels can cause soap formation in chemical base processes. Enzymatic routes can tolerate or convert FFAs when water and alcohol are controlled, making lipase screening relevant for waste oils, acid oils, low-grade fats, and variable lipid streams.

Most practical biodiesel lipase processes use immobilized lipase because catalyst recovery and reuse are central to economics. Immobilization can improve handling and enable repeated-batch or packed-bed operation, but it also introduces mass-transfer limits, leaching risk, alcohol sensitivity, glycerol fouling, and carrier compatibility questions. Soluble lipase can be useful for screening or selected processes, but separation and reuse are often more difficult.

Creative Enzymes can support biodiesel lipase product selection, feedstock-specific screening, immobilized catalyst evaluation, alcohol feeding strategy, water balance optimization, glycerol management, activity assay development, custom immobilization discussion, activity-defined lots, and custom or bulk enzyme supply for biodiesel process development.

Selection principle

Evaluate the complete biodiesel system: feedstock quality, alcohol feed, water level, catalyst form, glycerol removal, reuse cycles, and final ester quality. Lipase activity alone is not enough to select a production catalyst.

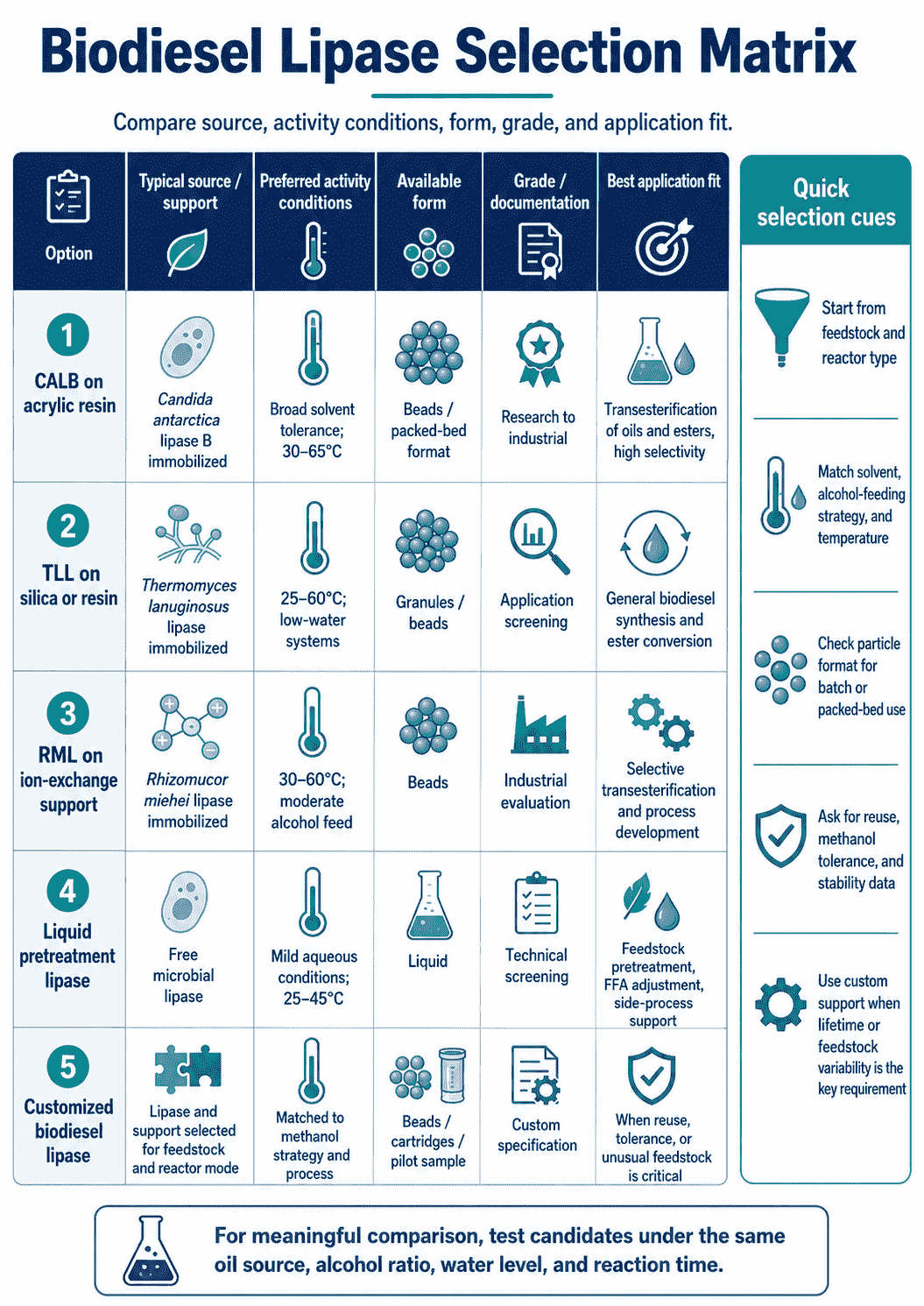

Selection matrix for Biodiesel Lipase comparing source, activity conditions, form, grade, and application fit

Feedstock Type and Pretreatment Needs

Feedstock quality is one of the strongest drivers of biodiesel lipase performance. Screening should include the actual oil or fat when possible because impurities can change reaction rate, catalyst life, and product quality.

Feedstock Technical challenge Evaluation focus
Refined vegetable oil Relatively clean substrate useful for baseline catalyst comparison and method development. Screen conversion, alcohol tolerance, water effect, and reuse before moving to more variable feedstocks.
Waste cooking oil Variable FFA, water, oxidation products, polymers, food residues, salts, and trace metals can affect catalyst performance. Measure acid value, water, insolubles, peroxide value if relevant, and filtration or pretreatment needs.
Animal fat or tallow Higher melting point and saturated fatty acid content can create mass-transfer and temperature constraints. Evaluate melting behavior, mixing, temperature, viscosity, and ester profile.
Acid oil or high-FFA feedstock High FFA level can be converted by esterification, but water produced during esterification must be managed. Track FFA conversion, water balance, alcohol ratio, and final acid value.
Microalgal or microbial oil May contain pigments, polar lipids, water, proteins, cell residues, and unusual fatty acid profiles. Assess extraction method, impurities, lipid class profile, and downstream purification needs.
Mixed low-grade lipid stream Composition can shift between batches, affecting catalyst lifetime and fuel-quality consistency. Use representative lot testing and define feedstock acceptance criteria.

Reaction System: Transesterification, Esterification, and Water Balance

Enzymatic biodiesel often involves both triglyceride transesterification and free fatty acid esterification. Water is especially important because lipases need some hydration for activity, but too much water can drive hydrolysis and reduce ester yield.

Transesterification

Converts triglycerides into FAME or FAEE through stepwise formation of diglycerides, monoglycerides, and esters. Monitor residual glycerides and total ester content.

FFA Esterification

Converts free fatty acids and alcohol into alkyl esters while producing water. This can help process high-FFA feedstocks when water is controlled.

One-Pot Conversion

May combine esterification and transesterification in one system, but competing water requirements and alcohol inhibition must be balanced.

Solvent-Free Process

Can simplify downstream removal but may increase viscosity, mass-transfer limits, and local alcohol concentration stress on the catalyst.

Solvent-Assisted Process

May improve mixing and reduce glycerol fouling, but solvent cost, recovery, safety, and fuel-quality impact must be considered.

Water Management

Water from feedstock, enzyme, esterification, and atmosphere can shift reaction equilibrium and catalyst stability. Measure and control it deliberately.

Methanol, Ethanol, and Alcohol Feeding Strategy

Short-chain alcohols can inhibit or deactivate lipases, especially when local concentration is high. Feeding strategy often determines whether a biodiesel lipase process is viable.

Alcohol strategy Potential benefit Process caution
Single methanol charge Simple operation and direct FAME production. High local methanol can deactivate lipase or strip essential water from the catalyst microenvironment.
Stepwise methanol feeding Reduces alcohol shock and can improve conversion and catalyst lifetime. Requires feed timing optimization and monitoring of residual glycerides and methanol.
Ethanol process Produces FAEE and may be attractive for renewable alcohol sourcing. Ethanol changes equilibrium, solubility, enzyme tolerance, and downstream separation compared with methanol.
Co-solvent or tert-alcohol system Can improve miscibility and reduce glycerol deposition on immobilized catalyst. Solvent recovery, safety, cost, and fuel-quality compatibility must be evaluated.
Alcohol ratio optimization Drives ester formation and affects final conversion. Excess alcohol can improve equilibrium but reduce enzyme stability and complicate separation.
Continuous low-dose feed Supports stable packed-bed or repeated-batch operation. Requires process control and may need online or frequent analytical monitoring.

Catalyst Form: Soluble, Immobilized, and Custom Lipase

Immobilized lipase

  • Preferred for reuse, filtration, packed-bed operation, and reduced enzyme carryover.
  • Evaluate carrier compatibility, leaching, glycerol fouling, particle integrity, pressure drop, and cycle life.
  • Often central to biodiesel economics because enzyme cost must be spread across repeated use.

Soluble or liquid lipase

  • Useful for early screening, emulsified systems, or cases where separation is not a primary concern.
  • May face recovery, product contamination, and reuse challenges.
  • Requires compatibility with alcohol, oil phase, water level, and feedstock impurities.

Custom immobilized catalyst

  • Consider when standard immobilized products do not meet feedstock, alcohol, solvent, reuse, or reactor requirements.
  • Carrier, enzyme loading, particle size, hydrophobicity, and covalent attachment can be adjusted.
  • Best developed with real feedstock and target reactor format in mind.

Enzyme blend

  • Can combine activities for triglycerides and FFAs or broaden feedstock tolerance.
  • Must be evaluated for product profile, stability, cost, and lot consistency.
  • Useful only when blend benefit is demonstrated under process conditions.

How to Select a Biodiesel Lipase Product

Technical fit

  • Define feedstock type, FFA level, water, impurities, alcohol type, alcohol ratio, solvent, temperature, and reaction time.
  • Measure FAME or FAEE content, residual mono-, di-, and triglycerides, free glycerol, total glycerol, acid value, water, and viscosity when relevant.
  • Evaluate methanol or ethanol inhibition, water balance, glycerol fouling, and feedstock variability.
  • Run repeated-cycle or packed-bed tests if catalyst reuse is part of the process economics.

Product fit

  • Choose lipase source, immobilization method, carrier, particle size, activity unit, moisture, and product form according to the process.
  • Review leaching, mechanical stability, alcohol tolerance, storage stability, and lot release specification.
  • Define pilot quantity, production forecast, package size, documentation, and custom immobilization needs.
  • Compare catalyst cost by cost per kilogram biodiesel or per conversion cycle, not only purchase price.

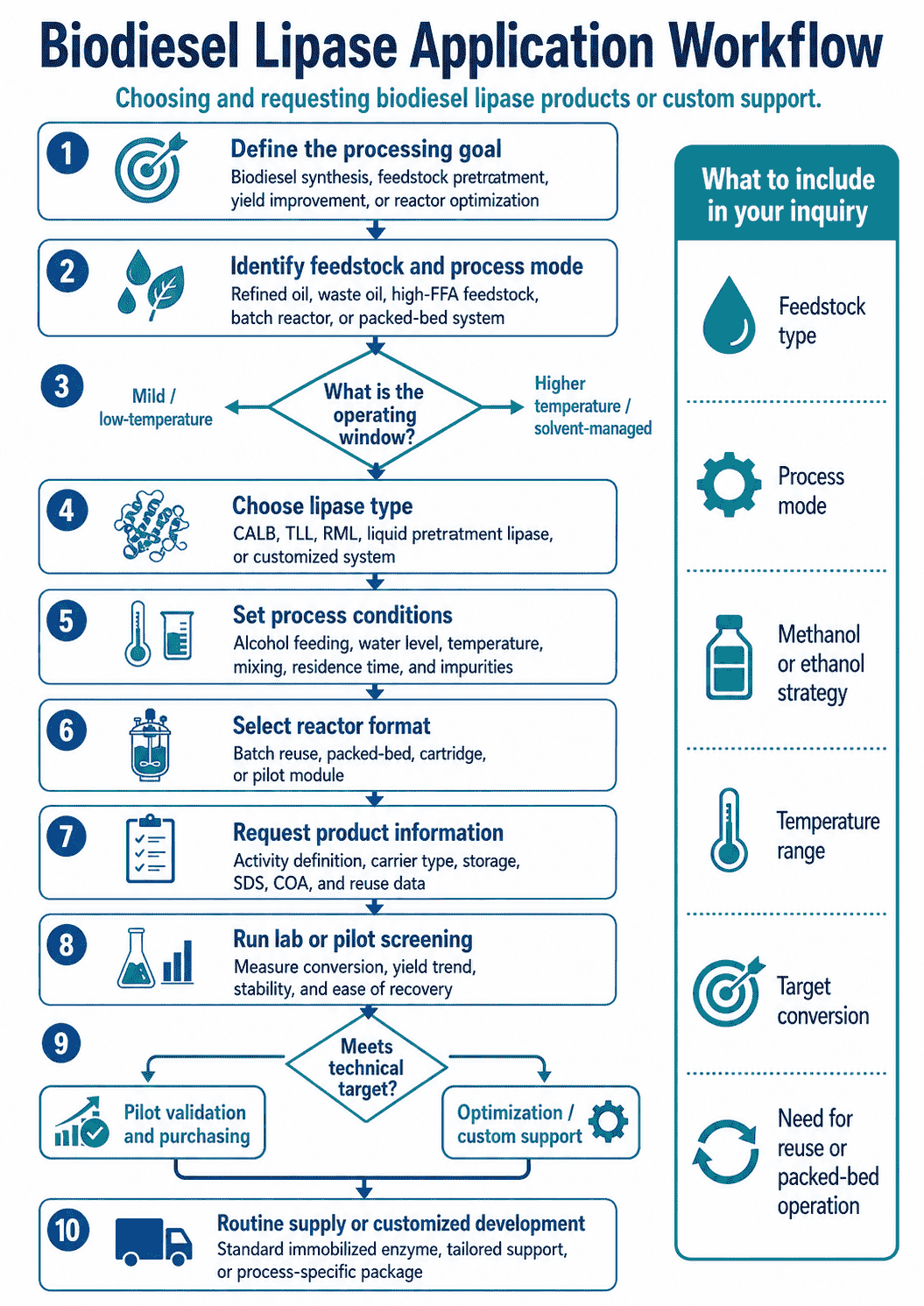

Application workflow for choosing and requesting Biodiesel Lipase products or custom support

Reuse, Glycerol Management, and Operational Stability

Repeated-Batch Reuse

Define cycle length, feedstock charge, alcohol feed, catalyst recovery, wash method, and storage between cycles. Track conversion rate and ester quality over time.

Packed-Bed Operation

Requires control of pressure drop, channeling, feed clarity, alcohol distribution, water level, glycerol deposition, and particle integrity.

Glycerol Fouling

Glycerol can coat immobilized catalyst and reduce activity. Solvent choice, staged alcohol feed, wash strategy, and reactor design can affect fouling.

Enzyme Leaching

Measure protein or activity in the product phase when catalyst loss, product contamination, or regulatory concerns matter.

Feedstock Variability

Impurities, oxidized oils, metals, soaps, pigments, and water can change catalyst life. Define acceptable feedstock specifications.

Cost-in-Use

Evaluate enzyme dose, conversion, cycle life, reaction time, product yield, downstream separation, and replacement frequency together.

Testing, Analytics, and Biodiesel Quality Endpoints

Metric Best use Interpretation note
FAME or FAEE content Primary measure of biodiesel ester conversion. Use GC or validated chromatographic analysis to quantify ester content and incomplete conversion.
Mono-, di-, and triglycerides Diagnosing incomplete transesterification and reaction bottlenecks. Residual glycerides can indicate alcohol limitation, enzyme inhibition, water imbalance, or mass-transfer issues.
Free and total glycerol Assessing reaction completion, separation, and product quality. High glycerol may reflect poor separation or glycerol accumulation on catalyst.
Acid value Tracking FFA conversion and product stability. Important for high-FFA feedstocks and esterification performance.
Water content Controlling reaction equilibrium, hydrolysis, and enzyme stability. Measure feedstock, enzyme, solvent, alcohol, and final biodiesel when water balance is critical.
Viscosity and fuel properties Checking whether the product behaves like biodiesel rather than partially converted oil. Pair with ester composition and residual glycerides for interpretation.

Recommended Biodiesel Lipase Evaluation Workflow

  1. Characterize feedstock

    Measure oil type, FFA, water, impurities, insolubles, oxidation state if relevant, and batch variability.

  2. Define biodiesel target

    Clarify FAME or FAEE goal, ester content, residual glyceride limits, acid value, reuse target, and production scale.

  3. Shortlist lipase catalysts

    Compare immobilized, soluble, custom immobilized, or blended lipase options by alcohol tolerance, feedstock fit, activity, and supply route.

  4. Optimize alcohol and water

    Test methanol or ethanol ratio, stepwise feed, solvent, water level, reaction time, and temperature.

  5. Measure conversion and reuse

    Use GC or validated analysis for ester content and glycerides while tracking catalyst recovery, leaching, and activity over cycles.

  6. Plan supply and scale-up

    Define catalyst form, activity specification, packaging, storage, pilot quantity, reactor format, and bulk supply requirements.

Quality Checks and Professional Cautions

Alcohol Can Deactivate Lipase

Methanol and ethanol can reduce activity, especially at high local concentration. Feeding strategy is often critical.

Water Balance Is Not Optional

Too little water can reduce activity; too much can favor hydrolysis and lower ester yield. Feedstock and enzyme moisture should be known.

High FFA Is a Design Variable

Lipases can esterify FFAs, but water formed during esterification must be managed to maintain yield and catalyst stability.

Glycerol Can Reduce Catalyst Life

Glycerol accumulation on immobilized lipase can block access and lower reuse performance.

Clean-Oil Screening May Mislead

Waste oils and low-grade feedstocks contain impurities that can change catalyst lifetime and product quality.

Economics Depend on Reuse

Evaluate catalyst lifetime, conversion rate, separation, and replacement frequency rather than activity alone.

Product Form, Custom Immobilization, and Bulk Supply

Catalog Catalyst Supply

Evaluation quantities for biodiesel reaction screening with defined oils, alcohols, and conversion analysis.

Activity-Defined Lot

Lots released against defined lipase activity or application conversion criteria.

Custom Immobilization

Discussion of carrier, enzyme loading, particle size, alcohol tolerance, glycerol resistance, and packed-bed feasibility.

Process Screening Support

Technical review of feedstock quality, alcohol feeding, water control, reuse testing, and conversion analysis.

Custom Production

Custom enzyme or catalyst production discussion when source, stability, documentation, or long-term supply requirements are specific.

Bulk and Recurring Supply

Planning for pilot quantity, production quantity, annual forecast, lot reservation, packaging, and procurement schedule.

Information Needed for a Biodiesel Lipase Inquiry

Feedstock and process details

  • Feedstock type, FFA level, acid value, water, impurities, insolubles, pretreatment, and batch variability.
  • Target product, such as FAME or FAEE, ester content, residual glycerides, acid value, and quality requirements.
  • Alcohol type, molar ratio, feed strategy, solvent, reaction temperature, time, water control, and reactor format.
  • Analytical methods available, including GC, glyceride profile, free glycerol, total glycerol, acid value, water, and viscosity.

Catalyst and supply details

  • Preferred lipase source, immobilized or soluble format, carrier preference, particle size, and acceptable leaching level.
  • Required reuse cycles, catalyst recovery method, washing, storage between cycles, and packed-bed or batch plan.
  • Evaluation quantity, pilot quantity, annual forecast, package size, storage, shipping, and shelf-life expectations.
  • Required documents such as COA, SDS, source statement, assay method summary, or custom quality forms.

Biodiesel Lipase FAQs

  • Q: Why use lipase for biodiesel production?

    A: Lipase can catalyze both triglyceride transesterification and free fatty acid esterification, which can be useful for high-FFA or difficult feedstocks where conventional base catalysis is problematic.

  • Q: Is immobilized lipase preferred for biodiesel?

    A: Often yes, because immobilized lipase can be recovered and reused. Reuse performance, leaching, glycerol fouling, and alcohol tolerance must be tested.

  • Q: Why is methanol feeding important?

    A: High local methanol concentration can deactivate lipase. Stepwise or controlled feeding can improve catalyst stability and conversion.

  • Q: Can lipase handle high-FFA feedstocks?

    A: Lipases can esterify FFAs, but water formed during esterification must be managed. Feedstock impurities and water content should be characterized.

  • Q: What analytics are needed?

    A: Typical analytics include ester content by GC, residual mono-, di-, and triglycerides, free and total glycerol, acid value, water content, viscosity, and feedstock quality tests.

  • Q: Can Creative Enzymes support custom biodiesel lipase supply?

    A: Yes. Support can include catalyst selection, immobilized lipase screening, alcohol feeding strategy, feedstock testing, reuse evaluation, custom immobilization, and bulk supply planning.

Discuss Biodiesel Lipase Selection with Creative Enzymes

Creative Enzymes can help review feedstock quality, alcohol strategy, water balance, catalyst form, conversion analytics, reuse requirements, custom immobilization, documentation needs, and custom or bulk biodiesel lipase supply options.

Request Biodiesel Lipase Support View Immobilized Lipase
