Immobilized Lipase

Lipase and Esterase Enzyme Resources

Immobilized Lipase

A technical guide to selecting immobilized lipase products for hydrolysis, esterification, transesterification, interesterification, non-aqueous synthesis, oil modification, biodiesel, flavor ester production, and reusable enzyme processes.

Immobilized lipase products combine catalytic lipase activity with a solid carrier or immobilized enzyme format that can improve handling, reuse, separation, operational stability, and compatibility with batch or packed-bed processes. Immobilization can also change enzyme conformation, substrate access, water tolerance, solvent behavior, and apparent selectivity, so an immobilized lipase should be evaluated as a complete catalyst system rather than only as a lipase attached to a bead.

The right immobilized lipase depends on reaction type, substrate structure, water activity, solvent or oil phase, carrier chemistry, particle size, mass transfer, temperature, pH, mechanical stress, product inhibition, acceptable leaching, reuse target, and cost-in-use. A product that performs well in a simple p-nitrophenyl ester assay may not be the best choice for high-substrate esterification, biodiesel transesterification, structured lipid production, or a continuous packed-bed reactor.

Request Immobilized Lipase Support View Lipase Selection Guide

Immobilized lipase selection should be driven by process performance, not by free-enzyme activity alone. The carrier, immobilization chemistry, water content, substrate phase, mass transfer, and reuse protocol can change the practical value of the catalyst as much as the lipase source itself.

Immobilized Lipase Product Overview

Lipases catalyze hydrolysis of ester bonds in triglycerides and related substrates, and under low-water or non-aqueous conditions they can catalyze esterification, transesterification, interesterification, and other acyl-transfer reactions. Immobilization can make these enzymes easier to recover and reuse, reduce enzyme contamination in the product, and support continuous processing. It may also improve tolerance to solvents, temperature, pH shifts, and interfaces, depending on the carrier and immobilization method.

Common immobilized lipase products may use lipases from sources such as Candida antarctica, Thermomyces lanuginosus, Rhizomucor miehei, Candida rugosa, Burkholderia cepacia, Aspergillus, or other microbial and animal sources. Source matters because lipases differ in chain-length preference, sn-1,3 regioselectivity, enantioselectivity, alcohol tolerance, thermal profile, and behavior at oil-water interfaces. Carrier matters because adsorption, covalent attachment, pore structure, particle size, hydrophobicity, and swelling all affect the observed rate and durability.

Creative Enzymes can support immobilized lipase product selection, reaction-specific screening, reuse evaluation, leaching assessment, custom immobilization discussion, activity assay development, formulation review, bulk supply, and recurring procurement planning. Projects may involve food oil modification, biodiesel, flavor esters, cosmetic esters, specialty lipids, research synthesis, hydrolysis, and process development for reusable lipase catalysts.

Selection principle

Evaluate immobilized lipase as a process catalyst. Conversion, selectivity, stability, leaching, reuse cycles, particle integrity, and downstream separation are more important than a single activity number measured on a soluble model substrate.

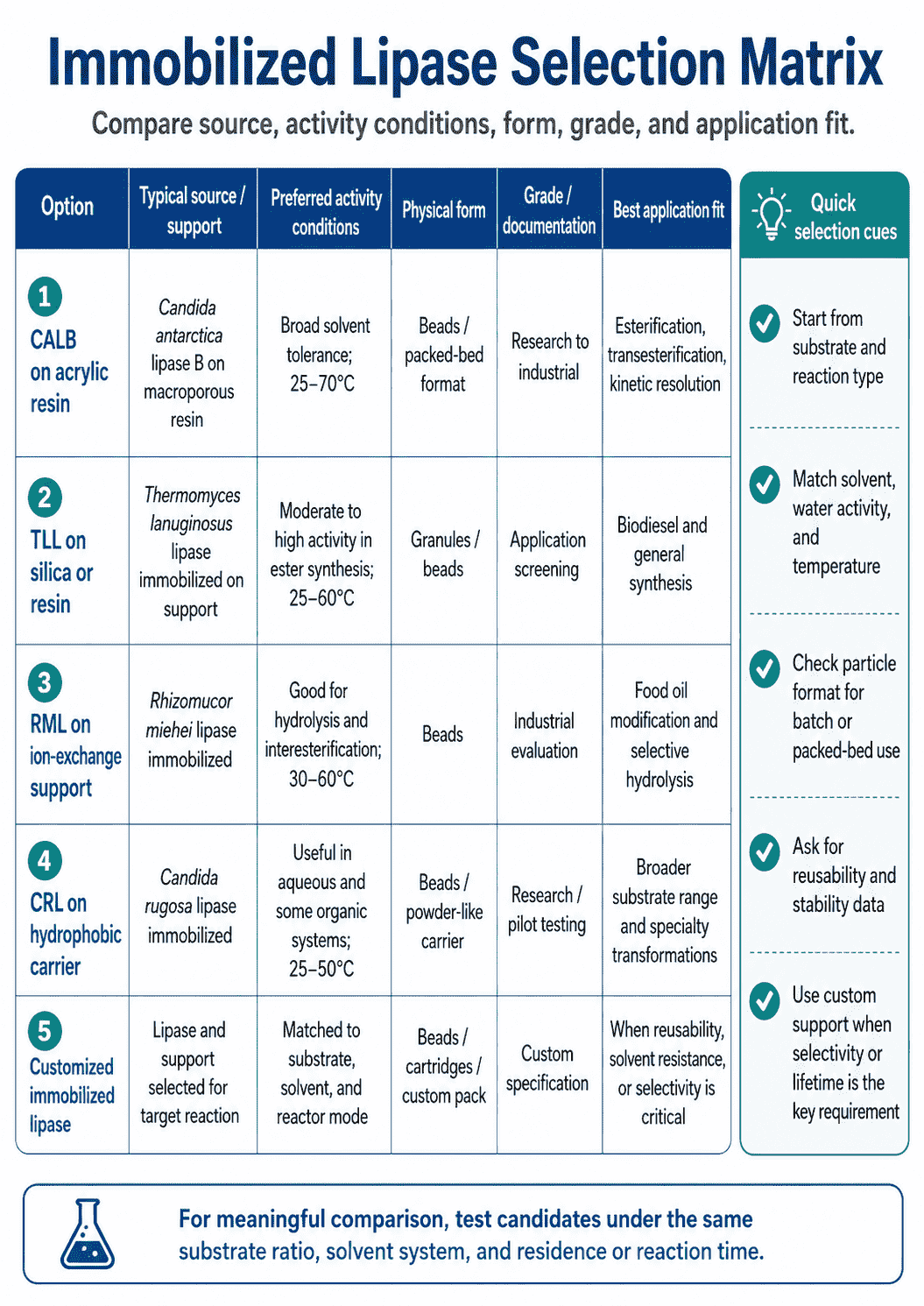

Selection matrix for Immobilized Lipase comparing source, activity conditions, form, grade, and application fit

Common Applications of Immobilized Lipase

Esterification

Immobilized lipase can catalyze formation of esters from acids and alcohols in low-water systems, including flavor esters, cosmetic esters, lubricant esters, and specialty chemicals.

Transesterification

Used for biodiesel, structured lipids, ester exchange, and alcoholysis reactions. Alcohol tolerance, water activity, glycerol accumulation, and catalyst reuse are key concerns.

Interesterification of Oils and Fats

Supports modification of triglyceride composition and melting profile. Regioselectivity, oil quality, moisture, free fatty acid level, and downstream filtration matter.

Hydrolysis

Applied to triglycerides, oils, fats, esters, or emulsions when reusable catalyst handling and separation are important. Interface control and emulsion stability affect results.

Kinetic Resolution and Specialty Synthesis

Some immobilized lipases provide useful enantioselectivity or acyl-transfer selectivity for alcohols, acids, esters, amines, and specialty substrates.

Continuous or Repeated-Batch Processing

Fixed-bed, packed-column, stirred-tank reuse, and membrane-assisted formats can reduce enzyme cost when stability, leaching, and mass transfer are controlled.

Carrier Type and Immobilization Chemistry

The immobilization format controls activity retention, solvent tolerance, mechanical behavior, mass transfer, and leaching risk. Carrier choice should match the reaction medium and reactor concept.

Format Typical advantage Selection caution
Hydrophobic adsorption resin Often supports interfacial activation of lipases and can perform well in esterification or transesterification systems. Protein leaching may occur in solvents, detergents, high water activity, or with competing hydrophobic substrates.
Ionic or affinity adsorption Mild immobilization with potential for high activity recovery and easier development. Binding can be sensitive to pH, salt, surfactants, and process additives.
Covalent attachment Improves attachment strength and can reduce leaching during reuse or continuous operation. May reduce activity if active-site access or conformational mobility is restricted.
Epoxy or activated polymer carrier Useful for robust covalent immobilization and process handling. Reaction time, water content, pore access, and carrier swelling should be evaluated.
Silica, ceramic, or inorganic support Can offer mechanical strength, solvent compatibility, and defined particle properties. Surface chemistry, enzyme loading, brittleness, and pressure drop must be matched to the process.
Cross-linked enzyme aggregate or custom particle May increase volumetric activity or avoid large inert carrier mass in selected workflows. Mechanical durability, filtration behavior, swelling, and reproducible particle formation require testing.

How to Select an Immobilized Lipase Product

Technical fit

  • Define reaction type, substrate structures, desired conversion, regioselectivity, enantioselectivity, and acceptable byproducts.
  • Specify reaction medium, water activity, solvent, oil phase, alcohol concentration, pH, temperature, and reaction time.
  • Check carrier compatibility with solvents, surfactants, alcohols, acids, bases, glycerol, salts, and cleaning conditions.
  • Assess particle size, pore access, mass transfer, agitation, filtration, pressure drop, and reactor geometry.
  • Measure reuse cycles and activity retention under the actual reaction and recovery protocol.

Product fit

  • Choose source lipase according to substrate preference, selectivity, alcohol tolerance, thermal profile, and reaction class.
  • Review immobilization method, carrier material, enzyme loading, activity unit, moisture content, storage, and release specification.
  • Define acceptable leaching, residual protein, carrier particle residue, product contamination, and documentation requirements.
  • Plan evaluation quantity, pilot quantity, annual demand, package size, and lot consistency early for reusable processes.

Reaction System Fit: Water, Solvent, Substrate, and Mass Transfer

Process factor Why it matters Evaluation recommendation
Water activity Controls the balance between hydrolysis, esterification, transesterification, enzyme flexibility, and side reactions. Measure or control water content in substrates, solvents, carrier, and enzyme preparation, especially in non-aqueous synthesis.
Solvent or neat substrate system Solvent polarity, water miscibility, and substrate solubility influence enzyme stability and mass transfer. Screen the actual solvent or solvent-free feed rather than relying only on model systems.
Alcohol or methanol exposure Short-chain alcohols can deactivate some immobilized lipases or strip water from the catalyst microenvironment. Use stepwise alcohol feeding, co-solvent strategy, or alcohol-tolerant catalyst screening for biodiesel and ester synthesis.
Substrate viscosity High-viscosity oils, fats, or solvent-free systems can limit diffusion into carrier pores. Evaluate mixing, particle size, temperature, substrate loading, and conversion rate under realistic viscosity.
Product inhibition and byproducts Glycerol, water, acids, alcohols, salts, or polar byproducts can accumulate on the carrier and reduce activity. Track catalyst performance over cycles and consider washing, staged dosing, or byproduct removal.
Reactor format Stirred batch, repeated batch, packed bed, fluidized bed, and membrane systems impose different mechanical and mass-transfer stresses. Test particle integrity, pressure drop, channeling, agitation damage, and catalyst recovery method before scale-up.

Reuse Evaluation and Operational Stability

Reuse is often the reason to choose immobilized lipase, but reuse data must be generated under realistic conditions. A simple wash-and-retest assay may overestimate performance in a real reaction containing oils, alcohols, glycerol, acids, solvents, or solids.

Cycle Definition

Define each cycle by catalyst amount, substrate charge, reaction time, conversion target, recovery method, wash conditions, and storage between cycles.

Activity Retention

Track conversion rate or residual activity after each cycle, not only final conversion after long reaction times that may hide rate loss.

Leaching Assessment

Measure protein or activity in filtrate when product contamination, regulatory expectations, or continuous operation makes enzyme leaching important.

Particle Integrity

Check bead breakage, dust formation, swelling, fouling, color change, and filtration behavior during repeated use.

Cleaning and Regeneration

Evaluate whether solvent wash, buffer wash, drying, or mild regeneration restores performance or causes additional activity loss.

Cost-in-Use

Compare enzyme price together with dose, conversion, selectivity, reuse cycles, product yield, processing time, and downstream separation cost.

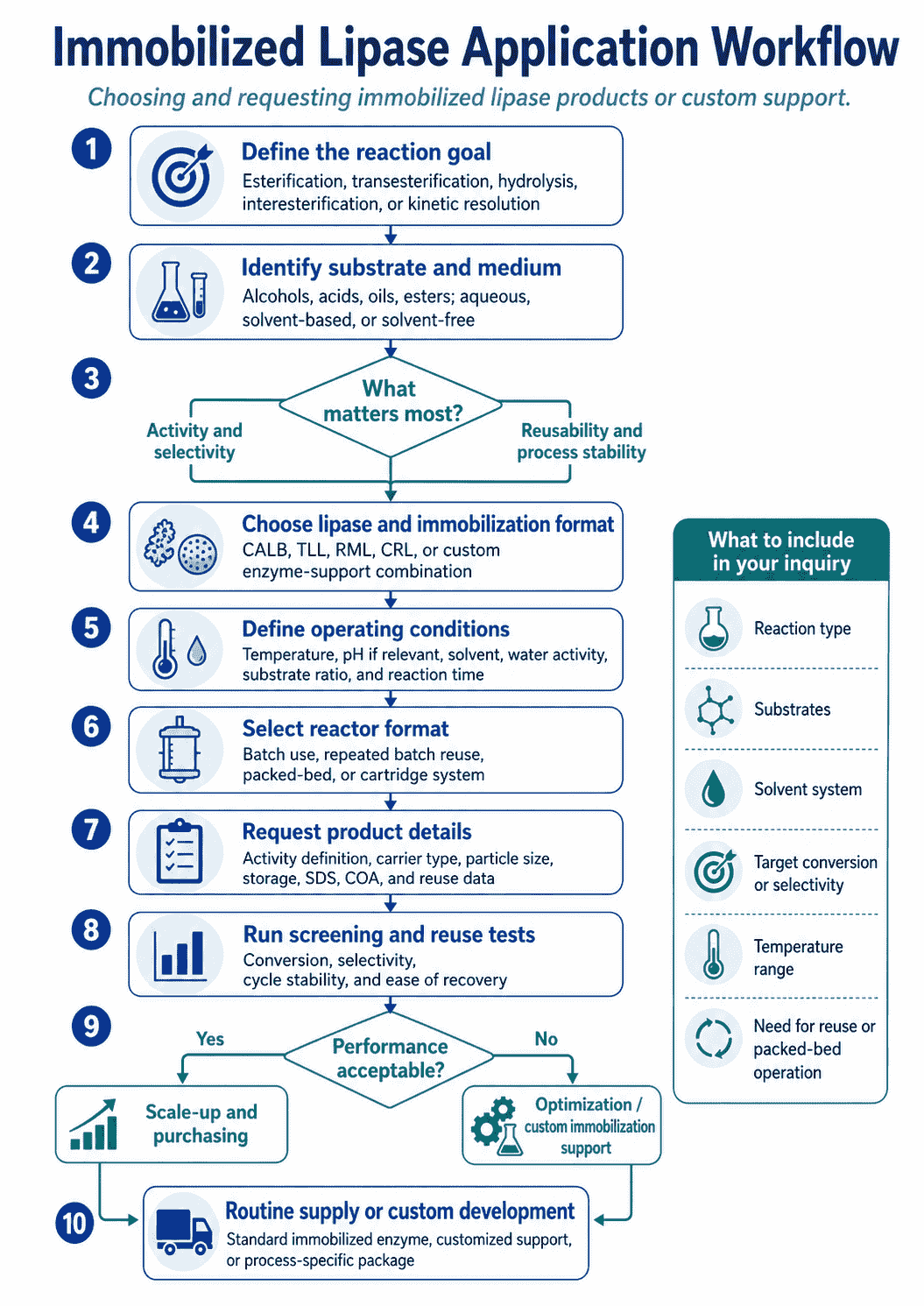

Application workflow for choosing and requesting Immobilized Lipase products or custom support

Activity Testing and Product Performance Metrics

Immobilized lipase performance should be measured with both enzyme activity assays and reaction-specific outcomes. The best test depends on whether the target is hydrolysis, esterification, transesterification, oil modification, or repeated reuse.

Metric Best use Interpretation note
pNP ester or colorimetric activity Rapid comparison of lipase activity and lot consistency under defined conditions. Useful for QC, but may not predict performance in oils, solvents, alcohol-rich systems, or packed beds.
Titrimetric hydrolysis assay Monitoring fatty acid release from triglycerides, olive oil emulsions, tributyrin, or process substrates. Emulsion stability, interfacial area, pH-stat settings, and carrier particles can affect apparent activity.
GC, HPLC, or GC-FID conversion analysis Quantifying esterification, transesterification, biodiesel conversion, glyceride profile, or specialty ester formation. Recommended when selectivity, yield, and byproduct profile matter more than model activity.
Water content and acid value Controlling non-aqueous reactions and oil modification workflows. Water and free fatty acids can shift equilibrium, side reactions, and enzyme stability.
Protein leaching or filtrate activity Assessing product contamination risk and immobilization robustness. Important for repeated use, food-related processes, high-value products, and continuous reactors.
Reuse cycle performance Evaluating operational lifetime under real reaction, recovery, washing, and storage conditions. Track conversion rate, selectivity, particle loss, mass balance, and activity retention across cycles.

Recommended Immobilized Lipase Evaluation Workflow

  1. Define the reaction target

    Clarify reaction type, substrate structures, conversion target, selectivity, product purity, reaction medium, and reuse expectation.

  2. Shortlist catalyst candidates

    Compare lipase source, immobilization method, carrier, activity unit, particle size, moisture, solvent tolerance, and supply format.

  3. Screen under realistic conditions

    Use the intended substrate, solvent or oil phase, water content, temperature, enzyme dose, agitation, and reaction time.

  4. Measure conversion and selectivity

    Use GC, HPLC, titration, acid value, glyceride profile, chiral analysis, or other application-specific methods.

  5. Evaluate reuse and leaching

    Run repeated cycles with defined recovery, washing, and storage conditions while checking residual activity and product contamination.

  6. Define supply and QC

    Translate the selected catalyst into product form, activity specification, packaging, documentation, storage, pilot quantity, and bulk supply plan.

Quality Checks and Professional Cautions

Free Lipase Data May Not Translate

Immobilization can change activity, selectivity, solvent tolerance, and substrate access. Confirm performance with the immobilized product.

Model Assays Can Mislead

pNP ester or emulsion assays are useful for QC but may not predict performance in neat oil, solvent-free reactions, biodiesel, or high-viscosity substrates.

Water Must Be Controlled

Too much water can drive hydrolysis; too little water can reduce enzyme flexibility or stability. Water content should be tracked in feed, enzyme, and solvent.

Leaching Is Application-Dependent

Some processes tolerate minor leaching; food, pharma-related, high-purity, and continuous processes may require stricter leaching limits.

Carrier Effects Are Real

Swelling, fouling, pore diffusion, hydrophobicity, particle breakage, and pressure drop can dominate scale-up behavior.

Reuse Should Be Process-Specific

Reuse data from a clean model reaction may not reflect repeated operation with real feedstocks, impurities, alcohols, glycerol, or cleaning steps.

Product Form, Custom Immobilization, and Bulk Supply

Creative Enzymes can help match immobilized lipase format and supply plan to the project stage, from initial reaction screening to pilot trials and recurring production use.

Catalog Product Supply

Evaluation quantities for reaction screening, substrate compatibility, solvent tolerance, and reuse testing.

Activity-Defined Lot

Lots released against defined activity methods, with optional application-specific conversion or reuse checks.

Custom Immobilization

Discussion of carrier, adsorption, covalent attachment, enzyme loading, particle size, and process-specific immobilization goals.

Custom Formulation

Review of moisture, stabilizer, carrier handling, packaging, storage, shipping, and compatibility with the reaction medium.

Pilot and Scale-Up Support

Evaluation of batch reuse, packed-bed feasibility, pressure drop, filtration, particle integrity, and catalyst lifetime.

Bulk and Recurring Supply

Planning for production quantity, package size, annual forecast, lot reservation, documentation, and procurement schedule.

Information Needed for an Immobilized Lipase Inquiry

A complete inquiry helps determine whether a catalog immobilized lipase, custom screening, custom immobilization, or bulk supply route is most appropriate.

Reaction and substrate details

  • Reaction type, substrate names, feed composition, target conversion, selectivity, product specification, and current benchmark catalyst.
  • Reaction medium, solvent, water content, alcohol concentration, pH if aqueous, temperature, time, agitation, and reactor format.
  • Analytical method such as titration, acid value, GC, GC-FID, HPLC, chiral analysis, glyceride profile, or product purity test.
  • Known inhibitors, impurities, solids, salts, surfactants, free fatty acids, glycerol, solvents, or cleaning agents.

Catalyst and supply details

  • Preferred lipase source, immobilization method, carrier type, particle size, product form, moisture, and acceptable leaching level.
  • Required reuse cycles, activity retention target, recovery method, wash conditions, and storage between cycles.
  • Evaluation quantity, pilot quantity, annual forecast, package size, storage, shipping, and shelf-life expectations.
  • Required documents such as COA, SDS, source statement, assay method summary, microbial limits, allergen statement, or custom quality forms.

Immobilized Lipase FAQs

  • Q: Why choose immobilized lipase instead of free lipase?

    A: Immobilized lipase can simplify recovery, enable reuse, reduce enzyme contamination in product, and support continuous processing. It may also improve stability or selectivity, but performance must be confirmed in the target reaction.

  • Q: Does immobilization always improve activity?

    A: No. Immobilization can improve operational stability or handling, but it can also reduce apparent activity through mass-transfer limits or restricted enzyme motion. Process testing is required.

  • Q: Which immobilized lipase is best for biodiesel?

    A: The best catalyst depends on oil feedstock, alcohol type, water content, free fatty acids, glycerol management, temperature, reactor format, and reuse target. Alcohol tolerance and repeated-cycle data are especially important.

  • Q: How should reuse be measured?

    A: Define cycle length, substrate charge, recovery method, wash conditions, and storage between cycles. Track conversion rate, selectivity, activity retention, leaching, particle integrity, and product quality.

  • Q: Can Creative Enzymes support custom immobilization?

    A: Yes. Support can include carrier discussion, adsorption or covalent immobilization strategy, reaction-specific screening, leaching assessment, custom formulation, and bulk supply planning.

  • Q: What information is needed for a quote?

    A: Provide reaction type, substrates, medium, water content, temperature, target conversion, reuse target, preferred carrier or lipase source, quantity, documentation needs, and project timeline.

Discuss Immobilized Lipase Selection with Creative Enzymes

Creative Enzymes can help review reaction chemistry, lipase source, carrier format, immobilization method, water and solvent conditions, reuse strategy, activity assay, QC requirements, documentation needs, and custom or bulk immobilized lipase supply options.

Request Immobilized Lipase Support View Lipase Selection Guide
