Bioprocess Development for Biocatalytic Reactions

A practical guide to moving an enzyme-catalyzed reaction from laboratory feasibility toward a reproducible, scalable, and economically meaningful biocatalytic process.

Bioprocess development begins after a biocatalytic reaction has shown enough promise to justify deeper evaluation. At this stage, the question changes from "Can the enzyme make the product?" to "Can this reaction be operated at useful concentration, productivity, selectivity, stability, and cost?" The answer depends on catalyst format, reaction engineering, substrate loading, mass transfer, cofactor strategy, impurity control, downstream separation, and scale-up behavior.

A strong development plan connects chemistry and bioprocess engineering. Conversion alone is not enough. A reaction with high analytical conversion at low substrate loading may still fail if enzyme loading is excessive, cofactor cost is high, product isolation is difficult, mixing is poor, or the enzyme cannot be supplied consistently. This guide outlines the technical checks needed to turn a biocatalytic hit into a development-ready process concept.

Request Project Support Explore Biocatalysis Services

Bioprocess development is a staged risk-reduction exercise. Each stage should make the next decision easier: whether to optimize conditions, engineer the enzyme, change catalyst format, redesign cofactor support, improve separation, or stop the route before scale-up cost grows.

Define Process Metrics beyond Conversion

Conversion is important, but it is only one part of a biocatalytic process. Development decisions should also consider substrate concentration, isolated or assay yield, selectivity, product titer, volumetric productivity, catalyst loading, total turnover number, cofactor turnover, impurity profile, reaction time, and downstream recovery. A process with 95% conversion at 5 mM substrate may be less useful than one with 80% conversion at 200 mM substrate if the latter can be isolated cleanly and operated with lower enzyme cost.

The right metrics depend on the application. For pharmaceutical intermediates, enantiomeric excess, impurity control, documentation, and scalable isolation may dominate. For specialty chemicals, productivity, enzyme cost, solvent use, and product recovery may be central. For biomass or polymer applications, viscosity, solids handling, product distribution, and batch consistency may matter more than a single small-molecule yield. The development plan should state which metrics are primary and which are constraints.

Metric	What It Indicates	Development Use
Substrate loading	How concentrated the reaction can run while maintaining solubility, stability, and selectivity.	Links laboratory activity to process titer, reactor volume, downstream load, and productivity.
Product titer	Amount of desired product per reaction volume.	Helps evaluate isolation feasibility, equipment demand, and process intensity.
Volumetric productivity	Product formed per volume per time.	Shows whether reaction rate and residence time are practical for development.
Enzyme loading and TTN	Amount of catalyst required and product formed per catalyst amount.	Connects catalyst performance with enzyme production cost and dosing strategy.
Selectivity and impurity profile	Whether the route produces the desired isomer or product with acceptable side products.	Determines whether downstream purification can realistically deliver the required quality.
Isolated yield or recovery	Product retained after workup, extraction, crystallization, filtration, or chromatography.	Prevents overvaluing analytical conversion when product isolation is poor.

Substrate Loading, Feeding, and Product Inhibition

Substrate loading is often the first development stress test. Increasing concentration can expose poor solubility, substrate inhibition, phase separation, enzyme deactivation, pH drift, viscosity, heat-transfer issues, or byproduct formation. A loading study should therefore be paired with analytical confirmation, not treated as a simple concentration increase. The best condition may use controlled feeding, cosolvent, pH-stat operation, slurry handling, biphasic extraction, or product removal rather than one high initial charge.

Product inhibition and equilibrium limitations should be investigated early. In some reactions, product accumulation slows conversion or changes selectivity. In others, coproduct buildup, cofactor imbalance, or unfavorable equilibrium prevents high final yield. Spiking experiments with substrate, product, intermediate, and coproducts can reveal whether the process is limited by catalysis, inhibition, thermodynamics, or physical availability.

For poorly soluble substrates, the process may need a practical solubilization strategy. Cosolvents can help but may destabilize the enzyme or complicate isolation. Surfactants, cyclodextrins, emulsions, two-phase systems, substrate feeding, or enzyme immobilization may be useful in selected cases, but each must be tested for effects on enzyme activity, mass transfer, analytics, and downstream separation.

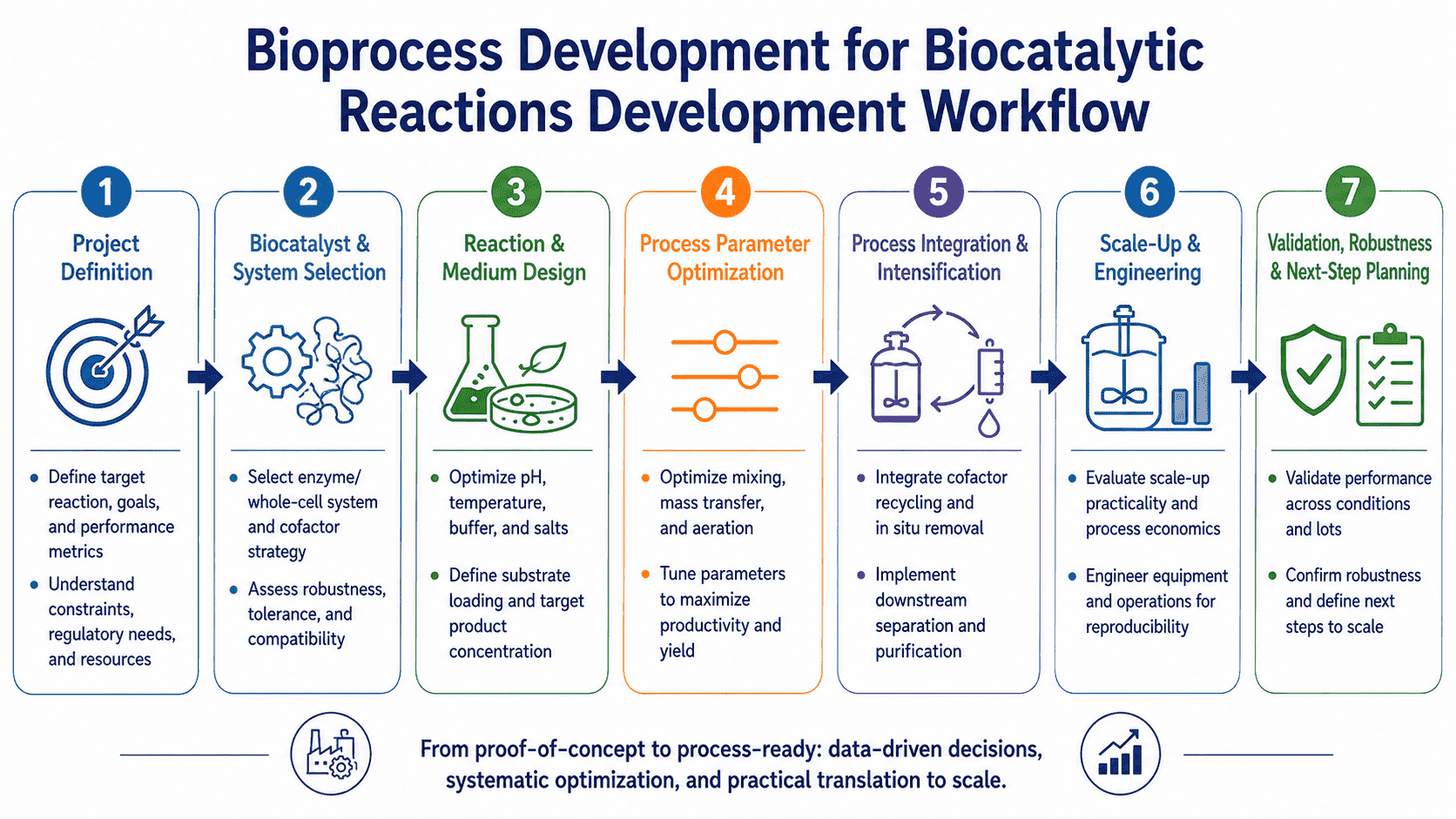

Workflow for bioprocess development for biocatalytic reactions from process metric definition and loading studies to catalyst supply, mass transfer, downstream separation, and scale validation — Workflow from metric definition and substrate loading through catalyst supply, mass-transfer checks, downstream separation, and scale validation.

Catalyst Format, Supply, and Stability

The catalyst format influences every part of the process. Purified enzyme gives cleaner interpretation and may be preferred when product purity, assay clarity, or regulatory documentation matters. Crude lysate can reduce preparation cost and speed early testing, but it may introduce background activity, host-cell impurities, and variable composition. Whole-cell catalysts can support cofactor recycling and protect intracellular enzymes, but they add mass-transfer barriers and endogenous metabolism. Immobilized catalysts can support reuse or flow operation, but they must be evaluated for activity retention, leaching, and diffusion limitations.

Supply strategy should be considered before scale-up. A process that requires high enzyme loading may still be viable if the enzyme expresses well, can be produced reproducibly, and remains stable during storage and shipping. It may be weak if the enzyme is difficult to express, requires expensive purification, or loses activity quickly after formulation. Stability tests should include storage, freeze-thaw exposure, reaction incubation, solvent exposure, and shear or mixing conditions relevant to the intended process.

Catalyst Format	Process Advantage	Development Risk
Purified soluble enzyme	Clear activity normalization, lower matrix interference, and easier product-quality interpretation.	Purification cost and stability may limit large-scale use unless productivity is high.
Crude lysate or partially purified enzyme	Fast preparation and potentially lower catalyst preparation cost for early studies.	Host enzymes, nucleic acids, salts, and variable background can affect reaction and downstream workup.
Whole-cell catalyst	Can support cofactor regeneration, protect enzymes, and simplify catalyst production.	Transport limitations, side metabolism, cell lysis, and product adsorption must be controlled.
Immobilized enzyme	Enables reuse, simpler separation, continuous processing, or improved operational stability.	Mass transfer, leaching, pressure drop, and activity loss after immobilization may reduce value.
Engineered or evolved variant	Can improve activity, selectivity, stability, expression, or substrate scope.	Improved screening performance must be confirmed under process-relevant loading and conditions.
Multi-enzyme system	Can couple equilibrium, cofactor regeneration, or intermediate consumption in one route.	Enzyme compatibility, step rate balance, cofactor supply, and intermediate tracking become critical.

Mass Transfer, Mixing, Oxygen, and Heat Control

Biocatalytic reactions can be limited by physical transport as much as enzyme activity. Insoluble substrates, viscous feeds, emulsions, gas-dependent oxidations, immobilized particles, whole cells, and high-solids biomass systems can all show apparent low activity because substrate cannot reach the enzyme fast enough. Mixing speed, impeller type, particle size, gas transfer, phase ratio, and feed strategy may change performance even when the chemical composition is unchanged.

Oxygen-dependent enzymes require particular care. Oxidases, oxygenases, monooxygenases, and some cascade systems may need controlled oxygen transfer, but excessive aeration can cause foaming, evaporation, oxidative damage, or peroxide accumulation. Peroxide-forming reactions may require catalase or other peroxide-management strategies. The process should distinguish oxygen limitation from enzyme limitation before optimization decisions are made.

Heat control can also matter. Some biocatalytic reactions are run at mild temperatures, but larger volumes can still show local temperature gradients, especially when substrate addition, mixing, or exothermic chemical steps are involved. Temperature affects rate, solubility, enzyme lifetime, and selectivity, so a scale-relevant temperature profile should be part of process confirmation.

Cofactor Economics and Auxiliary Systems

Many biocatalytic processes depend on cofactors or auxiliary reagents. NADH, NADPH, PLP, FAD, FMN, SAM, ATP, CoA, metal ions, heme, oxygen, peroxide, and amine donors can all affect technical feasibility and cost. At development stage, the cofactor strategy should be evaluated by product formation, cofactor turnover, coproduct effects, regeneration efficiency, and downstream compatibility.

Cofactor regeneration can make a route practical, but it can also introduce new limitations. Glucose dehydrogenase regeneration creates gluconate and can shift pH. Alcohol dehydrogenase regeneration may require sacrificial alcohol and generate ketone byproduct. Formate dehydrogenase releases CO2. Whole-cell systems may regenerate cofactors but create side metabolism. The regeneration system should be tested with the target substrate and final analytical method, because cofactor consumption alone does not prove productive reaction.

Cofactor or Support Issue	Process Concern	Recommended Development Check
NADH or NADPH regeneration	Cofactor cost, pH drift, coproduct accumulation, and uncoupled turnover.	Track desired product, cofactor state, coproducts, final pH, and total turnover number.
PLP-dependent amination	Equilibrium, amine donor loading, product inhibition, and carbonyl substrate solubility.	Measure both amine product and carbonyl conversion; test donor strategy and removal of inhibitory coproducts.
Oxygen or peroxide supply	Gas transfer, oxidative enzyme damage, over-oxidation, peroxide toxicity, and foaming.	Run oxygen-transfer or peroxide-management checks with residual activity and impurity monitoring.
Metal ion dependence	Activation, inhibition, precipitation, chelation, or downstream removal issues.	Compare metal addition, chelator controls, impurity profile, and final product requirements.
Whole-cell cofactor support	Cell transport, side metabolism, biomass handling, and product adsorption.	Use cell controls, metabolite checks, product recovery studies, and activity normalization by biomass.
Multi-enzyme regeneration	Rate balance between main enzyme and auxiliary enzyme.	Optimize enzyme ratio and confirm that auxiliary activity does not create side reactions or analytical interference.

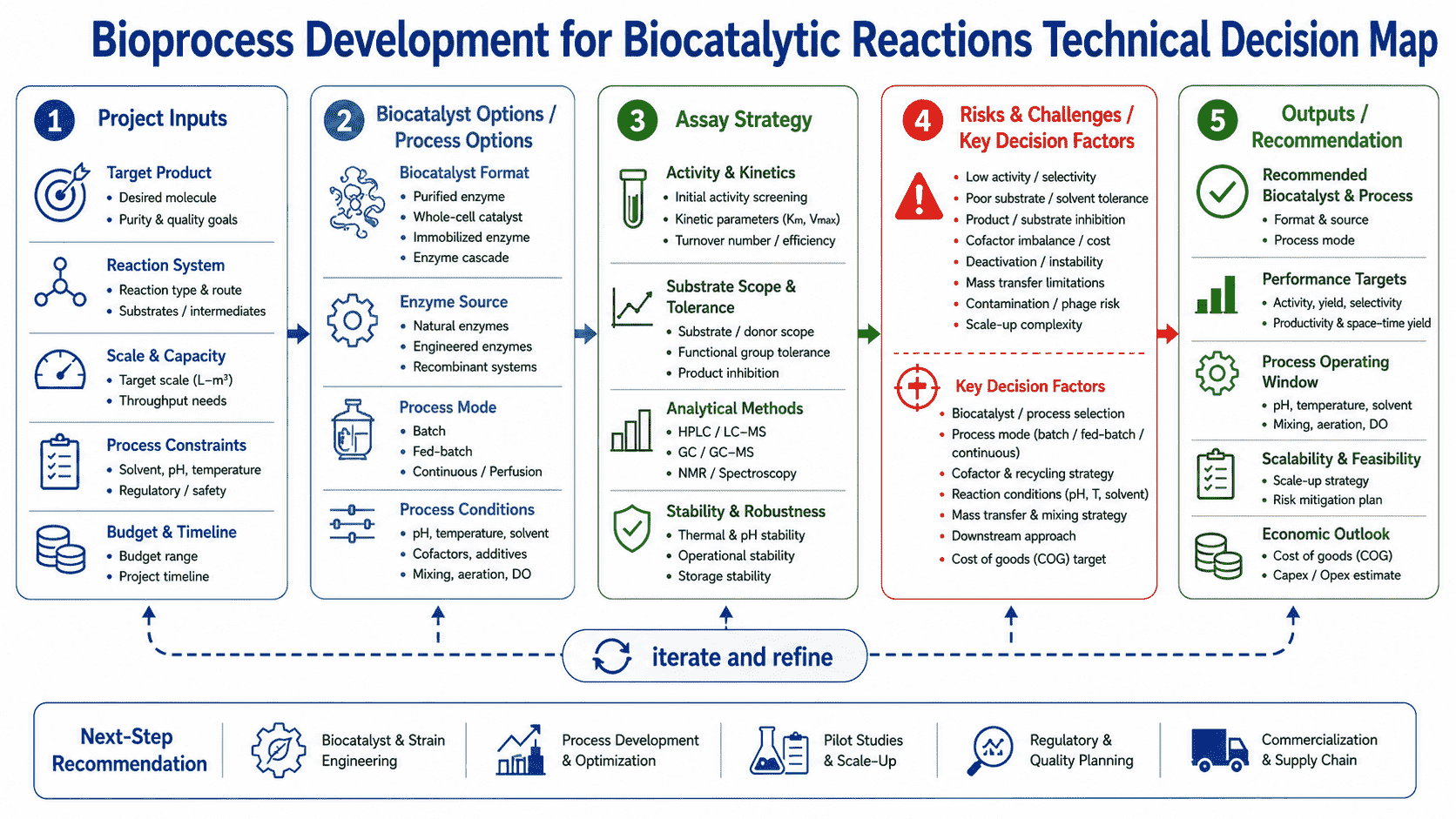

Decision map for bioprocess development of biocatalytic reactions showing metrics, catalyst format, substrate loading, mass transfer, cofactor economics, downstream recovery, and scale-up validation — Decision map linking process metrics, catalyst format, substrate loading, mass transfer, cofactor economics, downstream recovery, and scale-up validation.

Downstream Separation and Product Quality

Downstream separation should be considered during reaction development, not after optimization is complete. Buffer salts, proteins, cells, immobilized carrier fines, cofactors, donors, coproducts, cosolvents, surfactants, emulsions, and residual substrate can all affect extraction, crystallization, filtration, chromatography, distillation, or product formulation. A condition that gives high conversion may be less useful if it creates a difficult workup.

Product quality requirements determine how much downstream work is acceptable. Chiral intermediates need control of stereoisomers. Pharmaceutical-related products may require impurity identification and reproducible analytical methods. Food, cosmetic, textile, pulp, detergent, or biomass applications may focus more on performance specification, residual enzyme activity, color, odor, viscosity, or product distribution. The process should define product acceptance criteria early.

Downstream Issue	Why It Can Limit the Process	Development Response
Protein or cell removal	Residual soluble enzyme, host proteins, or cells can contaminate product or interfere with isolation.	Compare filtration, centrifugation, precipitation, immobilization, or heat-treatment options with product stability checks.
Cofactor and auxiliary reagent residues	Regeneration systems may leave salts, sugars, acids, amines, alcohols, or ketones in the product stream.	Track coproducts and choose regeneration chemistry compatible with final purification.
Emulsion or phase behavior	Cosolvents, surfactants, proteins, and hydrophobic substrates can complicate extraction or phase split.	Run small workup tests during condition screening rather than waiting for preparative scale.
Product instability	Product may hydrolyze, oxidize, racemize, crystallize prematurely, or adsorb to biomass or carriers.	Evaluate pH, temperature, hold time, quench, extraction timing, and stabilizing conditions.
Impurity profile	Side products can be difficult to separate even when conversion is high.	Use product-specific analytics and optimize selectivity before committing to scale.
Solvent and buffer burden	High salt or solvent levels may increase waste, cost, or isolation complexity.	Balance reaction performance against downstream volume, solvent recovery, and waste handling.

Scale-Up Validation and Risk Staging

Scale-up should be staged. A reaction that works in a microplate or vial should be retested in a controlled small reactor or larger flask before being used to justify process decisions. The scale-relevant experiment should test mixing, addition order, pH control, temperature control, gas transfer, sampling, hold times, catalyst addition, and product recovery. It should also use representative substrate quality and enzyme batch where possible.

Risk staging helps decide where to invest. If the enzyme is unstable, engineering or formulation may be needed before scale work. If substrate loading fails, solubility and feeding studies should come first. If downstream recovery is poor, reaction optimization alone will not solve the process. If cofactor cost dominates, regeneration strategy should be redesigned. A clear stage-gate plan prevents development from chasing the wrong bottleneck.

Development Stage	Main Question	Evidence Needed
Route feasibility	Can the enzyme make the desired product from the target substrate?	Product identity, selectivity, conversion, controls, and basic reaction conditions.
Condition development	Which variables most improve useful performance?	pH, temperature, loading, solvent, cofactor, enzyme loading, and time-course data.
Process intensification	Can titer, productivity, and catalyst efficiency be raised?	Substrate loading study, feeding strategy, enzyme loading study, TTN, and product inhibition checks.
Downstream check	Can product be recovered at acceptable quality and yield?	Workup trial, impurity profile, recovery, residual protein or cells, and product stability.
Scale-relevant demonstration	Does performance hold in a more realistic format?	Controlled reaction record, mass balance, productivity, reproducibility, pH and temperature profile, and sampling plan.
Next-step recommendation	Should the project proceed to engineering, production, immobilization, or larger scale?	Integrated review of performance, cost drivers, technical risks, and remaining development gaps.

Confirm the baseline route

Verify product identity, selectivity, conversion, and assay controls under a reproducible starting condition.
Quantify process metrics

Measure titer, productivity, enzyme loading, substrate loading, selectivity, and product recovery rather than conversion alone.
Identify the bottleneck

Separate catalytic, physical, cofactor, stability, inhibition, and downstream limitations through targeted experiments.
Stage process improvements

Optimize feeding, catalyst format, cofactor strategy, mass transfer, and workup according to the limiting factor.
Validate at relevant scale

Confirm the selected condition in a format that reflects future handling, mixing, sampling, separation, and documentation needs.

Project Inputs for Bioprocess Development

A useful request should include the target reaction, substrate and product structures, enzyme identity or candidate status, current reaction condition, analytical method, best conversion and selectivity data, desired substrate loading, scale target, catalyst format, cofactor system, and downstream expectations. Failed or problematic conditions should also be included because they often identify the real development bottleneck.

If the project is moving toward scale-up, include intended reactor format, mixing limitations, gas or oxygen requirement, solvent restrictions, product isolation method, impurity concerns, enzyme supply expectations, documentation needs, and target timeline. If the project is still at early stage, state whether the goal is feasibility confirmation, condition optimization, productivity improvement, or a stage-gate recommendation.

Request Details for Bioprocess Development for Biocatalytic Reactions

A clear request helps Creative Enzymes determine whether the best next step is reaction optimization, enzyme production, cofactor strategy design, immobilization, enzyme engineering, downstream evaluation, or scale-up support.

Target substrate, product, reaction scheme, product standard availability, and required selectivity or purity.
Current enzyme candidate, source, format, expression or supply status, activity units, and storage condition.
Current reaction condition: pH, buffer, temperature, time, substrate loading, enzyme loading, solvent, additives, and cofactors.
Available data: conversion, yield, ee or product ratio, impurity profile, time course, residual activity, and reproducibility.

Known bottlenecks such as solubility, substrate inhibition, product inhibition, cofactor cost, oxygen transfer, enzyme instability, or poor workup.
Target process metrics: titer, productivity, enzyme loading, TTN, reaction time, scale, yield, and recovery.
Downstream expectations: extraction, crystallization, filtration, chromatography, residual protein, cells, carrier removal, or product formulation.
Timeline, sample availability, safety concerns, documentation needs, and decision expected from the development work.
