Enzyme Immobilization and Reuse Evaluation

A practical guide to selecting immobilization formats, measuring activity retention, and evaluating whether an immobilized enzyme can improve reuse, stability, handling, or process economics.

Enzyme immobilization can make a biocatalyst easier to separate, reuse, stabilize, and operate in batch or continuous processes. It may also enable packed-bed reactions, improve tolerance to solvents or temperature, reduce product contamination by soluble protein, and support lower enzyme cost per unit product. However, immobilization is not automatically beneficial. The same carrier or chemistry that improves stability can reduce apparent activity, introduce mass-transfer limitations, cause enzyme leaching, or change selectivity.

A meaningful reuse evaluation must therefore compare immobilized performance against the soluble enzyme under reaction-relevant conditions. The key question is not only whether the enzyme can be immobilized, but whether the immobilized catalyst gives enough retained activity, operational lifetime, mechanical robustness, and productivity to justify the added preparation and validation work.

Request Project Support Explore Biocatalysis Services

Good immobilization work treats the carrier, enzyme, reaction, and separation method as one system. The best immobilized catalyst is not always the one with the highest loading; it is the one that gives reliable activity, acceptable mass transfer, low leaching, and useful lifetime in the intended reaction format.

When Immobilization Is Worth Evaluating

Immobilization is most useful when enzyme recovery or operational stability is a real limitation. If a soluble enzyme is expensive, difficult to remove, unstable under process conditions, or needed for repeated batches, immobilization may improve the overall route. It can also help when the final product must have low residual enzyme content, when continuous operation is desirable, or when an enzyme needs a more protective microenvironment than the bulk reaction provides.

There are also cases where immobilization is not the first priority. If soluble enzyme activity is extremely low, enzyme screening, reaction condition optimization, or enzyme engineering may be more productive. If the substrate is large or polymeric, immobilization can create diffusion limits that make activity appear poor even when the enzyme itself is active. If the reaction requires frequent pH or solvent changes, the carrier must be tested under those exact conditions rather than assumed stable.

Reason to Evaluate Immobilization	What It May Improve	Risk to Check Early
High enzyme cost or limited supply	Reuse across multiple batches and lower enzyme cost contribution per product amount.	Activity loss during immobilization may outweigh reuse benefit if retained productivity is low.
Difficult enzyme removal	Simpler separation of catalyst from product stream and lower residual protein contamination.	Fine particles, carrier attrition, or enzyme leaching can still contaminate the product.
Poor soluble enzyme stability	Improved thermal, solvent, pH, or storage stability through multipoint attachment or protective carrier environment.	Rigid attachment can reduce conformational flexibility needed for catalysis.
Need for continuous processing	Packed-bed, fluidized-bed, membrane, or recirculation formats with defined catalyst residence time.	Pressure drop, channeling, fouling, and mass-transfer limitation can dominate performance.
Product inhibition or equilibrium control	Opportunity to integrate catalyst separation, product removal, or staged reaction design.	Immobilization alone does not solve thermodynamic limits unless the process design also addresses them.
Improved handling and storage	More convenient dosing, recovery, shipping, and long-term use compared with dilute soluble enzyme.	Drying, freezing, preservatives, and carrier storage conditions may reduce activity.

Choosing an Immobilization Method

Immobilization method should be chosen from the enzyme structure, reaction conditions, substrate size, required purity, reuse goal, and acceptable preparation complexity. Physical adsorption is simple and can preserve activity, but leaching may occur. Covalent attachment can improve stability and reduce leaching, but the chemistry can modify residues near the active site or distort the enzyme. Entrapment and encapsulation can protect the enzyme but may slow diffusion. Cross-linked enzyme aggregates can avoid an inert carrier but require careful control of precipitation and cross-linking conditions.

For many projects, a small matrix of immobilization approaches is more informative than one assumed method. Comparing carrier hydrophobicity, pore size, functional groups, particle size, and binding chemistry can reveal whether the limiting factor is enzyme orientation, active-site accessibility, stability, or substrate diffusion. The comparison should use the target reaction where possible, because a model substrate may not reveal the mass-transfer or selectivity issues that appear with the real substrate.

Immobilization Approach	Best Used When	Main Technical Concern
Physical adsorption	Fast screening, mild preparation, hydrophobic enzymes, or reactions where reversible binding is acceptable.	Enzyme can leach when pH, salt, solvent, surfactant, or substrate composition changes.
Covalent attachment	Low leaching and improved operational stability are required.	Reactive groups may modify essential residues or restrict conformational motion.
Affinity immobilization	Tagged recombinant enzyme, oriented attachment, or selective capture from partially purified material is desired.	Tag position, ligand stability, metal leaching, and cost of affinity carrier must be considered.
Entrapment or encapsulation	Enzyme protection is important and substrates/products are small enough to diffuse through the matrix.	Large substrates, viscous media, or polymeric materials can suffer severe diffusion limitation.
Cross-linked enzyme aggregates	Carrier-free catalyst with high enzyme content is desired.	Precipitation and cross-linking can reduce activity if active-site accessibility is lost.
Co-immobilization	Multi-enzyme cascades, cofactor regeneration, or spatial coupling is needed.	Different enzymes may require different loading, orientation, stability, and local microenvironment.

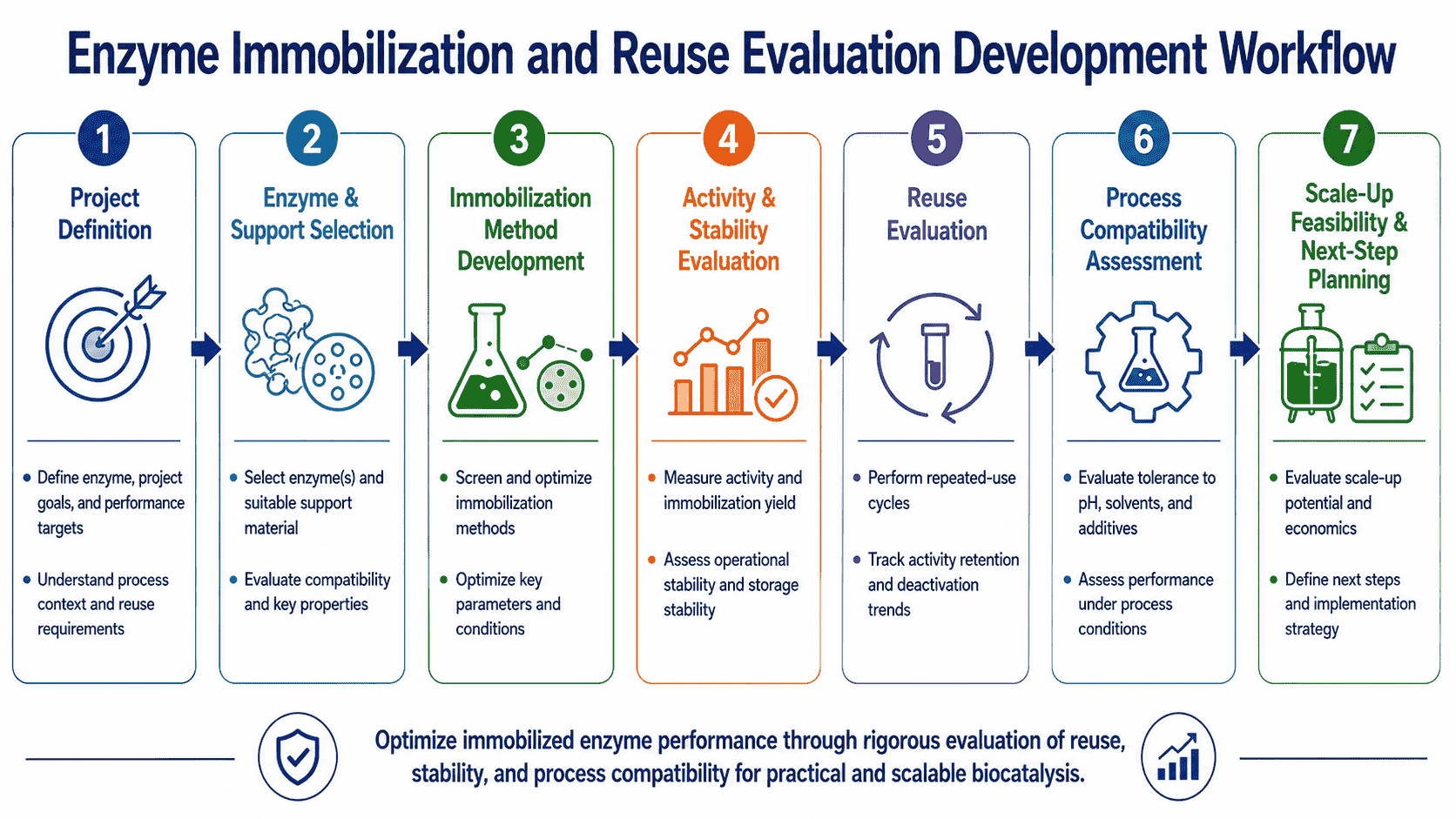

Workflow for enzyme immobilization and reuse evaluation from soluble enzyme baseline and carrier screening to activity retention, reuse cycles, stability testing, and scale decision — Workflow from soluble enzyme baseline through carrier screening, activity retention, reuse cycles, stability testing, and scale decision.

Carrier Screening and Material Properties

Carrier selection affects enzyme loading, activity recovery, stability, mass transfer, mechanical strength, separation, and regulatory or application compatibility. Important carrier properties include functional group, hydrophobicity, pore size, particle size, surface area, swelling behavior, compressibility, solvent tolerance, density, magnetic separation potential, and compatibility with the intended product stream.

High enzyme loading is not always desirable. Excess loading can crowd the surface, bury active sites, create internal diffusion gradients, or increase local product inhibition. A lower loading with higher activity per gram carrier may be more useful than maximum protein binding. For porous carriers, the relationship between substrate size and pore structure is critical. Small-molecule substrates may diffuse easily, while oligosaccharides, proteins, starch, cellulose, chitosan, lipids, or polymeric substrates may need larger pores or surface-accessible enzyme.

Carrier Property	Effect on Immobilized Catalyst	Evaluation Note
Functional group	Determines adsorption strength, covalent chemistry, orientation, and leaching risk.	Match chemistry to enzyme surface residues and avoid conditions that damage the active site.
Pore size and porosity	Controls enzyme distribution and substrate/product diffusion inside the carrier.	Use larger or surface-oriented carriers for bulky substrates and polymeric materials.
Particle size	Affects external mass transfer, separation speed, pressure drop, and mechanical handling.	Small particles may improve activity but complicate filtration or packed-bed operation.
Hydrophobicity	Can improve lipase activation or substrate partitioning but may denature sensitive enzymes.	Evaluate both initial activity and reuse stability in the real solvent or substrate system.
Mechanical strength	Determines resistance to agitation, filtration, compression, and long operation.	Check particle attrition, fines formation, and pressure drop under expected handling.
Chemical compatibility	Defines tolerance to pH, salt, solvent, oxidants, reducing agents, and cleaning steps.	Test carrier alone and enzyme-loaded carrier under reaction and storage conditions.

Activity Retention, Loading, and Mass Transfer

Activity retention should be interpreted carefully. Immobilization yield describes how much enzyme binds to or remains in the catalyst. Activity recovery describes how much measurable catalytic activity is retained after immobilization. These values can diverge sharply: a carrier may bind most of the protein but retain little activity if the enzyme is poorly oriented, chemically modified, internally diffused, or blocked by the support.

Mass transfer can make an immobilized enzyme appear less active than it truly is. Substrate must reach the enzyme and product must leave the carrier. If diffusion is slow, apparent activity may depend on mixing speed, particle size, substrate concentration, viscosity, and carrier porosity. For reactions with large substrates, oils, polymers, suspended solids, or two-phase systems, mass-transfer evaluation is not optional; it is part of the catalytic assessment.

The comparison with soluble enzyme should use equivalent reaction conditions and clear normalization. Immobilized activity may be reported per gram wet carrier, per gram dry carrier, per mg bound protein, per enzyme unit loaded, or per reactor volume. The best metric depends on the decision being made, but the report should always state how the catalyst was dosed and what baseline was used.

Reuse Cycles and Operational Stability

Reuse testing should simulate the intended process. A simple repeated-batch assay can be useful, but the wash, separation, storage between cycles, substrate concentration, reaction time, and agitation should reflect realistic use. If the catalyst is evaluated under mild model conditions, the result may overestimate performance in a solvent-rich, high-loading, high-temperature, or mechanically demanding reaction.

Operational stability includes more than enzyme activity. The catalyst must resist leaching, attrition, fouling, microbial contamination where relevant, carrier swelling or shrinkage, pH drift, and product adsorption. Loss of activity over cycles can result from enzyme denaturation, enzyme leaching, carrier breakage, active-site blockage, irreversible product binding, oxidant damage, proteolysis, or incomplete washing between cycles.

Reuse Metric	What It Shows	Why It Matters
Initial activity recovery	Activity retained after immobilization compared with soluble enzyme or loaded units.	Identifies whether the immobilization method preserves useful catalytic performance.
Immobilization yield	Fraction of enzyme bound, entrapped, or retained on the carrier.	Helps distinguish poor binding from poor activity recovery.
Residual activity per cycle	Activity remaining after each reuse cycle.	Shows practical lifetime and whether deactivation is gradual or sudden.
Cumulative productivity	Total product formed over all cycles or operation time.	Connects reuse performance to process value rather than one-cycle activity.
Leached protein or activity	Enzyme released into reaction or wash solution.	Indicates product contamination risk and loss of reusable catalyst.
Physical integrity	Particle size, fines formation, swelling, compression, or filtration behavior.	Determines whether the immobilized catalyst can be handled or scaled reliably.

Batch, Packed-Bed, and Continuous-Flow Compatibility

The best immobilization format depends on how the catalyst will be used. Repeated batch operation requires easy separation and good mechanical stability under agitation. Packed-bed operation requires particles with suitable size, low pressure drop, mechanical strength, minimal swelling, and stable activity over residence time. Fluidized-bed or membrane formats may help when solids, viscosity, or fouling limit packed beds. Magnetic carriers can simplify separation at small or medium scale but may not always be economical or mechanically appropriate for larger use.

Continuous-flow evaluation should include residence time, substrate loading, pressure drop, channeling, conversion stability, product profile, and cleaning or regeneration strategy. If the reaction requires a cofactor, the flow format must also address cofactor retention, regeneration, or downstream separation. If the substrate is poorly soluble, feed stability and precipitation risk must be tested before packed-bed operation.

Process Format	Useful Catalyst Features	Evaluation Focus
Repeated batch	Easy filtration, centrifugation, magnetic recovery, or settling with low enzyme leaching.	Cycle-to-cycle residual activity, wash loss, catalyst attrition, and cumulative productivity.
Packed-bed flow	Mechanically strong particles with controlled size, low swelling, and stable bed structure.	Residence time, pressure drop, channeling, conversion stability, and fouling resistance.
Fluidized or suspended catalyst	Particles that tolerate mixing and reduce bed clogging for complex feeds.	Attrition, separation efficiency, mass transfer, and product clarification.
Membrane-retained enzyme	Soluble or nanoparticle-bound enzyme retained while product passes through.	Membrane fouling, enzyme retention, flux, and compatibility with substrate or product.
Co-immobilized cascade	Multiple enzymes positioned for coupled reactions or cofactor regeneration.	Enzyme ratio, diffusion between steps, cofactor balance, and different deactivation rates.

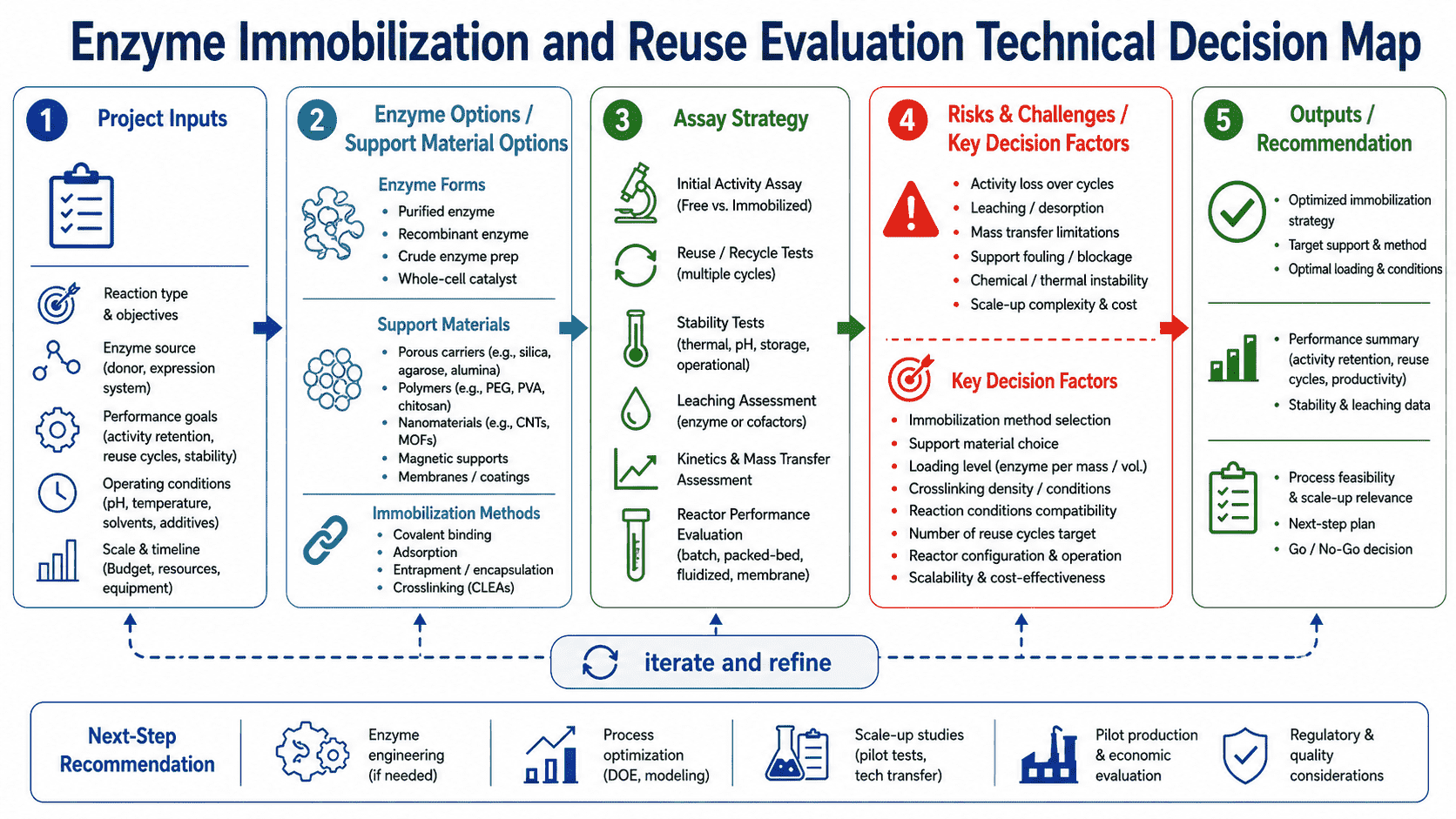

Decision map for enzyme immobilization and reuse evaluation showing method selection, carrier properties, activity retention, leaching, reuse cycles, flow compatibility, and scale decision — Decision map linking immobilization method, carrier properties, activity retention, leaching, reuse cycles, flow compatibility, and scale decision.

From Reuse Data to an Economic Decision

Reuse data should be translated into a decision about value. A catalyst that retains 90% activity after immobilization but cannot be reused may not justify the carrier cost. A catalyst that retains only 40% initial activity may still be valuable if it can be reused many times at high substrate loading and low leaching. The decision should consider enzyme cost, carrier cost, immobilization yield, catalyst preparation time, activity recovery, cycle lifetime, product concentration, downstream separation, and process format.

For process development, useful summary metrics include cumulative product per gram immobilized catalyst, total turnover number, space-time yield, productivity per reactor volume, half-life under operation, and cost contribution per kilogram or mole of product. For research or screening use, convenience, reproducibility, and ease of catalyst handling may be more important than formal process economics.

Observed Problem	Likely Cause	Practical Response
High protein loading but low activity	Unfavorable orientation, active-site blockage, excessive surface crowding, or harsh coupling chemistry.	Lower loading, test spacer arms, change attachment chemistry, compare tag position, or use milder immobilization.
Good first-cycle activity but rapid reuse loss	Enzyme leaching, denaturation, product inhibition, incomplete washing, or mechanical attrition.	Measure leached protein, improve binding strength, adjust wash protocol, test stabilizers, and inspect carrier integrity.
Lower activity with bulky substrates	Internal diffusion limitation, pore exclusion, substrate partitioning, or poor carrier wetting.	Use larger pores, surface immobilization, smaller particles, different carrier chemistry, or improved mixing.
Flow reactor pressure increases	Particle fines, carrier swelling, substrate precipitation, fouling, or channel blockage.	Adjust particle size, improve feed filtration, reduce swelling carrier, change bed design, or use suspended catalyst format.
Product contains protein activity	Enzyme leaching or carrier breakdown during reaction or washing.	Use stronger attachment, add post-immobilization blocking, change carrier, or include product clarification controls.
Selectivity changes after immobilization	Microenvironment, orientation, diffusion, local pH, or conformational restriction changes substrate access.	Measure product profile, not only conversion, and compare carriers under the same reaction condition.

Establish soluble baseline

Measure activity, selectivity, stability, and reaction limitations of the soluble enzyme under relevant conditions.
Screen immobilization formats

Compare carriers and chemistries using activity recovery, binding yield, leaching, and target-substrate performance.
Evaluate reuse cycles

Test repeated operation with realistic separation, washing, storage, and reaction conditions.
Check process format

Assess batch handling, filtration, pressure drop, flow compatibility, carrier stability, and product quality.
Decide next development step

Move to carrier refinement, condition optimization, enzyme engineering, flow testing, or soluble-enzyme route continuation based on evidence.

Project Inputs for Immobilization Evaluation

A useful inquiry should describe the enzyme, reaction, substrate, product, current soluble-enzyme performance, desired reuse target, and intended process format. Include enzyme source, purity or formulation, activity unit definition, storage condition, known stability limits, substrate loading, pH, temperature, solvent, cofactors, and analytical method.

If a carrier or immobilization method is already preferred, explain why. If the process target is repeated batch, packed-bed flow, product clarification, improved stability, or lower enzyme cost, state that priority clearly. The evaluation can then focus on the metrics that matter most instead of producing a generic carrier screen.

Request Details for Enzyme Immobilization and Reuse Evaluation

A clear request helps Creative Enzymes determine whether the best next step is carrier screening, immobilization chemistry comparison, activity recovery testing, reuse-cycle evaluation, flow compatibility testing, or broader biocatalysis process support.

Enzyme name, source, sequence or product information, purity, formulation, activity unit, and available amount.
Target substrate and product, reaction conditions, desired selectivity, analytical method, and product standard availability.
Current soluble-enzyme performance: conversion, activity, stability, enzyme loading, substrate loading, and failure mode.
Preferred immobilization approach, carrier type, tag status, or chemical constraints if already known.

Desired reuse target, cycle number, residual activity requirement, leaching tolerance, and product purity requirement.
Intended operation format: repeated batch, filtration recovery, magnetic separation, packed-bed flow, membrane retention, or immobilized cascade.
Process constraints such as solvent, pH, temperature, oxidants, surfactants, viscosity, particles, pressure drop, or cleaning steps.
Timeline, sample quantity, reporting needs, scale target, and decision expected from the evaluation.
