Imine Reductases and Reductive Aminases in Biocatalysis

Creative Enzymes Resource Guide

Imine Reductases and Reductive Aminases in Biocatalysis

A practical guide to using IREDs and RedAms for stereoselective imine reduction, reductive amination, and chiral amine route development.

Imine reductases (IREDs) and reductive aminases (RedAms) are NADPH-dependent enzymes that enable selective reduction of imines or iminium ions to amines. They are especially valuable in biocatalysis because they can form chiral amines, cyclic amines, secondary amines, and selected tertiary amines under mild conditions. In many route-design contexts, they complement transaminases by allowing direct reductive amination chemistry rather than relying only on amino-group transfer.

The practical value of an IRED or RedAm project depends on more than enzyme activity. The carbonyl substrate, amine partner, imine formation equilibrium, pH, cofactor regeneration, competing carbonyl reduction, product inhibition, and chiral analytical method all determine whether the reaction is useful. A strong development plan distinguishes true reductive amination from simple imine reduction and from background side reactions.

Request Project Support Explore Biocatalysis Services

IRED and RedAm projects are most successful when enzyme selection is connected to the actual route question: Is the imine already present? Must the enzyme form the C-N bond from a carbonyl and amine partner? Is the target a chiral secondary amine, cyclic amine, or tertiary amine? The answer changes the screen, controls, and analytics.

IREDs and RedAms: Related Enzymes with Different Route Uses

IREDs are commonly used to reduce preformed imines or cyclic imines to amines. RedAms are closely related but are especially useful for reductive amination, where a carbonyl compound and amine partner form an imine or iminium intermediate that is then reduced enzymatically. The distinction is practical rather than merely naming: if the imine intermediate is stable and available, an IRED screen may be appropriate; if the route depends on forming the imine in situ from ketone or aldehyde plus amine, a RedAm-focused strategy may be more useful.

Both enzyme classes commonly rely on NADPH, although cofactor preference and activity can vary by enzyme. Many IREDs and RedAms show stereoselectivity in hydride delivery, which can provide access to enantioenriched amines. However, activity and selectivity are highly substrate-dependent. A strong hit for one cyclic imine may not work for a bulky acyclic imine, and a RedAm that accepts one amine partner may reject another because imine formation, binding, or reduction is unfavorable.

Enzyme or Route Option Best Used For Key Technical Question
Imine reductase (IRED) Reduction of preformed imines, cyclic imines, or iminium-like substrates to amines. Is the imine substrate stable, soluble, and accepted by an enzyme with the desired stereopreference?
Reductive aminase (RedAm) Direct reductive amination from carbonyl compound and amine partner. Can the enzyme support both imine formation and selective enzymatic reduction under one compatible condition?
Transaminase alternative Primary chiral amine synthesis when amino-group transfer is feasible. Would TA chemistry be simpler if donor strategy and equilibrium are manageable?
KRED plus chemical amination route Routes where carbonyl reduction or alcohol intermediate chemistry is preferred. Does a different redox or chemical sequence give better selectivity or substrate loading?
Engineered IRED or RedAm Weak but promising scaffold with activity, selectivity, or stability gaps. Is there a measurable parent activity and a screening assay that reflects the target amine product?
Multi-enzyme cascade In situ carbonyl formation, cofactor regeneration, or coupled equilibrium control. Are enzyme compatibility, intermediate tracking, and cofactor balance strong enough for cascade design?

Route Selection: Imine Reduction or Reductive Amination

Route selection should start with the available substrate and desired amine product. If a cyclic imine or iminium precursor is stable and can be prepared, direct IRED reduction may be the cleanest approach. If the route needs to join a ketone or aldehyde with an amine partner, RedAm-mediated reductive amination may reduce step count and avoid chemical reducing agents. For some targets, especially primary chiral amines, transaminase chemistry may still be more appropriate. For secondary or tertiary amines, IREDs and RedAms can offer route options that TAs cannot always provide.

Reductive amination is often controlled by imine formation. The carbonyl compound and amine partner must form enough reactive imine or iminium species under enzyme-compatible conditions. Water, pH, amine pKa, steric bulk, carbonyl electrophilicity, and substrate solubility all affect this equilibrium. If imine formation is slow or unfavorable, the enzyme may appear inactive even when it can reduce the imine once formed.

The route should also consider downstream workup. Excess amine donor or amine partner can complicate product isolation and analysis. Aldehydes may undergo non-enzymatic side reactions. Ketones may also be reduced by contaminating alcohol dehydrogenase activity if crude enzyme preparations are used. These points should be controlled before a screening result is interpreted.

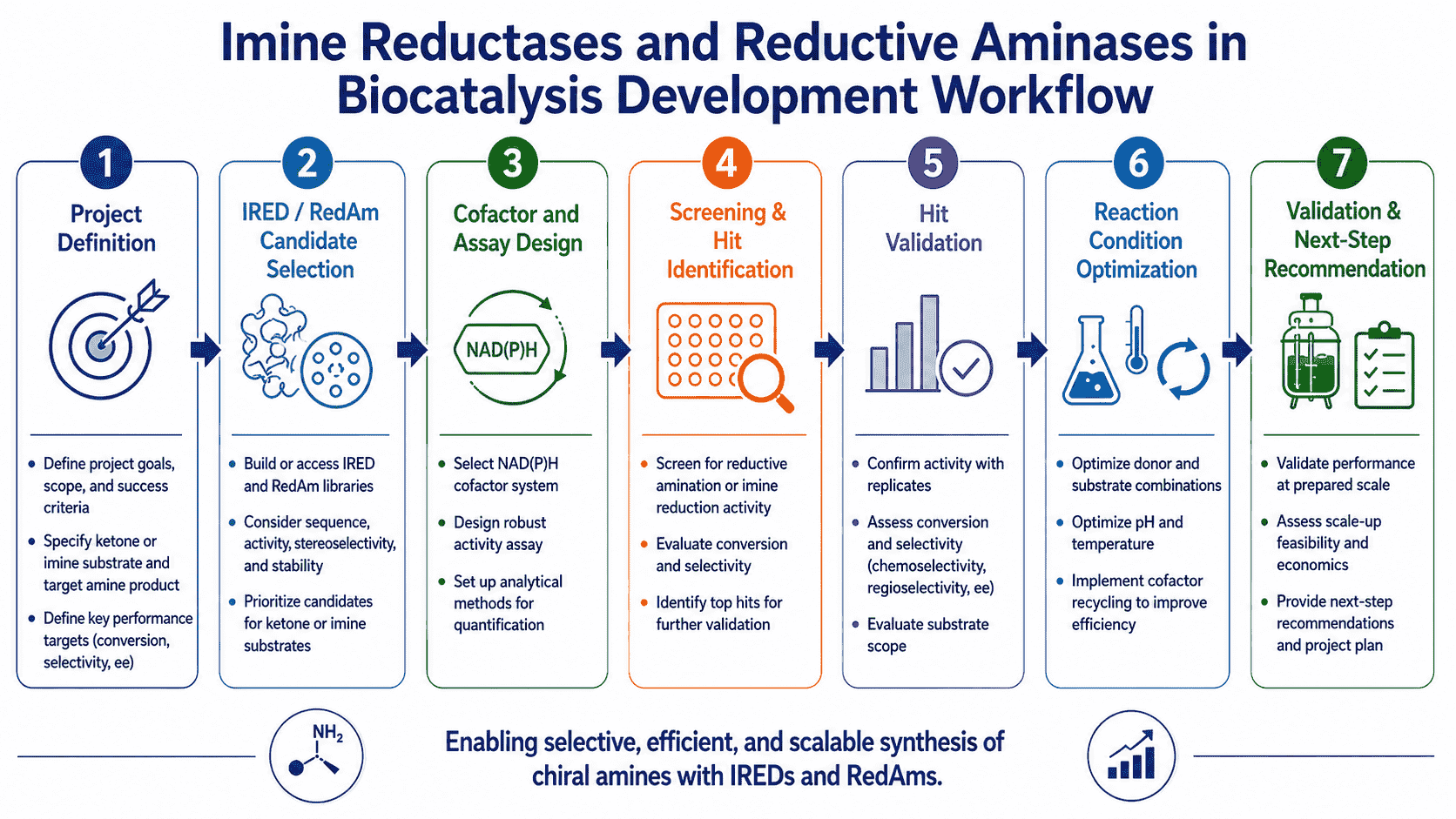

Workflow from route selection and enzyme screening through imine formation control, NADPH regeneration, product analytics, and optimization.

Substrate, Amine Partner, and Product Fit

Substrate fit for IREDs and RedAms depends on both binding and chemistry. Cyclic imines may be reduced efficiently when they match the enzyme active site, but ring size, substituent position, heteroatoms, and imine stability can strongly affect activity. Acyclic imines can be more challenging because they may be unstable, poorly populated in water, or present as mixtures of E/Z isomers. RedAm reactions add another layer: the amine partner must be compatible with imine formation and enzyme binding.

Amine partners vary widely. Small primary amines, bulky primary amines, secondary amines, anilines, heterocyclic amines, and ammonia equivalents can behave very differently. Steric bulk can reduce imine formation or enzyme binding. Basic amines can shift pH and affect enzyme stability. Poorly soluble amines can create phase behavior and analytical complications. The screening plan should therefore include amine loading, pH after amine addition, substrate recovery, and controls without enzyme.

Substrate or Partner Feature Possible Effect Screening Recommendation
Cyclic imine substrate Often suitable for IRED reduction, but ring size and substituents influence stereoselectivity. Screen stereodiverse IREDs and confirm absolute configuration of the amine product.
Acyclic imine or iminium precursor May be unstable or exist as multiple forms in aqueous media. Check imine formation and stability under assay conditions before assigning enzyme inactivity.
Ketone plus amine partner Requires in situ imine formation before RedAm reduction can occur. Optimize pH, amine loading, cosolvent, and carbonyl concentration with no-enzyme controls.
Aldehyde substrate Can react non-enzymatically, hydrate, oxidize, polymerize, or overreact with amines. Include carbonyl stability controls and product identity confirmation.
Bulky or aromatic amine May reduce imine formation rate or active-site binding. Test amine equivalents, pH, cosolvent, and related amine analogs where possible.
Secondary amine partner Can support tertiary amine formation in selected RedAm systems but may be sterically demanding. Use RedAm-focused screening and monitor for unreacted carbonyl, imine, and over-reduction side products.

NADPH Regeneration and Redox Balance

Most IREDs and RedAms use NADPH as the hydride donor. For preparative use, NADPH must usually be regenerated catalytically. Common regeneration systems include glucose dehydrogenase with glucose, formate dehydrogenase with formate, phosphite dehydrogenase, or whole-cell formats. The regeneration choice affects pH, coproducts, buffer demand, downstream purification, and reaction rate.

Cofactor turnover should not be interpreted alone. NADPH consumption can occur without desired product formation if the enzyme reduces a different substrate, if contaminating enzymes reduce the carbonyl directly to an alcohol, or if the cofactor regeneration system creates background signals. Product-specific analytics are necessary to show that the amine product is formed and that the amine partner is incorporated correctly.

Redox Design Choice Technical Role Control Requirement
NADPH versus NADH Most IREDs and RedAms prefer NADPH, but enzyme-specific preference should be confirmed. Compare cofactor conditions only with product-specific detection, not only absorbance change.
Glucose dehydrogenase regeneration Common NADPH recycling system for aqueous reactions. Monitor pH and gluconate effects, especially with amine donors and pH-sensitive substrates.
Formate dehydrogenase regeneration Can provide cleaner coproduct handling in selected systems. Confirm regeneration rate, enzyme compatibility, and final pH.
Whole-cell redox support May simplify cofactor recycling and enzyme supply. Control for transport limitation, side metabolism, cell background reduction, and product adsorption.
High cofactor loading Can help early feasibility when regeneration is not yet optimized. Use as a diagnostic condition, not as proof of process feasibility.
Coupled cascade regeneration Can integrate reductive amination with upstream or auxiliary reactions. Track every step so cofactor balance does not hide intermediate accumulation or side reactions.

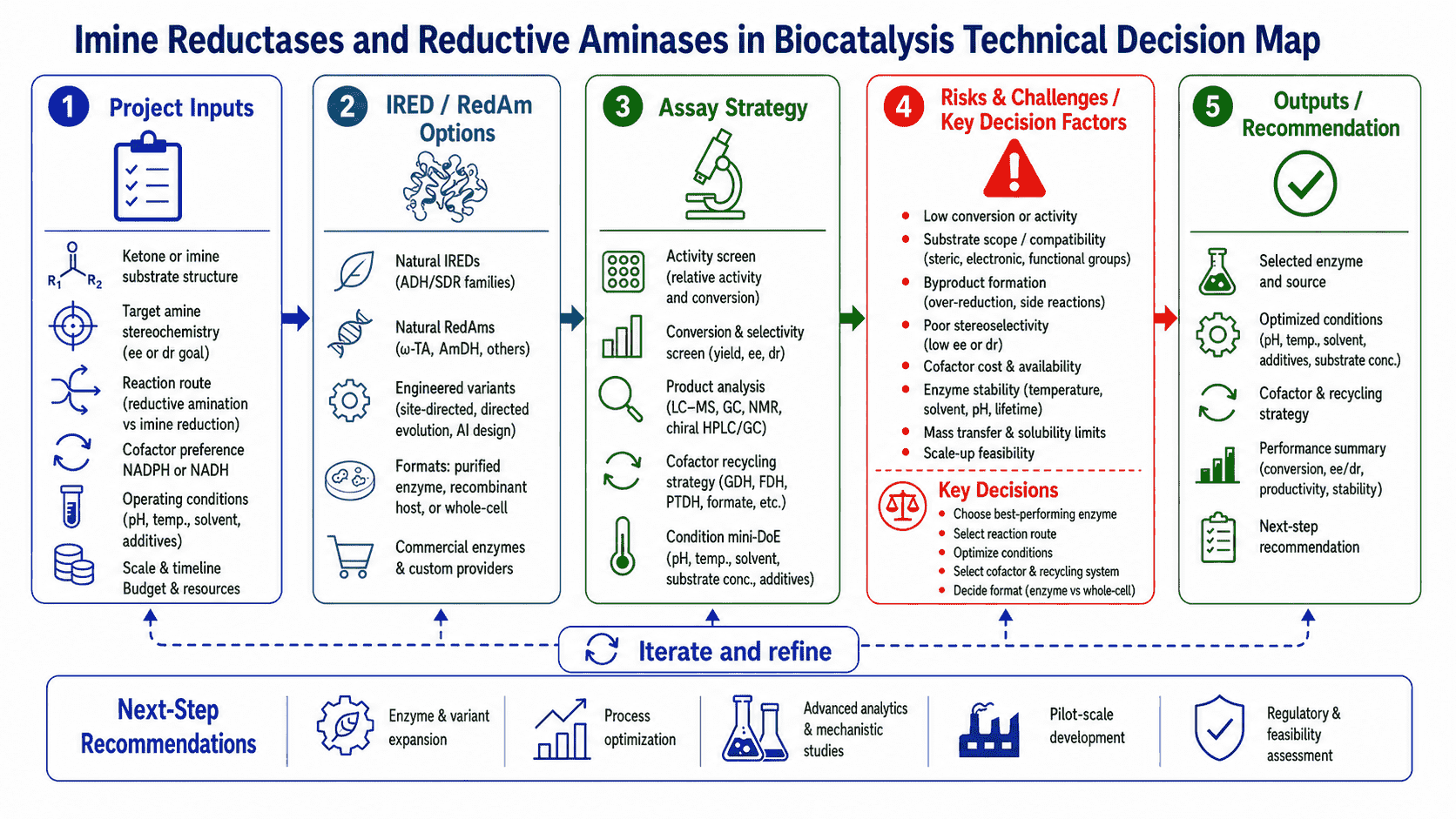

Decision map linking IRED versus RedAm route choice, substrate and amine partner fit, NADPH regeneration, selectivity, analytics, and optimization path.

IRED and RedAm Screening Workflow

A useful screen should match the route type. For imine reduction, the screen should use the target imine or a representative imine precursor and confirm amine product formation. For reductive amination, the screen must include carbonyl substrate, amine partner, PLP-free redox system, NADPH support, and controls that distinguish enzymatic reductive amination from non-enzymatic imine chemistry or carbonyl reduction.

  1. Define the amine target

    Clarify substrate, amine partner, target amine structure, stereochemical requirement, and route preference.

  2. Select enzyme panel

    Use IREDs for preformed imines and RedAms for carbonyl-plus-amine reductive amination, with stereodiverse enzymes when chirality matters.

  3. Control imine chemistry

    Check pH, amine loading, substrate solubility, imine formation, and non-enzymatic background.

  4. Confirm product formation

    Use LC-MS, GC-MS, HPLC, GC, or chiral methods to verify the amine product and reject side-reaction signals.

  5. Optimize top hits

    Refine cofactor regeneration, enzyme loading, substrate loading, amine equivalents, cosolvent, pH, temperature, and reaction time.

Reaction Optimization, Selectivity, and Side-Reaction Control

IRED and RedAm reactions are often optimized by tuning pH, carbonyl concentration, amine equivalents, cosolvent, NADPH regeneration, enzyme loading, temperature, and reaction time. The best condition must support imine formation and enzyme activity at the same time. A pH that favors imine formation may reduce enzyme stability, while a pH that preserves enzyme activity may leave too little imine available for reduction.

Side reactions should be monitored carefully. Carbonyl substrates can be reduced to alcohols by contaminating dehydrogenases or by alternative redox enzymes. Aldehydes can undergo non-enzymatic reactions with amines. Imine intermediates can hydrolyze, polymerize, or form multiple isomers. Products can inhibit the enzyme or react further. Chiral amine products can also require configuration assignment, not only mass confirmation.

Observed Result Likely Cause Practical Response
No amine product detected Imine not forming, wrong enzyme class, missing NADPH support, poor substrate solubility, or unsuitable pH. Check imine formation, add diagnostic cofactor, compare IRED and RedAm panels, and include positive controls.
Cofactor consumed but no target amine Uncoupled turnover, carbonyl reduction to alcohol, side substrate reduction, or regeneration artifact. Use product-specific LC-MS or GC-MS and monitor alcohol side product and no-substrate controls.
Low conversion with confirmed product Equilibrium limitation, amine partner incompatibility, product inhibition, enzyme instability, or low imine concentration. Optimize amine equivalents, pH, cosolvent, enzyme loading, cofactor regeneration, and product inhibition controls.
Wrong enantiomer or low ee The enzyme has unsuitable stereopreference for the target substrate. Screen stereodiverse IRED/RedAm panels or consider enzyme engineering.
Alcohol byproduct dominates Competing carbonyl reductase activity or enzyme class mismatch. Use purified enzyme, adjust enzyme panel, confirm RedAm activity, and monitor carbonyl reduction controls.
Scale-up performance drops Imine formation, substrate feeding, mixing, pH control, or cofactor regeneration changes with volume. Validate staged volumes with pH, time-course, product profile, and residual activity monitoring.

Analytical Validation for IRED and RedAm Reactions

Analytical validation is essential because reductive amination mixtures can contain carbonyl substrate, amine partner, imine or iminium intermediate, amine product, alcohol side product, coproducts from regeneration, salts, buffers, and matrix components. A single cofactor absorbance change or product-like mass is not enough to support a route decision. The method should confirm product identity, amine partner incorporation, conversion, selectivity, and side-product profile.

Chiral analysis is needed when the amine product has a stereocenter. Chiral HPLC, chiral GC, derivatized chiral analysis, or comparison with authentic standards can be used depending on product volatility, polarity, and available references. Derivatization must be validated because amines can react incompletely or differently by enantiomer if conditions are not controlled.

Analytical Need Why It Matters Recommended Approach
Product identity Confirms the desired amine rather than alcohol, imine, donor-derived product, or side product. LC-MS, GC-MS, authentic standard, NMR, or orthogonal analytical confirmation.
Amine partner incorporation Distinguishes intended reductive amination from reduction of a pre-existing imine or background reaction. Use labeled, unique, or structurally diagnostic amine partner where needed and track mass shift.
Carbonyl and imine tracking Shows whether the bottleneck is imine formation or enzymatic reduction. Time-course analysis of carbonyl, imine/intermediate where detectable, and final amine.
Alcohol byproduct detection Reveals competing carbonyl reduction that can consume substrate. Include KRED/ADH-like side-product monitoring by HPLC, GC, LC-MS, or GC-MS.
Enantiomeric excess Determines whether the product meets chiral route requirements. Chiral HPLC, chiral GC, or validated chiral derivatization method.
Mass balance and recovery Prevents overvaluing a reaction when material is lost to side products, adsorption, or extraction failure. Track substrate, amine partner, product, major byproducts, and recovery in confirmatory reactions.

Project Inputs for an IRED or RedAm Inquiry

A useful inquiry should include the carbonyl or imine substrate, amine partner, target amine structure, desired stereochemistry, substrate availability, product standard availability, and route preference. If the project is reductive amination, include amine equivalents, pH constraints, solubility concerns, and whether imine formation has been observed chemically. If the project is imine reduction, include the imine structure, stability, preparation method, and any known E/Z or tautomeric behavior.

Prior data are especially valuable. Send any screening hits, enzyme names, sequences, cofactor conditions, conversion data, LC-MS or GC-MS traces, chiral analysis, alcohol side-product data, and failed conditions. These details help Creative Enzymes determine whether to start with enzyme panel screening, assay development, cofactor regeneration, recombinant production, enzyme engineering, or broader biocatalysis route evaluation.

Request Details for Imine Reductases and Reductive Aminases in Biocatalysis

A clear request helps Creative Enzymes determine the correct scope for IRED/RedAm screening, reaction optimization, cofactor support, analytical method development, or enzyme engineering.

  • Target imine, carbonyl substrate, amine partner, and desired amine product structure.
  • Route type: preformed imine reduction, reductive amination, cyclic amine synthesis, secondary amine formation, tertiary amine formation, or cascade route.
  • Required stereochemistry, ee target, product standard availability, and configuration assignment method if known.
  • Reaction constraints: pH, buffer, cosolvent, amine equivalents, substrate loading, temperature, time, and NADPH regeneration preference.
  • Known solubility, imine stability, aldehyde reactivity, product inhibition, alcohol byproduct, or carbonyl reduction concerns.
  • Available analytical methods for carbonyl, imine, amine product, alcohol side product, and chiral purity.
  • Current enzyme hits, failed screens, sequence information, commercial enzyme data, or literature references.
  • Desired catalyst format, sample amount, scale target, timeline, reporting format, and decision expected from the project.

Imine Reductases and Reductive Aminases FAQs

  • Q: What is the difference between an IRED and a RedAm?

    A: IREDs are commonly used for reduction of preformed imines or cyclic imines, while RedAms are especially useful for reductive amination from a carbonyl compound and amine partner. The distinction matters because imine formation is part of the RedAm route.

  • Q: Do IREDs and RedAms require NADPH?

    A: Most known IREDs and RedAms use NADPH, although enzyme-specific cofactor preference should be confirmed. Preparative reactions usually need a regeneration system rather than stoichiometric NADPH.

  • Q: Why might reductive amination show no product even when the enzyme is active?

    A: The imine may not form sufficiently, the amine partner may be incompatible, the substrate may be insoluble, the pH may be unsuitable, or the analytical method may miss the product. These controls should be checked before rejecting the enzyme.

  • Q: Can IREDs or RedAms make chiral amines?

    A: Yes. Many IREDs and RedAms can produce enantioenriched amines, but stereoselectivity is substrate-dependent and must be confirmed with a validated chiral method.

  • Q: What side reactions should be monitored?

    A: Common concerns include carbonyl reduction to alcohol, non-enzymatic imine chemistry, substrate hydrolysis or oxidation, amine partner interference, product inhibition, and misleading cofactor turnover.
