Multi-Enzyme Cascade Design for Biocatalysis

Creative Enzymes Resource Guide

Multi-Enzyme Cascade Design for Biocatalysis

A practical guide to designing, validating, and optimizing enzyme cascades that convert substrates through multiple catalytic steps with controlled intermediates, cofactors, and reaction compatibility.

Multi-enzyme cascade design is used when a target transformation cannot be handled efficiently by a single enzyme or when coupling multiple enzymatic steps can improve route efficiency. A cascade may avoid isolation of unstable intermediates, shift an unfavorable equilibrium, combine redox and group-transfer chemistry, generate a chiral intermediate in situ, or reduce the number of chemical workup steps in a synthetic route.

A productive cascade is more than a list of enzymes. Each step must operate under compatible pH, temperature, solvent, buffer, cofactor, oxygen, substrate, and product conditions. The intermediate from one enzyme must be available to the next enzyme without being degraded, inhibited, over-converted, or lost to a side pathway. The design therefore needs reaction logic, enzyme selection, analytical visibility, and staged validation.

Request Project Support Explore Biocatalysis Services

A well-designed cascade makes each enzymatic step support the next one. The design should explain why the enzymes are combined, which intermediate is being controlled, how cofactors are supplied or regenerated, and how the full route will be confirmed analytically.

Why Use a Multi-Enzyme Cascade?

Enzyme cascades can create route advantages that are difficult to obtain by isolated single-step reactions. They can generate unstable intermediates in situ, consume an intermediate as soon as it forms, pull an equilibrium-limited step forward, combine redox chemistry with amination or hydrolysis, and reduce the need for intermediate purification. In pharmaceutical intermediate synthesis, fine chemical production, carbohydrate modification, lipid transformation, biomass conversion, and specialty enzyme applications, these advantages can simplify workflows and improve selectivity.

The most common mistake is to assume that individually active enzymes will automatically function together. In practice, the first enzyme may require a pH that inactivates the second, a cosolvent that improves substrate solubility may suppress an auxiliary enzyme, an intermediate may inhibit the upstream enzyme, or a cofactor regeneration system may create side products that interfere with downstream analytics. A cascade should be designed as an integrated reaction network.

Successful cascade work usually starts with a route hypothesis: which step is difficult, which intermediate should be avoided or consumed, which equilibrium should be shifted, and what final product profile is required. That hypothesis determines whether the project should focus on enzyme discovery, cofactor engineering, reaction condition compatibility, product analytics, enzyme ratio optimization, or process format.

Choosing the Cascade Architecture

Cascade architecture defines how the enzymatic steps are connected in time and space. A one-pot simultaneous cascade can be efficient when all enzymes share compatible conditions. A sequential one-pot cascade may be better when the second enzyme must be added after an intermediate forms or after a condition change. A telescoped process can keep enzymatic steps connected while allowing buffer exchange, pH adjustment, extraction, or intermediate enrichment between steps. Compartmentalized systems can help when enzymes require incompatible environments.

The architecture should be selected according to the chemical problem rather than convenience alone. If an intermediate is unstable, concurrent conversion may be required. If the first enzyme is inhibited by the product of the second, a sequential format may help. If a redox step and a hydrolytic step require very different pH or solvent levels, a telescoped format may be more realistic than forcing all enzymes into a single condition.

Cascade Format Best Used When Main Design Risk
Linear one-pot cascade All enzymes can operate together under one pH, temperature, solvent, and buffer condition. Rate mismatch may cause intermediate buildup, side reactions, or product inhibition.
Sequential one-pot cascade Enzyme addition order, time delay, pH adjustment, or cofactor addition improves performance. Intermediate may degrade or inhibit the first step before the next enzyme is added.
Telescoped cascade Steps are linked but require buffer exchange, extraction, pH shift, or partial cleanup between stages. Additional handling can reduce yield if the intermediate is unstable or poorly recovered.
Concurrent cofactor-coupled cascade One enzyme consumes a cofactor form while another regenerates it or balances redox equivalents. Uncoupled cofactor turnover can occur without productive formation of the desired product.
Compartmentalized or immobilized cascade Enzymes need different local environments, reuse, improved stability, or reduced cross-inhibition. Diffusion limitations and uneven enzyme loading can reduce apparent productivity.
Chemoenzymatic cascade An enzymatic step is combined with a chemical step to improve selectivity, activation, or route length. Chemical reagents, metals, pH, or solvent may deactivate the enzyme if compatibility is not tested.

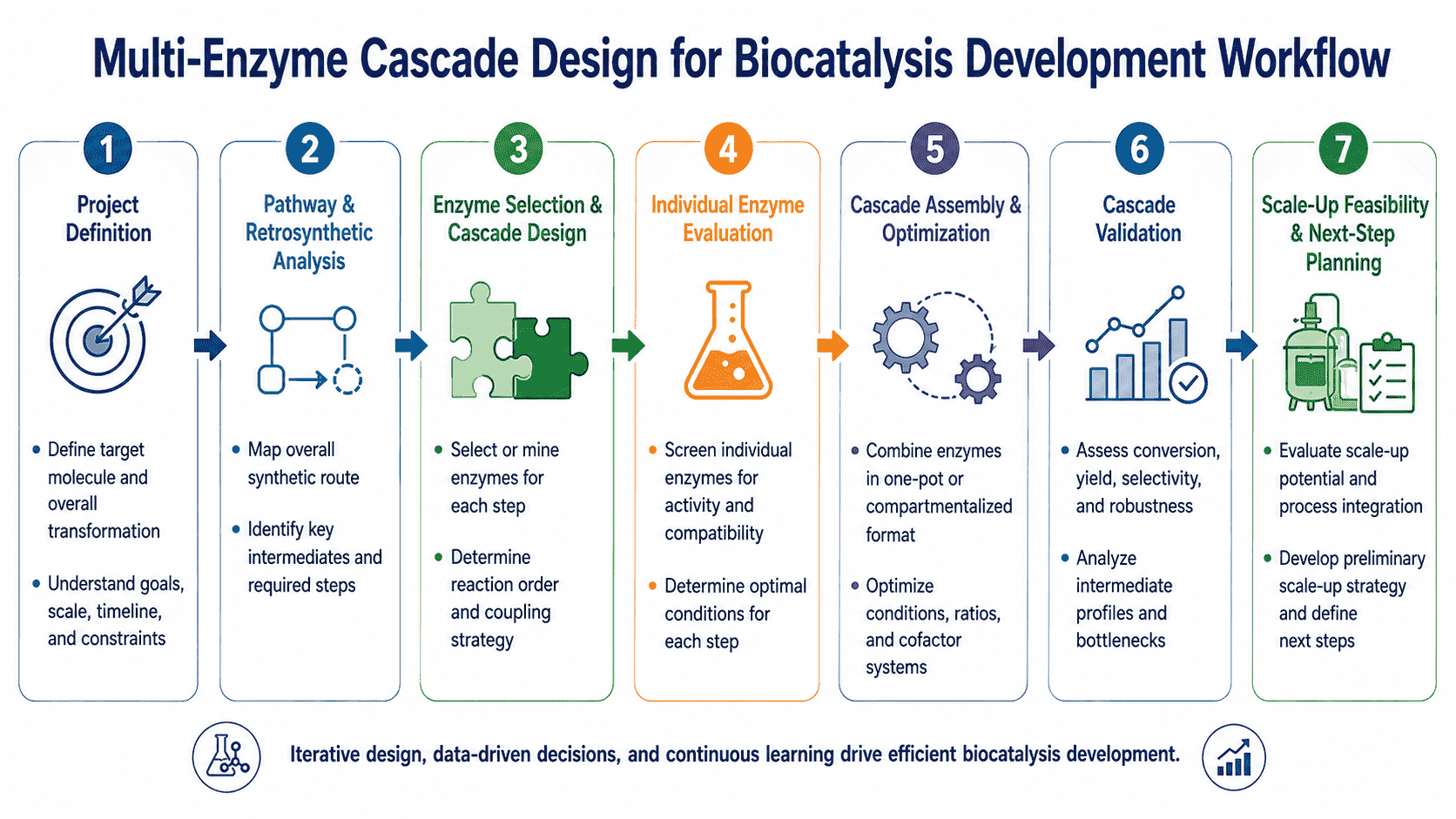

Workflow from route mapping and enzyme selection through compatibility testing, cofactor balancing, analytical validation, and optimization.

Step Compatibility and Intermediate Control

Step compatibility is the central technical challenge in a cascade. Each enzyme has an operating window, but the cascade has only one shared environment unless the process is separated into stages. The design must evaluate pH, temperature, buffer, salt, cosolvent, substrate loading, oxygen level, cofactors, additives, and enzyme stability across all participating enzymes. A condition that is optimal for one step may be unacceptable for another.

Intermediate control is equally important. An intermediate can be unstable, volatile, poorly soluble, reactive, inhibitory, or difficult to detect. It may also partition into an organic phase, bind to enzyme or cells, undergo non-enzymatic hydrolysis, or enter a competing enzymatic pathway. A cascade that looks efficient by final product signal may still have poor mass balance if intermediates or side products are not tracked.

Compatibility Factor Why It Matters Recommended Check
pH and buffer Each enzyme may have a different activity and stability profile, and buffers can affect cofactors, metals, or substrates. Identify an overlap window and measure final pH after the cascade, especially for amination, hydrolysis, and oxidation routes.
Temperature and time Higher temperature may improve one step but deactivate a partner enzyme or reduce stereoselectivity. Compare initial rate, residual activity, intermediate buildup, and final product profile at practical timepoints.
Cosolvent and substrate loading Cosolvent may improve substrate availability while reducing enzyme lifetime or auxiliary enzyme performance. Test solubility and enzyme stability together, not as separate assumptions.
Intermediate stability Unstable intermediates can decompose, react with buffer, inhibit enzymes, or form side products. Run intermediate-spiking, no-enzyme, and single-enzyme controls where standards or authentic materials are available.
Product and byproduct inhibition Final product or coproducts may inhibit upstream or downstream enzymes. Spike expected products and coproducts into individual steps to identify inhibition before full cascade optimization.
Enzyme cross-effects Proteases, oxidants, peroxide, metal ions, or reactive intermediates may damage partner enzymes. Test enzymes alone and in pairwise combinations before moving to the complete cascade.

Cofactor Balance, Equilibrium, and Driving Forces

Many multi-enzyme cascades depend on cofactor balance. Redox cascades may require NADH, NADPH, FAD, FMN, heme, PLP, ATP, SAM, CoA, metal ions, or auxiliary regeneration enzymes. A regeneration system can make a reaction economically practical, but it can also introduce pH drift, coproduct accumulation, oxygen demand, peroxide formation, or competing reactions. Cofactor turnover should be connected to final product formation, not treated as proof of cascade success by itself.

Equilibrium management is another design function. Some enzymes can pull a previous step forward by consuming the product. Transaminase cascades may use product removal or donor selection to shift equilibrium. Ketoreductase cascades may use alcohol dehydrogenase or glucose dehydrogenase systems to regenerate cofactors. Decarboxylation, hydrolysis, oxidation, or irreversible auxiliary reactions can also help drive a sequence forward. The design should state what thermodynamic or kinetic barrier the cascade is solving.

Cascade Challenge Possible Design Lever Evidence Needed
NADH or NADPH depletion Add a regeneration enzyme, sacrificial substrate, whole-cell format, or balanced redox partner. Measure both cofactor state and desired product formation to rule out uncoupled turnover.
Equilibrium-limited conversion Consume the intermediate or coproduct, use substrate excess, remove product, or add an irreversible step. Compare single-step equilibrium with coupled cascade conversion and mass balance.
Intermediate accumulation Increase downstream enzyme loading, change addition timing, adjust pH, or reduce upstream rate. Track intermediate concentration over time rather than only final endpoint conversion.
Side product formation Change enzyme order, reduce reactive intermediate residence time, alter solvent, or select a more specific enzyme. Identify side products by LC-MS, GC-MS, standards, or product-specific analytics.
Oxygen or peroxide stress Control oxygen transfer, add catalase or peroxide management, or redesign oxidase coupling. Monitor enzyme residual activity, over-oxidation, peroxide level, and final product profile.
Cofactor cost or stoichiometry issue Optimize cofactor loading, regeneration rate, enzyme ratio, and donor concentration. Report product formed per cofactor input and productivity per enzyme loading.

Enzyme Format, Ratio, and Spatial Organization

Enzyme format changes cascade behavior. Purified enzymes provide clearer interpretation and easier ratio control. Crude lysates can accelerate early feasibility testing but require matrix controls. Whole-cell catalysts can support cofactor regeneration and enzyme protection, but they introduce transport limits, endogenous metabolism, and cell compatibility issues. Immobilized enzymes can improve stability and reuse, but immobilization may slow diffusion or change local enzyme ratios.

Enzyme ratio is one of the most useful tuning variables. If the first step is too fast, an intermediate may accumulate and degrade. If the downstream step is too fast but substrate supply is slow, enzyme is wasted. If a regeneration enzyme is limiting, the main catalytic enzyme may appear weak even though the real bottleneck is cofactor supply. Ratio optimization should use time-course data and intermediate profiling, not only endpoint conversion.

Spatial organization may matter when intermediates are unstable or inhibitory. Co-immobilization, sequential packed beds, membrane separation, phase partitioning, or staged enzyme addition can sometimes improve productivity. These approaches should be considered after the basic chemical compatibility and analytical evidence are established.

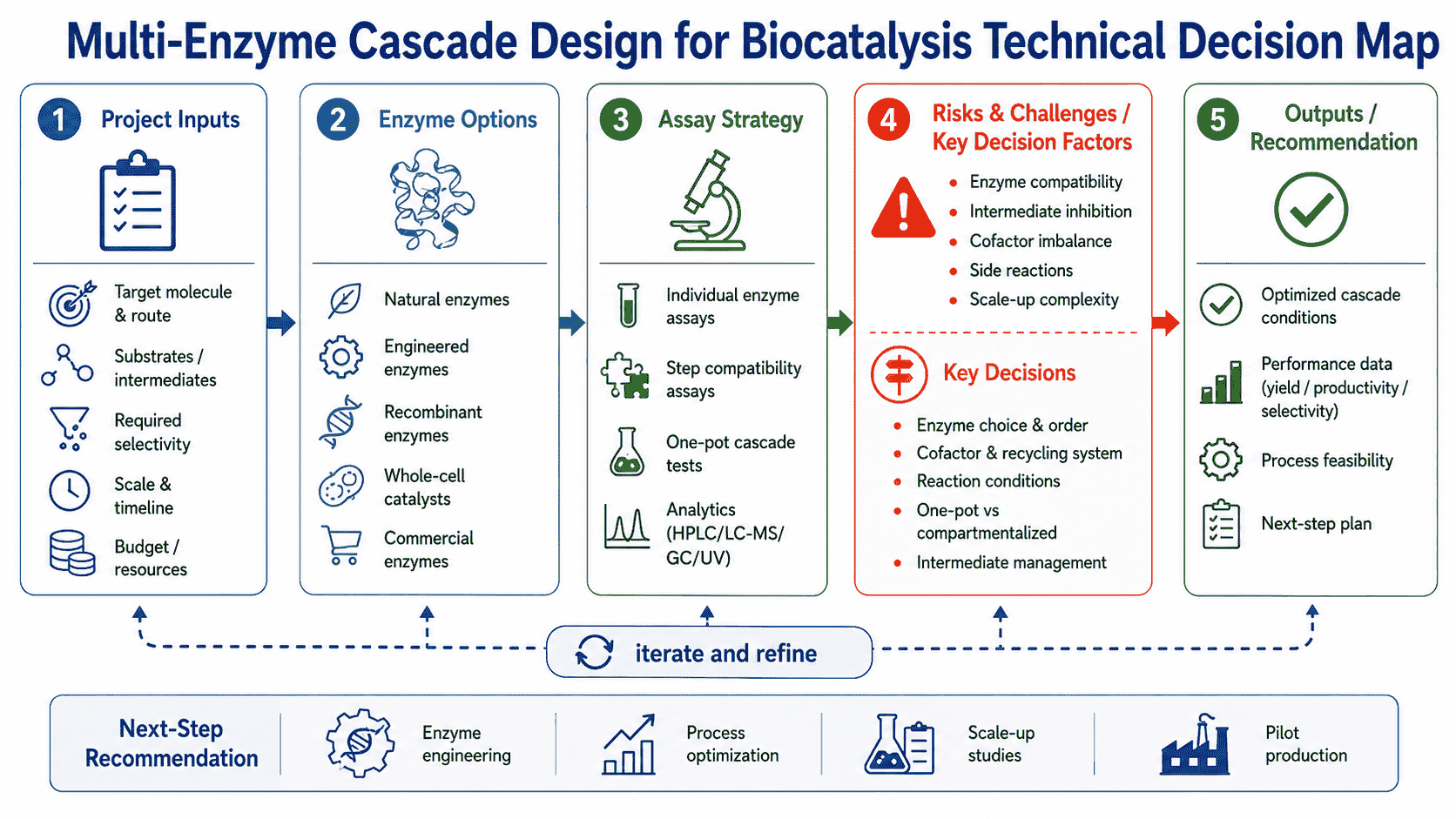

Decision map linking enzyme compatibility, intermediate control, cofactor balance, assay strategy, enzyme ratio, and scale-up planning.

Analytical Validation for Cascade Reactions

Analytical design is more demanding for cascades than for single-step reactions. The method should track the starting substrate, intermediates, final product, major side products, cofactors or coproducts when relevant, and selectivity. A single final product peak may not reveal whether the route is efficient, whether one step is limiting, or whether material is disappearing into side reactions.

For small-molecule cascades, HPLC, GC, LC-MS, GC-MS, chiral chromatography, and authentic standards are often used in combination. For carbohydrate, peptide, lipid, biomass, or polymer-related cascades, product distribution, degree of hydrolysis, oligomer profile, viscosity, reducing sugar release, or application-specific performance may be more informative. The method should be matched to the cascade chemistry rather than chosen only for convenience.

Analytical Question Why It Matters Useful Readout
Is each step active alone? A full cascade failure cannot be interpreted unless individual steps are validated. Single-enzyme reactions with substrate, intermediate, or surrogate substrate as appropriate.
Is the intermediate formed and consumed? Intermediate buildup reveals rate mismatch, inhibition, or downstream incompatibility. Time-course HPLC, GC, LC-MS, or product-specific assays for intermediate concentration.
Is the final product correctly assigned? Endpoint signal may represent an isomer, side product, or degradation product. Authentic standard, MS confirmation, chiral method, NMR, or orthogonal analytical method.
Is selectivity preserved across the cascade? A downstream enzyme or condition may erode stereochemical or regioselective advantage. Chiral HPLC or GC, regioisomer analysis, product distribution profile, or peptide/sugar mapping.
Is mass balance acceptable? Material loss can hide side reactions, adsorption, extraction loss, volatilization, or matrix interference. Quantitative tracking of substrate, intermediates, product, and major byproducts with recovery controls.
Which step limits productivity? The best optimization target depends on the slowest or least stable step. Stepwise time course, enzyme ratio study, intermediate spiking, and residual activity testing.

Optimization and Scale-Up Strategy

Cascade optimization should proceed in stages. First, validate each enzymatic step individually. Second, test enzyme pairs or modules to identify incompatibilities. Third, run the complete cascade at analytical scale with time-course sampling. Fourth, optimize enzyme ratios, substrate feeding, cofactor regeneration, pH, temperature, solvent, and addition sequence. Finally, confirm the best condition in a larger or more representative format.

Scale-up adds risks that may not appear in a small screening plate. Oxygen transfer may limit oxidase and oxygenase systems. Mixing may affect insoluble substrates, two-phase systems, immobilized enzymes, or high-viscosity biomass reactions. Heat transfer and pH drift may alter enzyme stability. Sampling may perturb the reaction if intermediates are unstable. The cascade should therefore be tested in a format that reflects the intended development stage before being presented as scale-ready.

Observed Problem Likely Cause Practical Response
First intermediate accumulates Downstream enzyme is slow, inhibited, unstable, or missing a required cofactor. Increase downstream enzyme loading, improve cofactor support, adjust timing, or optimize the downstream step separately.
Final product forms but selectivity is poor One step creates an undesired isomer or a later condition allows racemization or side conversion. Analyze each step for selectivity, reduce residence time of sensitive intermediates, or replace the less selective enzyme.
Conversion stops before completion Cofactor limitation, product inhibition, enzyme deactivation, equilibrium limit, or pH drift. Run cofactor, product-spiking, fresh-enzyme, final-pH, and residual-activity checks.
Good microscale result fails at larger volume Mixing, oxygen transfer, substrate feeding, heat transfer, or sampling changes with scale. Validate in staged volumes and control gas transfer, addition profile, pH, and agitation.
Mass balance is low Untracked byproducts, adsorption, volatility, extraction loss, intermediate degradation, or analytical response differences. Use recovery controls, orthogonal analytics, standards where possible, and byproduct identification.
One enzyme deactivates another Proteolysis, peroxide, metal ions, reactive substrate, incompatible additive, or harsh cosolvent. Use pairwise compatibility tests, staged addition, protective additives, catalase, immobilization, or separate reaction modules.

  1. Map the route

    Define each enzymatic step, intermediate, cofactor, equilibrium issue, and desired final product profile.

  2. Validate individual steps

    Confirm each enzyme under relevant conditions before combining them.

  3. Test compatibility modules

    Combine enzymes pairwise or by module to identify pH, solvent, cofactor, and inhibition conflicts.

  4. Optimize the full cascade

    Adjust enzyme ratio, addition order, loading, feeding, cofactors, pH, temperature, and reaction time using analytical evidence.

  5. Confirm scale relevance

    Retest the best condition in a format that reflects the intended application or development stage.

Project Inputs for Cascade Design

A useful cascade inquiry should include the target substrate, desired final product, proposed or known intermediates, target reaction sequence, enzyme candidates if available, and the reason a cascade is being considered. If individual steps have already been tested, provide conversion, selectivity, conditions, enzyme format, cofactor system, and analytical methods for each step.

It is especially helpful to identify known constraints: unstable intermediates, equilibrium-limited steps, cofactor cost, product inhibition, solvent requirement, pH incompatibility, oxygen or peroxide sensitivity, substrate solubility, or scale target. This information helps determine whether the best next step is route mapping, enzyme screening, recombinant production, compatibility testing, analytical method development, or cascade optimization.

Request Details for Multi-Enzyme Cascade Design for Biocatalysis

A clear project request helps Creative Enzymes design a cascade workflow that produces interpretable and development-relevant data.

  • Target substrate, final product, proposed intermediate structures, and desired reaction sequence.
  • Known or preferred enzyme classes, enzyme candidates, cofactors, regeneration systems, and catalyst format.
  • Current single-step data, including conversion, selectivity, pH, temperature, solvent, loading, and reaction time.
  • Analytical methods available for substrate, intermediates, final product, side products, cofactors, and selectivity.
  • Known bottlenecks such as intermediate instability, cofactor limitation, pH incompatibility, inhibition, or low mass balance.
  • Desired cascade format: simultaneous one-pot, sequential addition, telescoped, immobilized, whole-cell, or chemoenzymatic.
  • Target scale, substrate loading, enzyme loading expectation, solvent limits, process constraints, and timeline.
  • Decision expected from the work: feasibility, lead enzyme selection, optimization plan, preparative demonstration, or scale-up support.

Multi-Enzyme Cascade Design FAQs

  • Q: Should all enzymes in a cascade be added at the same time?

    A: Not always. Simultaneous addition is useful when conditions are compatible, but sequential addition or telescoping may be better when intermediates, cofactors, pH, or enzyme stability require staged control.

  • Q: How do you know which step limits a cascade?

    A: Individual step testing, intermediate time-course data, enzyme ratio studies, cofactor checks, and intermediate-spiking experiments can reveal whether the bottleneck is upstream formation, downstream consumption, cofactor supply, inhibition, or enzyme instability.

  • Q: Can cofactor regeneration be built into a cascade?

    A: Yes. Redox and group-transfer cascades often use auxiliary enzymes or whole-cell systems for cofactor regeneration, but product formation must be confirmed because cofactor turnover can be uncoupled from the desired reaction.

  • Q: Why is mass balance important in cascade design?

    A: A cascade may show final product formation while losing material to side products, degradation, adsorption, extraction loss, or untracked intermediates. Mass balance helps determine whether the route is genuinely efficient.

  • Q: What happens if the enzymes require incompatible conditions?

    A: Options include sequential addition, pH adjustment, telescoping, buffer exchange, immobilization, enzyme engineering, alternative enzyme selection, or separating the cascade into modules.
