Expression and Purification of Site-Directed Mutagenesis Variants

inquiry

Creative Enzymes provides Expression and Purification of Site-Directed Mutagenesis Variants as a core component of our Downstream Services for Site-Directed Mutagenesis (SDM). This service bridges the gap between genetic modification and functional characterization, ensuring that each engineered enzyme variant is correctly expressed and purified to homogeneity for subsequent biochemical and structural analysis. Leveraging an extensive range of heterologous expression systems and purification technologies, we deliver reproducible, scalable, and high-quality protein preparations. Whether your focus is activity assessment, mechanistic elucidation, or industrial-scale testing, Creative Enzymes ensures precise execution, optimal yield, and structural integrity for every mutant enzyme.

Introduction to Expression and Purification of Engineered Enzymes by SDM

The successful engineering of enzymes through site-directed mutagenesis depends not only on introducing accurate genetic changes but also on obtaining correctly folded, functional proteins for downstream characterization. However, expressing mutant enzymes can be challenging due to alterations in solubility, folding kinetics, or stability. Even subtle amino acid substitutions may disrupt expression levels or purification profiles, leading to misfolded or inactive products.

Creative Enzymes addresses these challenges through tailored expression optimization and multi-step purification workflows designed to maintain the structural and functional integrity of mutant enzymes. Our scientists combine deep expertise in protein expression biology with advanced purification platforms to accommodate a wide range of expression hosts—including bacterial, yeast, insect, and mammalian systems.

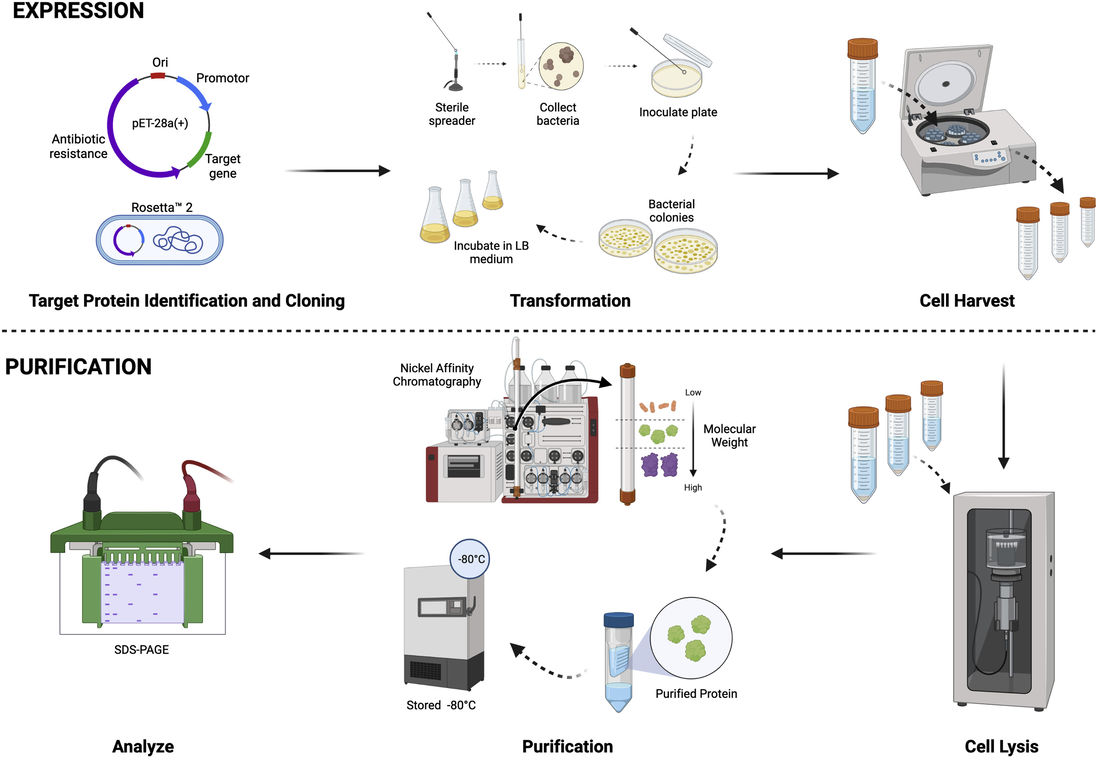

Figure 1. Workflow of protein expression and purification. (Ertem et al., 2022)

Expression and Purification of SDM Variants: Services & Capacities

By providing an integrated, high-quality workflow from expression to purified protein, Creative Enzymes enable researchers to move seamlessly from mutation design to functional discovery, ensuring every variant is accurately represented in downstream assays. Our capacities include:

Customized Expression System Selection

Selection of the optimal host (e.g., E. coli, Bacillus, Pichia pastoris, insect, or mammalian cells) based on protein properties and project goals.

Codon Optimization and Expression Vector Preparation

Optimization of gene sequences for host-specific codon usage and subcloning into suitable expression vectors.

Expression Screening and Optimization

Evaluation of induction conditions, temperature, and expression levels to maximize soluble yield and minimize inclusion bodies.

Inclusion Body Solubilization and Refolding

Specialized protocols for recovering active proteins from insoluble fractions using gradient refolding or chaperone-assisted methods.

Affinity and Tag-Based Purification

Use of Ni-NTA, GST, His, FLAG, or Strep-tag purification, coupled with ion exchange and size-exclusion chromatography as required.

Endotoxin Removal and Buffer Exchange

High-purity protein preparation for biochemical assays, biophysical characterization, or cell-based studies.

Purity and Integrity Validation

SDS-PAGE, Western blot, and LC-MS analyses to confirm protein size, purity, and identity.

Flexible Delivery Formats

Proteins delivered lyophilized or in solution, in user-specified buffers and concentrations.

Service Workflow

Step	Details
Project Consultation and Design	Our scientific team reviews your construct, expression goals, and desired output (e.g., soluble enzyme, membrane protein, tagged variant).
Host and Vector Selection	Based on enzyme class, size, and post-translational needs, we select or recommend the most appropriate expression system and vector configuration.
Expression Testing and Optimization	Small-scale pilot expressions are performed to determine the best induction conditions, host strain, and temperature to maximize soluble expression.
Protein Production and Harvesting	Scaled-up expression is conducted under optimized conditions, followed by cell lysis using mechanical or enzymatic disruption methods.
Purification	Target proteins are purified using multi-step chromatography (affinity, ion exchange, and size exclusion) to achieve the desired purity and yield.
Quality Verification	Each batch undergoes thorough analytical validation, including SDS-PAGE, purity quantification, and functional assessment where applicable.
Delivery and Documentation	Final protein products are shipped with detailed QC data, purification profiles, and optional storage recommendations.

Connecting Services

This service forms part of Creative Enzymes' integrated Downstream Services for Site-Directed Mutagenesis, designed to convert genetic modifications into functional insight. To extend your project, consider:

Activity Assays for Site-Directed Mutagenesis Variants: Comprehensive kinetic and functional characterization of purified enzyme variants to quantify catalytic performance.
Structural and Mechanistic Analysis of Site-Directed Mutagenesis Variants: Advanced structural biology services (X-ray crystallography, cryo-EM, and molecular modeling) for elucidating mutation-induced conformational changes.

Together, these three services provide a complete downstream workflow, from expression and purification through activity validation and mechanistic understanding—empowering a full cycle of enzyme engineering discovery.

Get a quote

Why Choose Us

Comprehensive System Portfolio

Broad experience across bacterial, yeast, insect, and mammalian systems ensures successful expression of diverse enzyme mutants.

Optimized Workflow Efficiency

Integrated expression and purification platforms reduce transition time between steps, accelerating project completion.

Expert Handling of Difficult Proteins

Proven expertise in refolding insoluble mutants and stabilizing aggregation-prone variants.

Rigorous Quality Control

Each construct undergoes multilayer validation to ensure purity, identity, and activity.

Scalability and Flexibility

Capabilities range from small analytical batches for screening to large-scale production for industrial applications.

Seamless Integration with Downstream Analysis

Purified proteins are delivered in assay-ready form for immediate use in activity assays or structural studies.

Representative Case Studies

Case 1: Optimized Expression of a Low-Solubility Mutant Enzyme

Client Need:

A research institute working on thermostable xylanases required soluble expression of a site-directed mutant designed to improve substrate specificity. However, the recombinant protein consistently formed insoluble inclusion bodies when expressed in E. coli, preventing functional assays and crystallization attempts.

Our Approach:

We conducted a systematic evaluation of multiple E. coli expression strains (BL21(DE3), Rosetta, and ArcticExpress) and optimized induction conditions by adjusting IPTG concentration, temperature, and post-induction duration. When solubility remained suboptimal, we implemented a stepwise refolding protocol using urea gradient removal under redox-controlled buffers to promote correct disulfide formation. Analytical SEC and SDS-PAGE confirmed proper refolding and monodispersity.

Outcome:

Soluble yield increased eightfold, and the refolded xylanase retained 95% of wild-type catalytic activity. The purified mutant protein was successfully used for X-ray crystallography and kinetic profiling, providing structural insights into substrate binding and thermal adaptation mechanisms.

Case 2: Scalable Purification of a Mutant Oxidoreductase for Mechanistic Studies

Client Need:

An industrial biotechnology company aimed to produce 50 mg of a triple-mutant oxidoreductase for kinetic assays and crystallography. Previous E. coli expression yielded low titers and heterogeneous glycosylation, compromising protein quality and reproducibility across batches.

Our Approach:

We transitioned the project to a Pichia pastoris expression system optimized for secretory protein production. Expression parameters—including methanol induction rate, culture density, and pH—were fine-tuned to maximize yield. Downstream purification employed a two-step process combining Ni-NTA affinity and size-exclusion chromatography, ensuring both purity and structural homogeneity. Each purification batch was validated by SDS-PAGE and LC-MS to confirm sequence integrity.

Outcome:

The process consistently produced over 50 mg of enzyme per batch with >97% purity and excellent batch-to-batch reproducibility. The triple-mutant exhibited a 7°C higher melting temperature than the wild-type, confirming enhanced structural stability and enabling precise kinetic and crystallographic analysis.

Frequently Asked Questions

Q: What information should I provide to initiate an expression and purification project?

A: Please supply your target gene or plasmid sequence, desired expression host, tag preferences, and any known solubility or stability issues.
Q: Can you work with membrane-bound or insoluble enzymes?

A: Yes. We routinely express and purify membrane proteins and insoluble enzymes using detergent solubilization, refolding strategies, and proprietary buffer systems.
Q: What purification tags can you accommodate?

A: We support His, GST, MBP, FLAG, Strep, and custom fusion tags, with optional tag removal via protease cleavage.
Q: How do you ensure the activity of purified mutants?

A: We minimize denaturation through low-temperature purification and verify protein folding using SDS-PAGE, circular dichroism, or optional enzymatic assays.
Q: Can the purified protein be directly used for structural analysis or kinetics?

A: Yes. Our proteins are delivered in assay-compatible buffers and concentrations suitable for crystallization, cryo-EM, or kinetic studies.
Q: What if the mutant protein expresses poorly?

A: We offer multiple optimization options—including alternate hosts, chaperone co-expression, and codon optimization—to rescue low-expression constructs.

References:

Ertem FB, Guven O, Buyukdag C, et al. Protocol for structure determination of SARS-CoV-2 main protease at near-physiological-temperature by serial femtosecond crystallography. STAR Protocols. 2022;3(1):101158. doi:10.1016/j.xpro.2022.101158
