High-Throughput Enzyme Substrate Screening

Efficient and rapid evaluation of substrate candidates is critical to identifying the optimal substrate. Creative Enzymes offers high-throughput screening (HTS) services to test large numbers of substrates with high sensitivity, precision, and reproducibility.

Background on High-Throughput Screening of Substrate

High-Throughput Screening (HTS) for substrate identification is a powerful methodology designed to rapidly test thousands to hundreds of thousands of compounds to find the optimal ("best") substrate for an enzymatic reaction. It represents the experimental engine that makes the systematic exploration of large substrate libraries feasible.

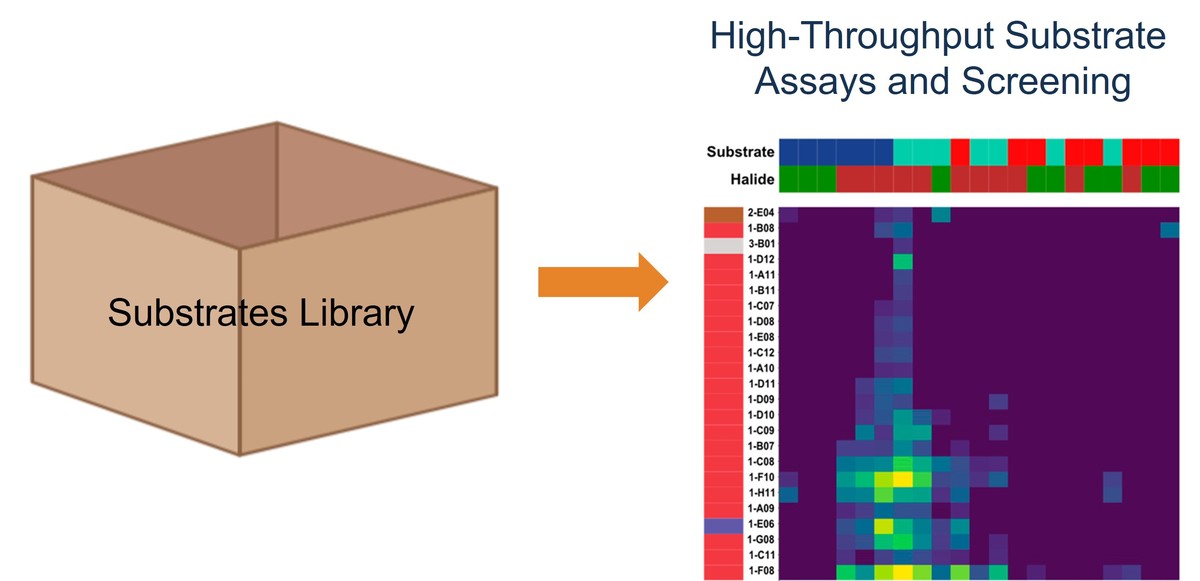

High-throughput enzyme substrate screening for identifying the best enzymatic substrate

The principle of HTS is to miniaturize, automate, and parallelize enzymatic assays. This allows for the simultaneous testing of a vast number of potential substrates against a target enzyme, generating massive datasets in a short time. To efficiently sift through chemical space and identify "hits"—substrates that the enzyme recognizes and turns over—and ultimately rank them to find the one with the highest catalytic efficiency (kcat/KM).

Why HTS Is Indispensable

  • Efficiency: Drastically reduces the time and resource investment required compared to manual, one-substrate-at-a-time testing.
  • Objectivity: Provides a quantitative and unbiased comparison of all substrates in the library under identical conditions.
  • Reveals Specificity: Uncover unexpected substrate preferences or enzyme promiscuity that might be missed with targeted approaches.
  • Data-Rich: Generates robust kinetic data (e.g., initial velocities) for hundreds of substrates, enabling sophisticated analysis of structure-activity relationships (SAR).

Key Assay Technologies for HTS

The choice of assay is critical and depends on the enzyme's reaction type.

  • Absorbance (UV/Vis): Measures color change. Common for oxidoreductases (e.g., NADH depletion at 340 nm) and hydrolases using chromogenic probes (e.g., p-nitrophenol release).
  • Fluorescence: Extremely sensitive. Uses fluorogenic substrates (e.g., coumarin, fluorescein derivatives) that release a fluorescent group upon reaction.
  • Luminescence: Ultra-sensitive, low background. Detects light emission, often from coupled reactions (e.g., ATP consumption/production luciferase assays).
  • Coupling Assays: A second enzyme is used to convert the product of the first reaction into a detectable signal, greatly expanding the range of reactions that can be monitored.

High-throughput substrate screening is the indispensable technological platform that enables the practical execution of substrate library-based discovery. By combining automation, miniaturization, and sensitive detection, HTS transforms the search for the best enzyme substrate from a slow, bespoke process into a rapid, data-driven endeavor. It is the key to unlocking a deeper understanding of enzyme function and identifying optimal substrates for industrial biocatalysis, diagnostic assay development, and therapeutic discovery.

Our Comprehensive Service Offerings

Our High-Throughput Screening (HTS) services provide a robust, scalable solution for evaluating enzyme activity, substrate specificity, and ligand interactions across large compound libraries. By combining automated platforms with flexible assay formats, we enable rapid, reproducible, and data-rich assessments to accelerate enzyme characterization and discovery.

Key Capabilities

Automated Assay Platforms

Our state-of-the-art instrumentation supports fully automated screening for activity, binding, and specificity. Automated liquid handling and parallel processing ensure consistent assay conditions and high reproducibility.

Parallel Testing of Large Libraries

We can screen substrate libraries exceeding 5,000 candidates simultaneously, enabling comprehensive mapping of enzyme specificity landscapes and rapid identification of optimal substrates.

Flexible Detection Methods

Assays can be configured for colorimetric, fluorometric, or LC-MS-based readouts, providing sensitivity and versatility for a wide range of enzyme classes and experimental goals.

Real-Time Data Collection and Analysis

Screening data are collected and processed in real time. Statistical validation, hit ranking, and kinetic profiling are integrated into the workflow, allowing informed decision-making and streamlined follow-up studies.

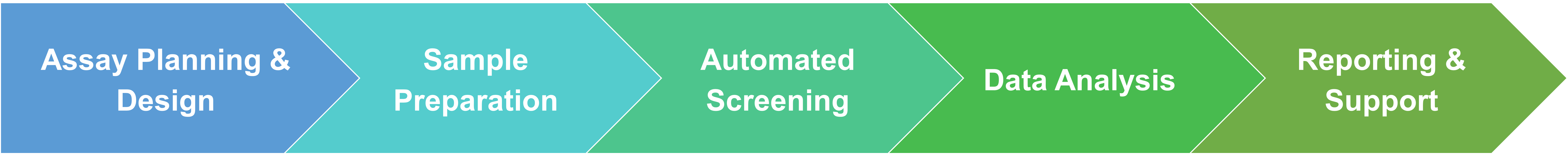

Service Workflow

Workflow of high-throughput substrate assays and screening services

Contact Our Team

Full-Service Substrate Discovery

Our end-to-end service is designed to identify and validate the optimal substrate for your enzyme. Explore our specialized modules:

Inquiry

Why Choose Creative Enzymes

High Capacity

Simultaneous evaluation of hundreds to thousands of substrates.

Automation-Driven Accuracy

Minimizes human error for reproducible results.

Versatile Assays

Compatible with multiple detection methods.

Rapid Turnaround

Shortens project timelines compared to traditional methods.

Data-Rich Output

Comprehensive activity and binding profiles for decision-making.

Integration with Library Design

Seamless transition from substrate selection to screening.

Case Studies and Success Stories

Case 1: Screening a Kinase Library for Targeted Inhibitor Discovery

Client Need:

A pharmaceutical company developing kinase inhibitors needed to rapidly identify substrates that would allow robust, reproducible screening of a novel serine/threonine kinase. The goal was to pinpoint peptide motifs suitable for high-throughput inhibitor screening.

Our Approach:

Using an automated fluorescence-based HTS platform, we tested a library of over 3,500 synthetic peptides representing diverse motifs around serine and threonine residues. Assay conditions were optimized for reproducibility, and real-time data acquisition enabled immediate statistical validation. Active substrates were ranked by kinetic performance, signal-to-noise ratio, and selectivity.

Outcome:

Three high-performance peptides were identified, each providing robust and reproducible signals suitable for downstream inhibitor screening. This allowed the client to launch a focused HTS campaign with high confidence, significantly shortening the lead discovery timeline and reducing experimental costs.

Case 2: Profiling Protease Substrate Specificity for Industrial Enzyme Optimization

Client Need:

An industrial biotech company developing a protease for detergent formulations required a detailed understanding of substrate preferences to improve activity under alkaline conditions. They needed a scalable, high-throughput approach to test hundreds of peptide substrates simultaneously.

Our Approach:

We constructed a fluorogenic peptide library of over 1,500 candidate substrates covering diverse amino acid motifs at the P1 and P1' positions. Screening was performed on an automated platform with real-time fluorescence detection. Hits were analyzed for cleavage efficiency, substrate specificity, and kinetic parameters (KM, kcat).

Outcome:

The screening revealed unexpected substrate tolerance at hydrophobic P1 sites, informing targeted mutagenesis to enhance activity in alkaline conditions. The optimized protease variant demonstrated improved stability and performance in detergent formulations, accelerating the client's product development cycle.

FAQs About Our Substrate HTS Services

  • Q: Why should I use high-throughput screening instead of testing substrates individually?

    A: Screening substrates individually is time-consuming and limits the scope of discovery. Our HTS platforms allow thousands of substrates or ligands to be tested in parallel under standardized conditions, saving time while providing comprehensive activity and specificity profiles.
  • Q: What types of assays are available for screening my enzyme?

    A: We offer flexible detection formats tailored to your enzyme and research goals:
    • Colorimetric assays for straightforward, robust readouts.
    • Fluorometric assays for high sensitivity and multiplexing.
    • LC-MS-based assays for direct, label-free detection of substrate conversion or ligand binding.
  • Q: Can HTS accommodate very large substrate libraries?

    A: Yes. Our automated platforms can handle libraries exceeding 5,000 compounds, with reproducible control of assay conditions, ensuring high confidence in hit identification even at industrial scale.
  • Q: Can you screen customized substrate libraries?

    A: Yes, we can integrate both pre-existing and client-provided libraries into HTS workflows.
  • Q: What throughput levels are possible?

    A: We can accommodate hundreds to thousands of substrate candidates, depending on project scope.
  • Q: How reliable and reproducible are your HTS results?

    A: We use automated liquid handling, standardized assay conditions, and integrated statistical validation. Each screen is designed to minimize variability, and all results are accompanied by robust quality metrics and replicate analysis to ensure reproducibility.
  • Q: What kind of data do I receive after screening?

    A: Clients receive a comprehensive report including:
    • List of active substrates or ligands ranked by activity or specificity.
    • Kinetic parameters (if applicable) and hit validation.
    • Statistical analysis of reproducibility and signal robustness.
    • Recommendations for downstream studies, such as inhibitor screening or enzyme engineering.
  • Q: Can HTS results guide subsequent steps like enzyme engineering or inhibitor discovery?

    A: Absolutely. Our HTS workflow is designed to provide actionable insights. Identified hits can inform rational mutagenesis, assay optimization, inhibitor selection, or computational modeling—creating a seamless pipeline from screening to discovery.
  • Q: How quickly can I get results from an HTS campaign?

    A: Timelines vary based on library size and assay complexity, but automation allows weeks instead of months for comprehensive screens. Rapid data collection and real-time analysis accelerate decision-making for your project.

Reference:

  1. Fisher BF, Snodgrass HM, Jones KA, Andorfer MC, Lewis JC. Site-selective C–H halogenation using flavin-dependent halogenases identified via family-wide activity profiling. ACS Cent Sci. 2019;5(11):1844-1856. doi:10.1021/acscentsci.9b00835
