Enzyme Purification by Ion Exchange Chromatography

inquiry

Creative Enzymes offers advanced enzyme purification by ion exchange chromatography (IEC) for research, therapeutic, and industrial applications. Our services provide high-purity, concentrated enzyme preparations from complex mixtures, supporting downstream applications such as structural analysis, biochemical assays, and formulation development. By exploiting differences in the net charge of enzymes, IEC enables precise separation of isoforms and closely related proteins that are difficult to resolve by size-based methods. With our robust workflows, cutting-edge instruments, and highly trained scientists, we deliver fast, reliable, and reproducible purification outcomes while preserving enzyme activity and functional integrity.

Background and Principles: Ion Exchange Chromatography for Enzyme Separation

Ion exchange chromatography is one of the most versatile and widely used techniques for fractionating labile biological substances, including enzymes, proteins, and other biomolecules. It relies on electrostatic interactions between charged groups on the enzyme surface and oppositely charged groups immobilized on the stationary phase. IEC is particularly valuable for separating enzyme isoforms that share similar molecular weights but differ in surface charge, a feature that often arises from variations in amino acid composition or post-translational modifications.

The isoelectric point (pI) of an enzyme—defined as the pH at which the net charge of the molecule is zero—is a critical parameter for IEC design. Positively charged residues, such as lysine, arginine, and histidine, confer positive charges below certain pH values, while negatively charged residues, including aspartate and glutamate, contribute negative charges. Based on this principle, enzymes can be separated using:

Cation exchange chromatography (CIEXC): Stationary phases bear negatively charged groups that attract positively charged enzymes. CIEXC is typically performed at pH values below the enzyme's pI.
Anion exchange chromatography (AIEXC): Stationary phases bear positively charged groups that attract negatively charged enzymes. AIEXC is generally carried out at pH values above the enzyme's pI.

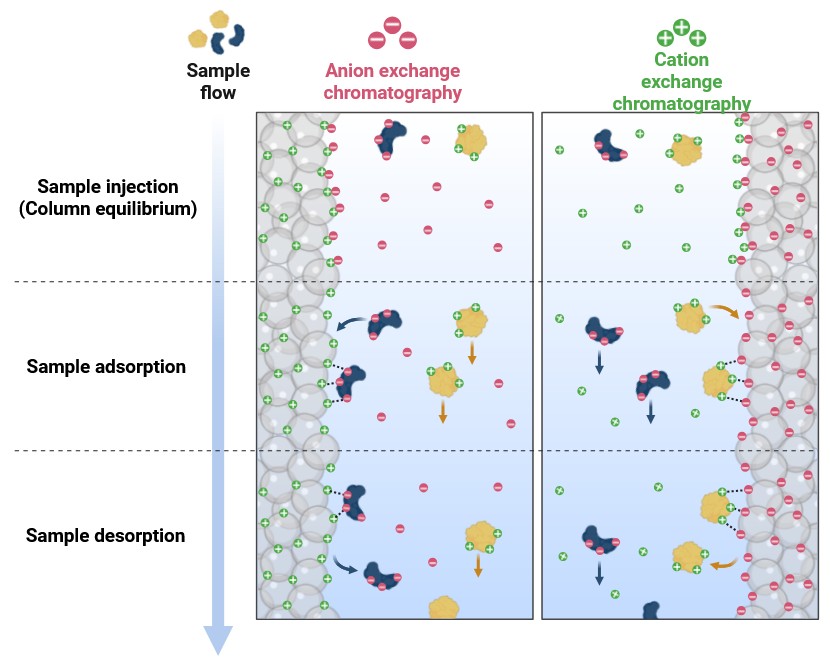

Cation and anion exchange chromatography methods Figure 1. Protein purification by ion exchange chromatography.

The ability to fine-tune elution conditions, such as pH gradients, salt concentrations, or stepwise elution, allows for highly selective recovery of target enzymes while maintaining activity, solubility, and structural stability. IEC is particularly advantageous for applications where isoenzymes, post-translational variants, or closely related proteins must be resolved.

Modern IEC utilizes high-performance resins with optimized porosity, charge density, and flow properties, which enable high-resolution separations, reproducibility, and scalability from laboratory to industrial scale. Creative Enzymes has successfully applied IEC in thousands of enzyme purification projects, achieving high yields, minimal contaminants, and maximal functional integrity.

What We Offer: Tailored Ion Exchange Chromatography Services for Enzymes

Creative Enzymes provides a full suite of IEC-based purification services, including method development, small-scale research purification, and large-scale industrial applications. Our offerings include:

Services	Description	Price
Process Design and Method Development	Determining optimal pH, ionic strength, and buffer composition for specific enzymes. Selecting cation or anion exchange resins based on enzyme charge characteristics. Designing gradient elution strategies to separate isoenzymes or variants.	Inquiry
Analytical and Preparative IEC Purification	Small-scale research-grade purification for functional studies or structural biology. Preparative-scale purification for pilot or industrial production. Integration with polishing steps, including desalting, dialysis, and size-exclusion chromatography, for maximal purity.
Activity Preservation and Stability Assurance	Gentle handling and optimized buffers to maintain enzymatic activity and structural integrity. Compatibility with labile or sensitive proteins.
Quality Control and Characterization	SDS-PAGE, HPLC, and UV-visible spectrophotometry for purity verification. Activity assays tailored to enzyme type and application. Optional endotoxin removal and lyophilization for industrial or clinical uses.

Selecting the Optimal IEC Approach

The choice of cation vs. anion exchange, resin type, and elution method depends on multiple factors:

Enzyme isoelectric point and charge distribution
Presence of isoforms or post-translational modifications
Solubility and stability under varying pH and ionic conditions
Desired purity, yield, and downstream application requirements
Project scale, timeline, and budget constraints

Creative Enzymes evaluates all of these factors before initiating purification to ensure maximum efficiency, reproducibility, and product quality.

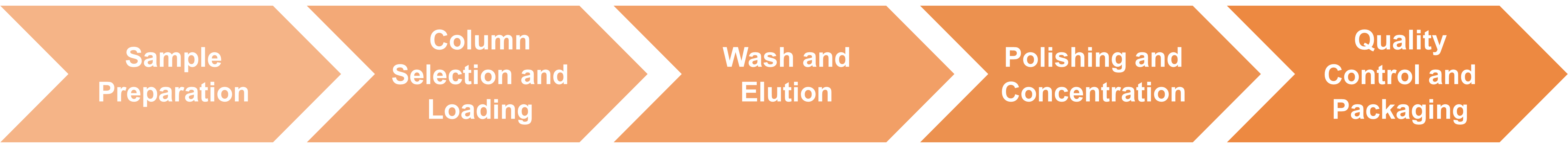

Service Workflow: From Sample Preparation to High-Purity Enzyme Recovery

Ion exchange chromatography workflow for enzyme purification

Why Choose Creative Enzymes for Ion Exchange Chromatography

Customized Method Development

We tailor every IEC workflow to the unique properties of your enzyme.

High Purity and Recovery

Optimized conditions maximize yield while maintaining enzymatic activity.

State-of-the-Art Instrumentation

Modern chromatography systems and resins ensure reproducible and high-resolution separations.

Scalable Solutions

Services range from research-grade purification to industrial-scale production.

Expertise and Experience

Thousands of IEC purification projects completed for diverse enzymes and hosts.

Comprehensive Quality Assurance

SDS-PAGE, HPLC, activity assays, and optional endotoxin removal ensure product quality.

Case Studies: Representative Projects in Ion Exchange Chromatography

Case 1: Separation of Isoenzymes from Plant Extracts

Background:

A research institute required purification of multiple isoforms of a plant-derived hydrolase for comparative enzymatic and kinetic characterization. Preliminary size-exclusion chromatography failed to resolve the isoforms due to their nearly identical molecular weights. The crude extract also contained pigments, phenolic compounds, and host proteins that interfered with downstream spectroscopic analysis.

Strategy:

After determining the isoelectric points of the isoenzymes, anion exchange chromatography was selected and conducted at a pH above their pI values. Buffer composition was optimized to enhance binding selectivity while maintaining enzyme stability. A controlled stepwise salt gradient was applied to exploit subtle differences in surface charge among the isoforms. Careful monitoring of conductivity and UV absorbance enabled precise fraction collection.

Outcome:

The individual isoenzymes were successfully separated with purities exceeding 90%, and cross-contaminating plant proteins were effectively removed. Enzymatic activity assays confirmed full retention of catalytic function. The purified isoforms were subsequently used for structural comparison and substrate specificity studies, enabling the client to publish reproducible biochemical data.

Case 2: Industrial-Scale Purification of Recombinant Protease

Background:

A biotechnology company required kilogram-scale batches of a recombinant microbial protease for formulation and stability testing in industrial applications. The crude fermentation broth contained host cell proteins, nucleic acids, and metabolic by-products. The client required high recovery rates and consistent batch-to-batch reproducibility to support pilot-scale production.

Strategy:

Cation exchange chromatography was performed at a pH below the protease pI to ensure strong binding to the negatively charged resin. Process parameters, including flow rate and salt gradient slope, were optimized to maximize binding capacity while minimizing processing time. Following IEC, ultrafiltration was implemented for buffer exchange and concentration. Process validation included repeated pilot runs to confirm scalability and consistency.

Outcome:

The final enzyme preparation achieved purity levels above 95% with recovery rates exceeding 85%. Proteolytic activity remained stable throughout processing and subsequent storage trials. The scalable IEC process enabled reliable batch production, providing the client with sufficient material for formulation development and pre-commercial evaluation.

FAQs: Ion Exchange Chromatography for Enzyme Purification

Q: What types of enzymes are suitable for ion exchange chromatography?

A: IEC is suitable for virtually all enzymes with net charges at a given pH, including recombinant and native proteins, glycosylated or non-glycosylated, soluble or partially soluble, and multi-subunit complexes.
Q: How do I choose between cation and anion exchange?

A: Choice depends on the enzyme's isoelectric point (pI). Enzymes below their pI are positively charged and suited for CIEXC, whereas enzymes above their pI are negatively charged and purified by AIEXC.
Q: Does IEC affect enzyme activity?

A: When conducted under optimized pH and ionic conditions, IEC preserves enzyme activity. We also add stabilizing agents when necessary to maintain functionality during purification.
Q: Can IEC separate isoenzymes or post-translational variants?

A: Yes. IEC exploits subtle differences in surface charge to resolve isoforms or modified variants that are indistinguishable by size-based methods.
Q: What is the typical purity and recovery achievable?

A: Purity often exceeds 90–95%, with recovery rates ranging from 70–95%, depending on enzyme characteristics and sample complexity.
Q: Can this service be scaled for industrial production?

A: Yes. IEC protocols can be scaled from milligram research-level purification to multi-liter preparative or industrial-scale processes while maintaining reproducibility and activity.
