Random Mutagenesis Library Construction

inquiry

At Creative Enzymes, our Random Mutagenesis Library Construction service lays the foundation for directed evolution and protein optimization. By applying precise and diversified random mutagenesis strategies, we construct comprehensive mutant libraries that capture a wide range of amino acid substitutions and structural variations. These libraries serve as invaluable resources for identifying enzyme variants with improved catalytic efficiency, altered substrate scope, or enhanced stability.

Our approach integrates state-of-the-art mutagenesis technologies, meticulous library quality control, and tailored design strategies—ensuring your enzyme engineering projects start on the strongest possible footing.

How Mutagenesis Libraries Are Constructed

Enzyme engineering relies on exploring sequence diversity to discover variants with desirable biochemical properties. Mutagenesis library construction is a critical first step in this process, enabling researchers to probe functional landscapes beyond what rational design alone can achieve.

Traditional site-directed mutagenesis provides precision but limited diversity, whereas random mutagenesis techniques such as error-prone PCR, saturation mutagenesis, and recombination-based approaches enable high-throughput exploration of sequence space. A well-constructed mutant library maximizes both the diversity and representativeness of enzyme variants, offering a robust platform for subsequent screening and selection.

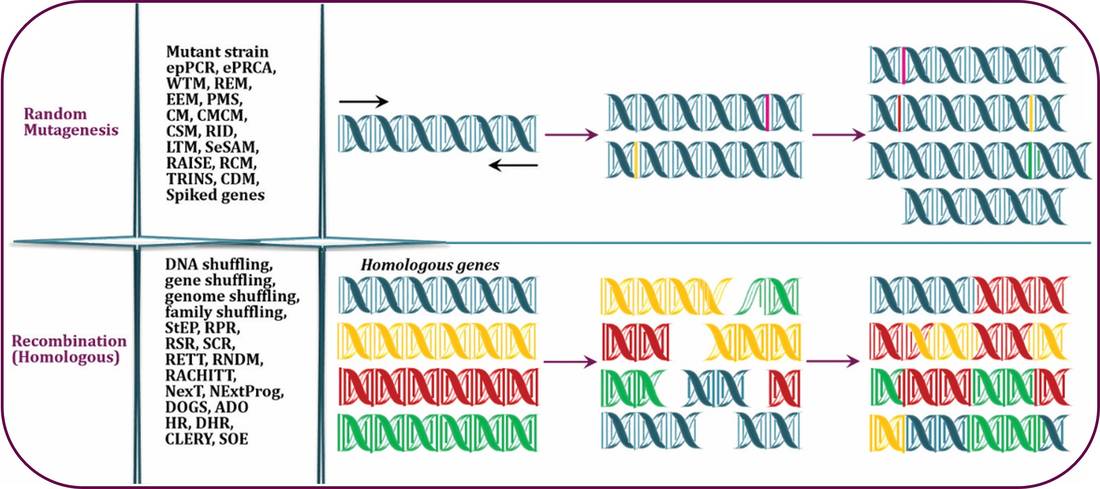

Use random mutagenesis and DNA shuffling methods to construct libraries of gene variants Figure 1. Random mutagenesis and DNA shuffling methods for creating libraries of gene variants. (Adapted from Iqbal and Sadaf, 2022)

At Creative Enzymes, we apply a combination of empirical expertise and data-driven design to build libraries that meet both research and industrial needs—balancing diversity, quality, and functional relevance.

Mutagenesis Library Construction: Services and Capacities

Our mutagenesis library construction service provides a comprehensive suite of techniques and tailored options designed to meet diverse enzyme engineering needs. Key offerings include:

Error-prone PCR Libraries

Generate broad sequence diversity by introducing controlled random mutations throughout the target gene. Mutation frequency is tunable to balance exploration of sequence space with library manageability.

Site-Saturation Mutagenesis

Precisely replace specific amino acids with all possible alternatives at selected positions, enabling systematic exploration of active sites, substrate-binding regions, or structurally important residues.

DNA Shuffling

Recombine homologous genes or gene fragments to create hybrid variants that combine beneficial traits, accelerating the discovery of superior enzyme variants.

Combinatorial Mutagenesis

Introduce simultaneous variations across multiple positions or domains, allowing efficient sampling of synergistic effects that single-site mutagenesis might miss.

Customized Library Design

Leverage enzyme structural data, sequence conservation analysis, or known functional motifs to design libraries that maximize the probability of obtaining high-performing variants.

Library Validation and Quality Control

Assess mutation rate, diversity, and sequence coverage using Sanger sequencing or next-generation sequencing (NGS). Reports include mutation distribution, codon usage, and statistical estimates of library completeness.

Expression-ready Libraries

Libraries are cloned into expression vectors compatible with a range of hosts (E. coli, yeast, or other systems), ensuring seamless transition to downstream screening or assay workflows.

Scalable Library Sizes

From focused small libraries for targeted exploration to large-scale libraries containing up to 10⁸ variants, allowing flexibility depending on project goals and screening capacity.

Support for Functional Design Constraints

We can incorporate considerations such as preserving enzyme stability, avoiding deleterious motifs, or maintaining cofactor binding sites during library construction.

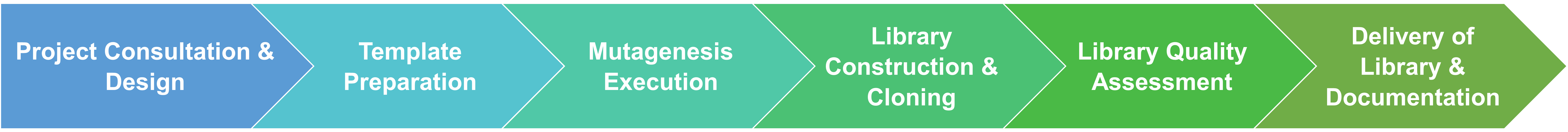

Service Workflow

Service workflow for mutagenesis library construction for enzyme engineering

Service Features

Parameter	Description
Library Size	Up to 10⁸ variants depending on strategy
Mutation Rate Control	Tunable from 0.1% to 3% per gene
Vector Options	Broad host range (E. coli, yeast, or mammalian)
Sequencing Verification	Random sampling (≥ 20 clones) or deep sequencing
Turnaround Time	Typically 3–6 weeks
Deliverables	Mutant library plasmid pool, QC report, and mutation profile summary

Next Steps in Enzyme Engineering

After library construction, Creative Enzymes offers two complementary services to advance your enzyme evolution workflow:

Activity Assay Design for Mutant Library Evaluation: This module focuses on the development and optimization of sensitive, high-throughput assays tailored to your enzyme's catalytic mechanism. We design quantitative and reproducible activity assays to efficiently evaluate large mutant libraries and identify promising variants.
Screening of Random Mutagenesis Enzyme Libraries: Building on the constructed library and validated assays, this service performs high-throughput screening and selection to isolate mutants with improved properties. Our integrated screening systems accelerate discovery and ensure reliable identification of top-performing enzyme candidates.

Inquiry

Why Choose Us

Comprehensive Technology Portfolio

Access to multiple mutagenesis platforms for tailored diversity generation.

Scientific Rigor

Each step optimized and validated under strict quality control standards.

High-Quality Libraries

Verified diversity and fidelity ensure functional exploration without redundancy.

Flexible Customization

From single-site saturation to full-length randomization.

Experienced Team

Deep expertise in enzyme evolution and protein structure-function analysis.

End-to-End Support

Seamless integration with downstream screening and assay development services.

Case Studies and Success Stories

Case 1: Enhancing Lipase Thermostability

Client Need:

A biotechnology company specializing in detergent formulations needed a lipase variant capable of withstanding prolonged exposure to high washing temperatures. The existing enzyme exhibited rapid denaturation above 50°C, limiting its industrial applicability and cost-efficiency.

Our Approach:

We constructed a high-diversity mutant library of approximately 10⁸ variants using optimized error-prone PCR. Mutation frequency was fine-tuned to introduce moderate random diversity while preserving overall structural integrity. The resulting library was cloned into an E. coli expression system and validated by sequencing for even mutation distribution.

Outcome:

Subsequent screening identified several lipase mutants with significantly improved thermal tolerance. The best-performing variant displayed a 12°C higher melting temperature (Tm) and maintained over 80% activity after two hours at 60°C. The improved enzyme demonstrated excellent compatibility with detergent components, extending product shelf life and operational stability under high-temperature washing conditions.

Case 2: Expanding Substrate Range of a Transaminase

Client Need:

A pharmaceutical client sought to broaden the substrate scope of a transaminase enzyme used in chiral amine synthesis. The natural enzyme displayed high specificity toward small aliphatic amines but poor activity toward bulkier aromatic substrates, restricting its use in complex intermediate production.

Our Approach:

We designed a targeted mutagenesis strategy focused on residues lining the substrate-binding pocket. Using site-saturation mutagenesis, all possible amino acid substitutions were introduced at five key positions predicted by structural modeling to influence substrate accommodation. The resulting focused library was constructed, verified for mutation completeness, and prepared for high-throughput screening.

Outcome:

Library screening revealed multiple mutants with broadened substrate acceptance. The top variant exhibited a threefold increase in catalytic efficiency toward aromatic amines without compromising stereoselectivity. This breakthrough enabled the client to streamline the synthesis of several chiral pharmaceutical intermediates, reducing process costs and expanding their biocatalytic manufacturing capabilities.

FAQs: Mutagenesis Library Construction

Q: How do you choose the right mutagenesis strategy?

A: We assess your enzyme's structure, sequence, and project goals to recommend the optimal approach, whether broad diversification (error-prone PCR) or targeted variation (site-saturation or combinatorial mutagenesis).
Q: Can you use my plasmid or gene?

A: Yes. We can work directly with your plasmid or gene fragments and optimize sequences for expression if needed.
Q: How is library diversity verified?

A: We perform random clone sequencing or next-generation sequencing to confirm mutation rates, distribution, and overall diversity.
Q: Which host systems are supported?

A: Common hosts include E. coli, Pichia pastoris, and yeast strains, with flexibility to adapt to other systems as required.
Q: Do you test library expression?

A: Optional pilot expression validation is available to ensure variants are soluble, correctly folded, and ready for screening.
Q: How is intellectual property handled?

A: All client data, sequences, and results are confidential. Intellectual property remains fully with the client.
Q: What is the typical turnaround and delivery format?

A: Projects usually take 3–6 weeks. Libraries are delivered as plasmid pools or transformed cells, accompanied by a technical report detailing mutation profiles and QC results.
Q: Can multiple mutagenesis strategies be combined?

A: Yes. For complex projects, we integrate approaches to maximize diversity while focusing on functionally relevant residues.
Q: How do you ensure reproducibility?

A: All steps follow strict SOPs with detailed documentation, ensuring traceability and reproducibility for research or regulatory purposes.
Q: Can you assist with downstream screening or assays?

A: Yes. We provide assay design and high-throughput screening services to efficiently identify high-performing variants.

Reference:

Iqbal Z, Sadaf S. A patent-based consideration of latest platforms in the art of directed evolution: a decade long untold story. Biotechnology and Genetic Engineering Reviews. 2022;38(2):133-246. doi:10.1080/02648725.2021.2017638
